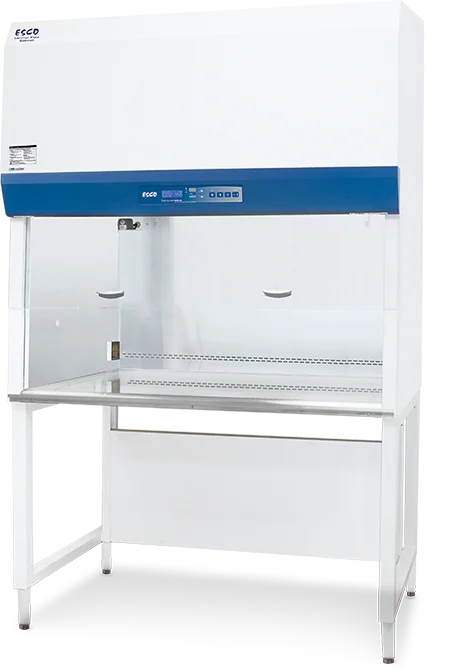

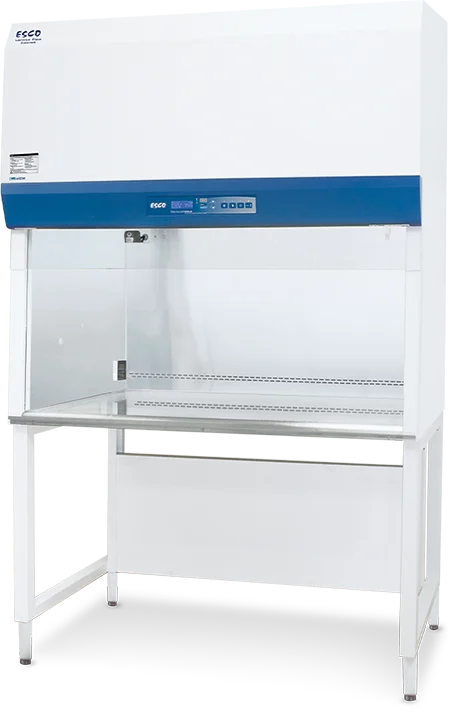

Airstream® Gen 3 Vertical Laminar Flow Cabinet

While others rely on traditional PSC motors, the Esco Airstream® Gen 3 Vertical Laminar Flow Cabinet is the only vertical-type clean bench in the market that uses Direct Current Electronically Commutated Motor (DC ECM) technology. Reducing energy costs by up to 70%, these clean benches are the greenest ones yet.

The secret to achieving energy savings through ECM technology lies in its high electrical efficiency and ability to run precisely on programmed speeds. Enjoy low heat and noise emission as well with the Esco Airstream® Gen 3 Vertical Laminar Flow Cabinet.

Esco’s laminar air flow cabinet is a product of robust engineering combined with strategic ergonomic design. It provides long-term reliability and ultimate user comfort making it ideal for non-hazardous applications that need a sterile environment

Applications:
  • Microbiology (non-pathogenic)
  • Forensics
  • Sterile product compounding
Request Quote
SKU: LVG-F Category: Tags: , , , , , , Brand:
Share

Features

High-Quality Construction

  • Stainless steel worktop
  • Spill-retaining design will ensure containment of accidental liquid spills

Quiet Operation

  • Comfortable low noise at 52 dBA
  • Reduce fatigue and improve work concentration

ULPA Filter

  • 10x Filtration efficiency of HEPA filter Creates ISO Class 3 work zone instead of industry-standard ISO Class 5

Energy-efficient

  • Powered by latest generation DC ECM blower, that is more efficient than legacy ECM and VFD motors
  • 70% Energy savings compared to AC motor
  • Stable airflow, despite building voltage fluctuations & filter loading

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
Interior Height (2.25ft / 0.7m), Glass Side Wall, Fixed Sash Window
2120374LVG-3AG-F8Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (3ft/0.9m W, 2.25 ft / 0.7 m H), 230 VAC, 50/60 Hz
2120369LVG-4AG-F8Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (4ft/1.2m W, 2.25 ft / 0.7 m H), 230 VAC, 50/60 Hz
2120375LVG-5AG-F8Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (5ft/1.5m W, 2.25 ft / 0.7 m H), 230 VAC, 50/60 Hz
2120407LVG-6AG-F8Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (6ft/1.8m W, 2.25 ft / 0.7 m H), 230 VAC, 50/60 Hz
2120435LVG-3AG-F9Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (3ft/0.9m W, 2.25 ft / 0.7 m H), 115 VAC, 50/60 Hz
2120437LVG-4AG-F9Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (4ft/1.2m W, 2.25 ft / 0.7 m H), 115 VAC, 50/60 Hz
2120439LVG-5AG-F9Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (5ft/1.5m W, 2.25 ft / 0.7 m H), 115 VAC, 50/60 Hz
2120441LVG-6AG-F9Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (6ft/1.8m W, 2.25 ft / 0.7 m H), 115 VAC, 50/60 Hz
Interior Height (3ft / 0.9m), Glass Side Wall, Fixed Sash Window
2120555LVG-4CG-F8Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (4ft/1.2m W, 3ft/0.9m H), 230 VAC, 50/60 Hz
2120559LVG-6CG-F8Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (6ft/1.8m W, 3ft/0.9m H), 230 VAC, 50/60 Hz
2120595LVG-4CG-F9Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (4ft/1.2m W, 3ft/0.9m H), 115 VAC, 50/60 Hz
2120599LVG-6CG-F9Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (6ft/1.8m W, 3ft/0.9m H), 115 VAC, 50/60 Hz
Interior Height (2.25ft / 0.7m), Glass Side Wall, Manual Sliding Sash Window
2120792LVG-3AG-S8Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (3ft/0.9m W, 2.25 ft / 0.7 m H), Sliding Sash, 230 VAC, 50/60 Hz
2120701LVG-4AG-S8Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (4ft/1.2m W, 2.25 ft / 0.7 m H), Sliding Sash, 230 VAC, 50/60 Hz
2120755LVG-5AG-S8Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (5ft/1.5m W, 2.25 ft / 0.7 m H), Sliding Sash, 230 VAC, 50/60 Hz
2120703LVG-6AG-S8Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (6ft/1.8m W, 2.25 ft / 0.7 m H), Sliding Sash, 230 VAC, 50/60 Hz
2120795LVG-3AG-S9Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (3ft/0.9m W, 2.25 ft / 0.7 m H), Sliding Sash, 115 VAC, 50/60 Hz
2120761LVG-4AG-S9Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (4ft/1.2m W, 2.25 ft / 0.7 m H), Sliding Sash, 115 VAC, 50/60 Hz
2120768LVG-5AG-S9Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (5ft/1.5m W, 2.25 ft / 0.7 m H), Sliding Sash, 115 VAC, 50/60 Hz
2120763LVG-6AG-S9Vertical Laminar Flow Cabinet, Gen 3, Glass Sides (6ft/1.8m W, 2.25 ft / 0.7 m H), Sliding Sash, 115 VAC, 50/60 Hz
Interior Height (2.25ft / 0.7m), Stainless Steel Side Wall, Fixed Sash Window
2120381LVS-3AG-F8Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (3ft/0.9m W, 2.25 ft / 0.7 m H), 230 VAC, 50/60 Hz
2120382LVS-4AG-F8Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (4ft/1.2m W, 2.25 ft / 0.7 m H), 230 VAC, 50/60 Hz
2120383LVS-5AG-F8Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (5ft/1.5m W, 2.25 ft / 0.7 m H), 230 VAC, 50/60 Hz
2120384LVS-6AG-F8Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (6ft/1.8m W, 2.25 ft / 0.7 m H), 230 VAC, 50/60 Hz
2120443LVS-3AG-F9Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (3ft/0.9m W, 2.25 ft / 0.7 m H), 115 VAC, 50/60 Hz
2120445LVS-4AG-F9Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (4ft/1.2m W, 2.25 ft / 0.7 m H), 115 VAC, 50/60 Hz
2120447LVS-5AG-F9Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (5ft/1.5m W, 2.25 ft / 0.7 m H), 115 VAC, 50/60 Hz
2120449LVS-6AG-F9Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (6ft/1.8m W, 2.25 ft / 0.7 m H), 115 VAC, 50/60 Hz
Interior Height (3ft / 0.9m), Stainless Steel Side Wall, Fixed Sash Window
2120565LVS-4CG-F8Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (4ft/1.2m W, 3ft/0.9m H), 230 VAC, 50/60 Hz
2120569LVS-6CG-F8Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (6ft/1.8m W, 3ft/0.9m H), 230 VAC, 50/60 Hz
2120686LVS-8CG-F8Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (8ft/2.4m W, 3ft/0.9m H), 230 VAC, 50/60 Hz
2120605LVS-4CG-F9Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (4ft/1.2m W, 3ft/0.9m H), 115 VAC, 50/60 Hz
2120609LVS-6CG-F9Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (6ft/1.8m W, 3ft/0.9m H), 115 VAC, 50/60 Hz
2120687LVS-8CG-F9Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (8ft/2.4m W, 3ft/0.9m H), 115 VAC, 50/60 Hz
Interior Height (2.25ft / 0.7m), Stainless Steel Side Wall, Manual Sliding Sash Window
2120796LVS-3AG-S8Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (3ft/0.9m W, 2.25 ft / 0.7 m H), 230 VAC, 50/60 Hz
2120759LVS-4AG-S8Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (4ft/1.2m W, 2.25 ft / 0.7 m H), Sliding Sash, 230 VAC, 50/60 Hz
2120766LVS-5AG-S8Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (5ft/1.5m W, 2.25 ft / 0.7 m H), Sliding Sash, 230 VAC, 50/60 Hz
2120760LVS-6AG-S8Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (6ft/1.8m W, 2.25 ft / 0.7 m H), Sliding Sash, 230 VAC, 50/60 Hz
2120797LVS-3AG-S9Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (3ft/0.9m W, 2.25 ft / 0.7 m H), 115 VAC, 50/60 Hz
2120762LVS-4AG-S9Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (4ft/1.2m W, 2.25 ft / 0.7 m H), Sliding Sash, 115 VAC, 50/60 Hz
2120767LVS-5AG-S9Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (5ft/1.5m W, 2.25 ft / 0.7 m H), Sliding Sash, 115 VAC, 50/60 Hz
2120764LVS-6AG-S9Vertical Laminar Flow Cabinet, Gen 3, Stainless Steel Sides (6ft/1.8m W, 2.25 ft / 0.7 m H), Sliding Sash, 115 VAC, 50/60 Hz

Accessories

Item CodeModel CodeDescription
5170251UV-15AUV Lamp for 2ft, 3ft Cabinet
5170255UV-30AUV Lamp for 4ft, 5ft, 6ft Cabinets
5170595FC-LVG/S-3APolycarbonate Front Cover for LVG/LVS-3A
5170584FC-LVG/S-4APolycarbonate Front Cover for LVG/LVS-4A
5170596FC-LVG/S-5APolycarbonate Front Cover forLVG/LVS-5A
5170597FC-LVG/S-6APolycarbonate Front Cover for LVG/LVS-6A
5170598FC-LVG/S-4CPolycarbonate Front Cover for LVG/LVS-4C
5170599FC-LVG/S-6CPolycarbonate Front Cover for LVG/LVS-6C
5130155SPC-3A0 Gen 2Support Stand with Caster Wheels (Height 28”) for 3ft cabinets
5130152SPC-4A0 Gen 2Support Stand with Caster Wheels (Height 28”) for 4ft cabinets
5130162SPC-5A0 Gen 2Support Stand with Caster Wheels (Height 28”) for 5ft cabinets
5130154SPC-6A0 Gen 2Support Stand with Caster Wheels (Height 28”) for 6ft cabinets
5130165SPC-3B0 Gen 2Support Stand with Caster Wheels (Height 34”) for 3ft cabinets
5130166SPC-4B0 Gen 2Support Stand with Caster Wheels (Height 34”) for 4ft cabinets
5130167SPC-5B0 Gen 2Support Stand with Caster Wheels (Height 34”) for 5ft cabinets
5130168SPC-6B0 Gen 2Support Stand with Caster Wheels (Height 34”) for 6ft cabinets
5130170SAL-3A0 Gen 2Support Stand with Leveling Feet – I (Height 28”) for 3ft cabinets
5130134SAL-4A0 Gen 2Support Stand with Leveling Feet – I (Height 28”) for 4ft cabinets
5130171SAL-5A0 Gen 2Support Stand with Leveling Feet – I (Height 28”) for 5ft cabinets
5130172SAL-6A0 Gen 2Support Stand with Leveling Feet – I (Height 28”) for 6ft cabinets
5130174SAL-3B0 Gen 2Support Stand with Leveling Feet – I (Height 34”) for 3ft cabinets
5130175SAL-4B0 Gen 2Support Stand with Leveling Feet – I (Height 34”) for 4ft cabinets
5130176SAL-5B0 Gen 2Support Stand with Leveling Feet – I (Height 34”) for 5ft cabinets
5130177SAL-6B0 Gen 2Support Stand with Leveling Feet – I (Height 34”) for 6ft cabinets
5130050STL-3A0Telescoping Stand with Leveling Feet (28″ to 34″) for 3ft cabinets
5130051STL-4A0Telescoping Stand with Leveling Feet (28″ to 34″) for 4ft cabinets
5130052STL-5A0Telescoping Stand with Leveling Feet (28″ to 34″) for 5ft cabinets
5130053STL-6A0Telescoping Stand with Leveling Feet (28″ to 34″) for 6 ft cabinets
5131150STL-8A0 Gen 2Telescoping Stand with Leveling Feet (28″ to 34″) for 8 ft cabinets
5130055STC-3AOTelescoping Stand with Caster Wheels (28″ to 34″) for 3ft cabinets
5130056STC-4AOTelescoping Stand with Caster Wheels (28″ to 34″) for 4ft cabinets
5130057STC-5AOTelescoping Stand with Caster Wheels (28″ to 34″) for 5ft cabinets
5130058STC-6AOTelescoping Stand with Caster Wheels (28″ to 34″) for 6ft cabinets
5131146STC-8AO Gen 2Telescoping Stand with Caster Wheels (28″ to 34″) for 8ft cabinets
5090001PF-2Prefilter, 565 X 500mm
5090002PF-3Prefilter, 717 X 500mm
5090003PF-4Prefilter, 870 X 500mm

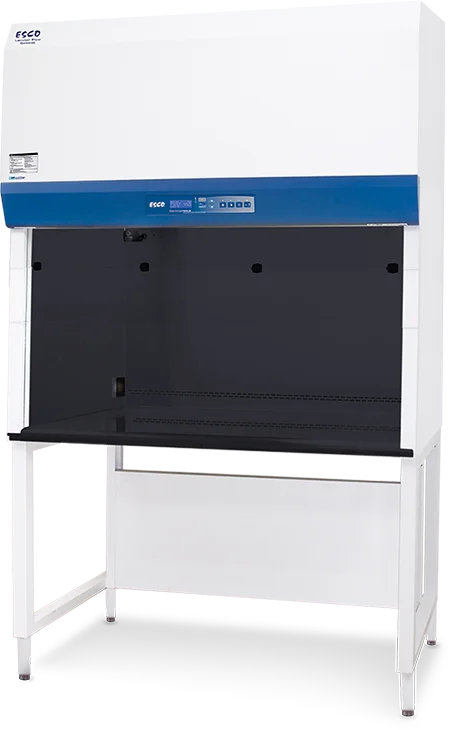

Airstream® LFC with Black Interior Brochure
