Precision clamping devices

Request Quote
Categories: ,

Suitable for regular and irregularly shaped samples. They can be used universally in the QATM adaptations (rotating device, Easy Adaption horizontal and vertical as well as the clamping arm).

Can be installed directly on:

  • Easy adaption vertical
  • Easy adaption horizontal
  • Rotation device type RD1 and RD2

Accessories

  • Easy clamping plate S with rotating function
  • Easy clamping plate S

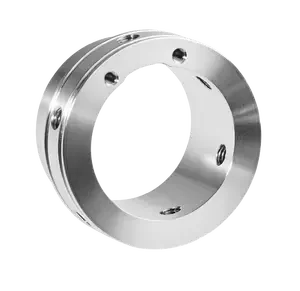

Sample Holder Standard (open)

tandard-closed-einzelne-produkte



Product Advantages

  • For round or irregular samples
  • 3-point tension
  • Up to 6 fixing screws
  • Open for long, large round samples up to Ø 40 mm
  • Adapter Ø 50 mm

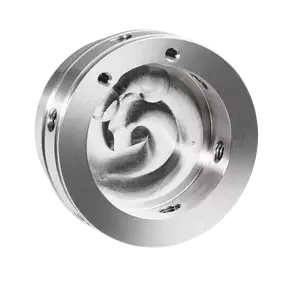

Sample holder standard (closed)

Product Advantages

  • For round or irregular samples
  • 3-point tension
  • Up to 6 mounting screws
  • with fixed stop - depth 15 mm
  • for short, large round samples up to Ø 40 mm
  • Adapter Ø 50 mm

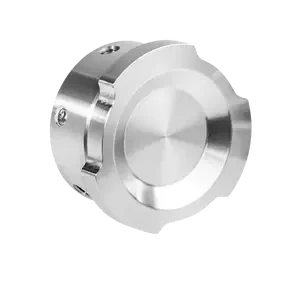

Sample Holder Flex

Product Advantages

  • For round or irregular samples
  • 3-point tension
  • Up to 6 fixing screws
  • For installation into grinding and polishing machines
  • For specimens up to Ø 40 mm - depth 21 mm
  • Adapter Ø 50 mm

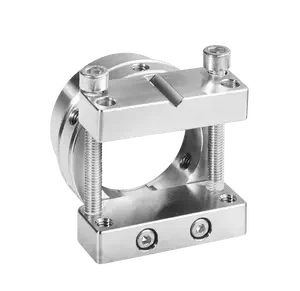

Sample Holder Parallel clamping vice (open)

Product Advantages

  • Parallel clamping jaws
  • Variable span
  • for flat samples
  • for samples up to Ø 40 mm
  • Adapter Ø 50 mm

Sample Holder Parallel Clamping Vice (closed)

Product Advantages

  • Parallel clamping jaws
  • Variable span
  • for flat samples
  • with fixed stop, depth 27 mm
  • for samples up to Ø 40 mm
  • Adapter Ø 50 mm

Drop Shape Sample Holder

Product Advantages

  • For round or irregular samples (Ø 13 - Ø 40 mm)
  • 12 mm clamping depth
  • 3-point tension
  • Adapter Ø 50 mm
