rockwell-hardness-tester

Qness 150 RCS

Request Quote
Categories: ,

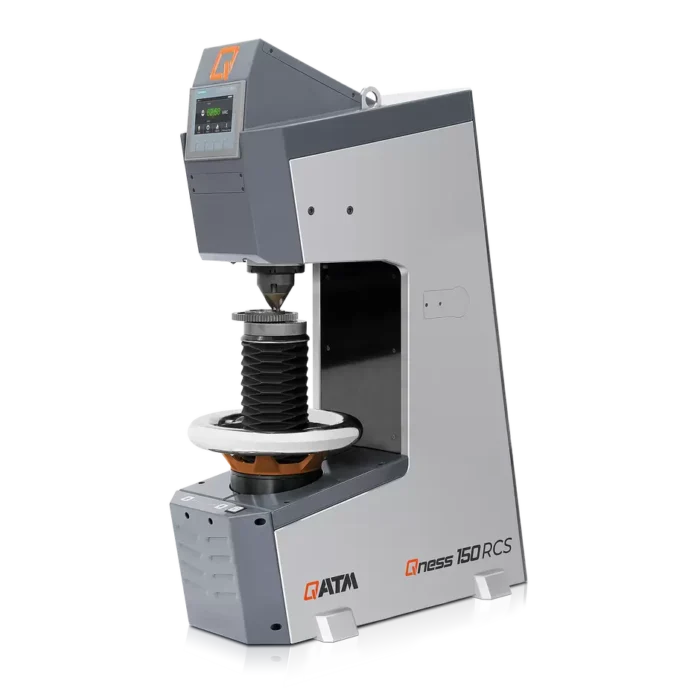

Qness 150 RCS

150 RCSProduct Advantages



  • Extremely fast hardness testing cycle – under 3 seconds
  • Ultra-modern technology, innovative design
  • Innovative Siemens S7 controls

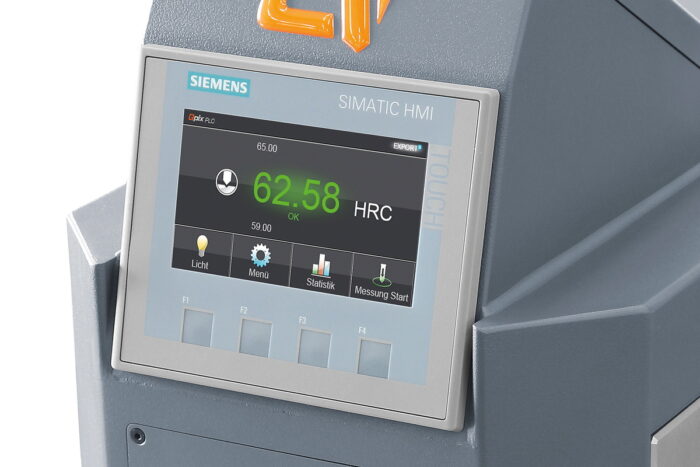

  • Siemens 4“ touch display
  • Work room illumination
  • Data output via RS232 interface
  • 2 load ranges available: HRC or HBT 2.5/62.5 (more on request)
  • Snug-fit roller-bearing spindle guide
  • Can be integrated into production lines for automationQatm
Test method Qness 150 RCS: HRC
Qness 60 RCS: HBT 2.5
Test force area Qness 150 RCS: 150 kg (1471.5 N)
Qness 60 RCS: 62.5 kg (613.1 N)
Height adjustment Handwheel

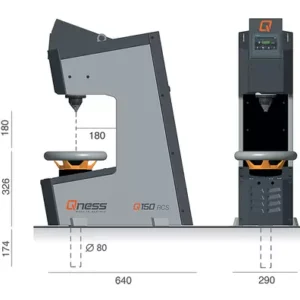

Test height
horizontal reach		 180 mm / 180 mm
Test anvil ø 100 mm
Weight of basic device 120 kg
Interfaces 1 x RS232 C, 1 x RJ45 (Ethernet)
Power supply 230~1/N/PE, 110~1/N/PE
Max. power consumption ~ 360 W
Accessories and Options
General Penetrator (Rockwell, Brinell)
Inline - solution to be agreed
Options Customised devices, customised test anvil, pro bus, sorting lamps, flashlight
