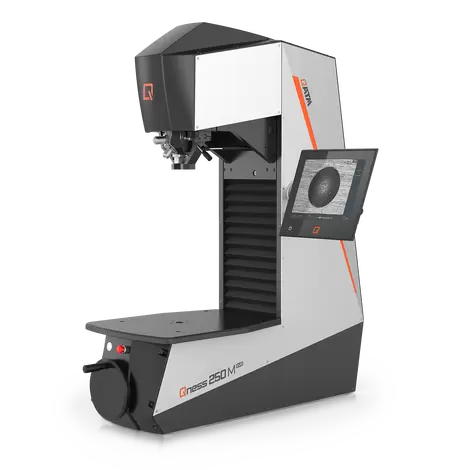

Qness 250 / 750 / 3000 CS/C EVO

The new Brinell / Knoop / Rockwell / Vickers hardness tester series EVO by QATM combines extremely short cycle times with maximum precision.

The characteristic “C” shaped machine frame gives the CS and C versions of the Qness 250/750/3000 EVO series their name.

The proven concept with fixed test head and up/down moving spindle has been standard in hardness testing for many decades and is ideally suited for small test pieces – as model “C” for component heights up to a maximum of 395 mm and as an even more compact model “CS” with 175 mm maximum test height.

Test Table Height Adjustment

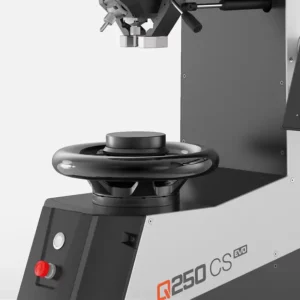

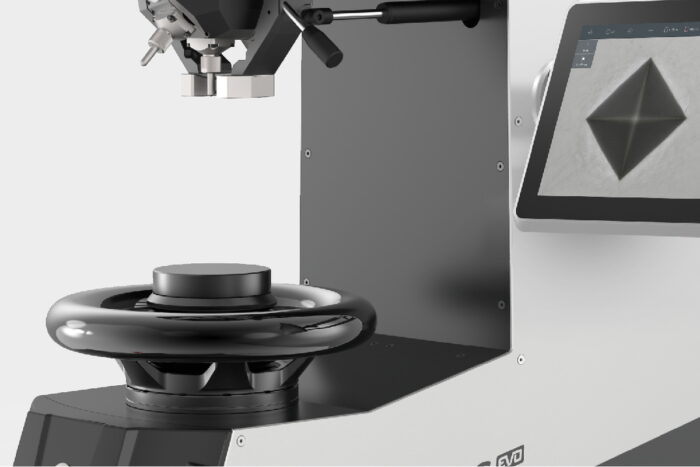

via stable, ultra-precise roller-bearing spindle guide. Solid, no-maintenance structure with a sophisticated black chrome-plated handwheel. All Brinell / Knoop / Rockwell / Vickers hardness tester models of the EVO series are available with a Ø25 mm table mount (optional ¾" adapter available).

Test Table Height Adjustment

Swiveling Downholder

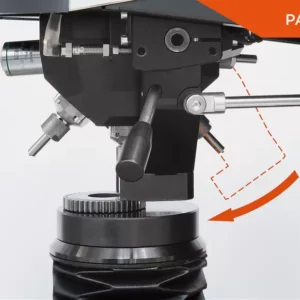

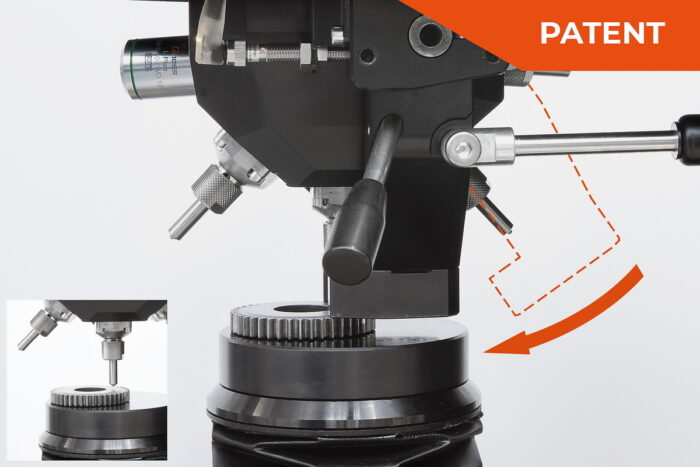

No long tool changeovers for inaccessible test positions. The downholder can be swivelled in and out via manual or motorized action, as required. Furthermore, the clamping elements can be changed easily and adapted to suit the customer‘s component.

Swiveling Downholder

Wide Range of Test Tables and Prism Anvils

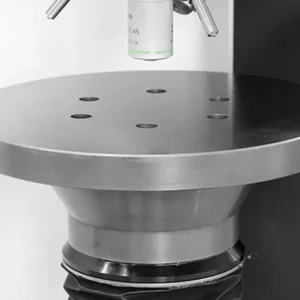

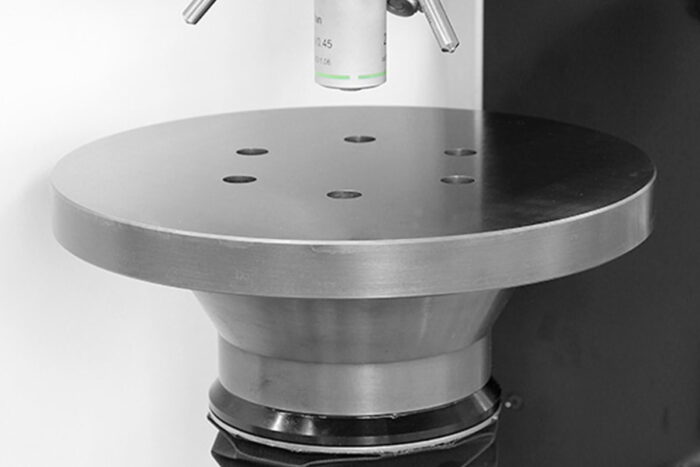

The wide range of available test anvils and prisms enable hardness testing to be conducted on unusually large or spherical items, and on test objects with an uneven test surface.

Wide Range of Test Tables and Prism Anvils

2-POSITION TOOL HOLDER

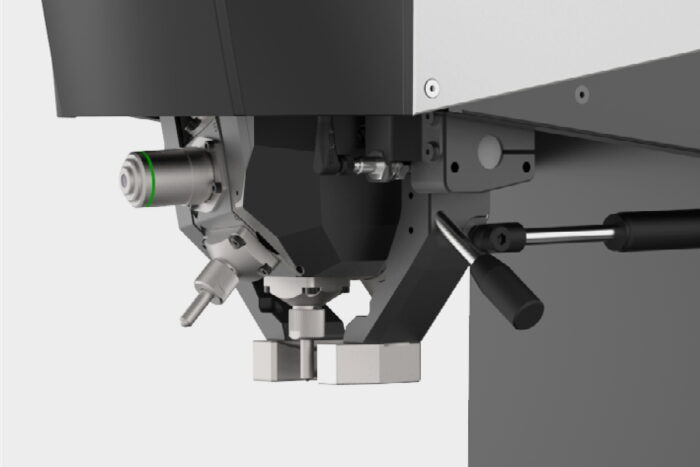

All 250/750/3000 hardness testers of the EVO series are equipped as standard with clamping for 2 tools – simple and affordable with room for a test head and a lens or XLED – ideal for unchanging testing requirements

Rapid Indenter Changing system

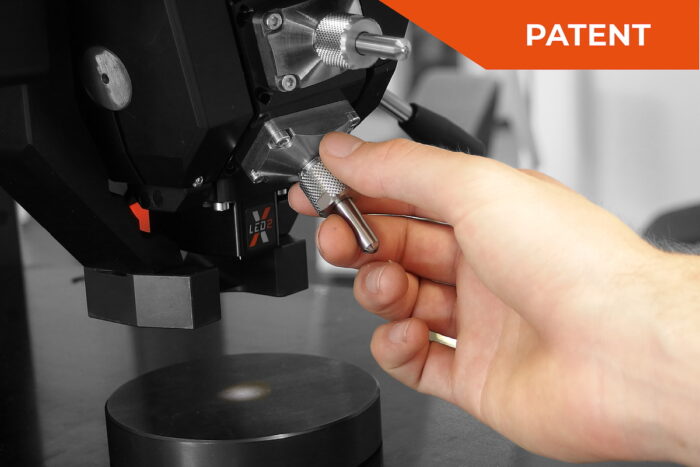

Uniquely simple, tool-free indenter changes due to indenter quick-release mechanism.

Brinell / Knoop / Rockwell / Vickers Hardness Tester CS EVO

Supported test methods	Brinell, Vickers, Rockwell, Knoop, Plastics
Test force range	Model 250 CS: 1 - 250 kg (9.81 - 2450 N) Model 750 CS: 0.3 – 750 kg (2.94 – 7358 N) Model 3000 CS: 0.3 - 3000 kg (2.94 - 29430 N)
Height adjustment	manual / spindle
Test height / Throat depth	175 / 220 mm
Test anvil	ø 100 mm
Max. work piece weight	"unlimited"
Weight basic machine	250 kg
Test sequence	fully automatic / electronic force control

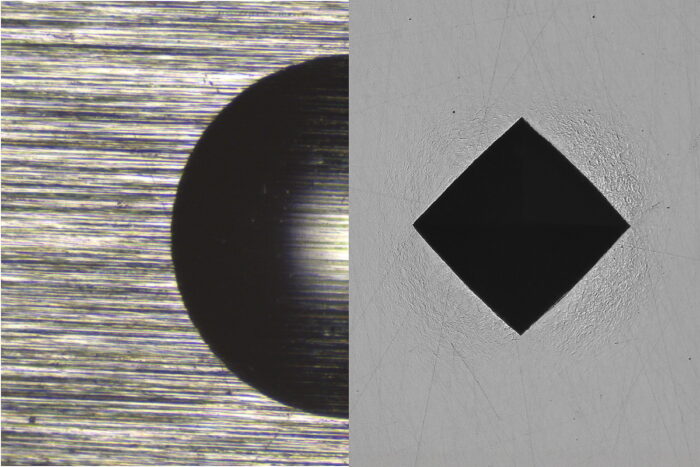

Camera system / Image transfer	5 MP Ethernet Industrial standard / up to 270FPS
Tool positions	2 (Standard) or 8 (Tool Changer)
Software	Qpix T2 (Option: Qpix CONTROL 2 M)
Operating system / Hard disk	Windows 10 IoT / 128 GB SSD
Data interfaces	1x USB (Front) 4x USB, 2x RJ45 (Ethernet), 1x DisplayPort, 1x RS232, 1x HDMI
Lenses	XLED 1, XLED 2, XLED 5, 5x, 10x, 20x, 50x, 100x
Fields of view (depending on tool selection)	0.113x 0.084 mm (100x) up to 7.98 x 5.97 mm (XLED 1)

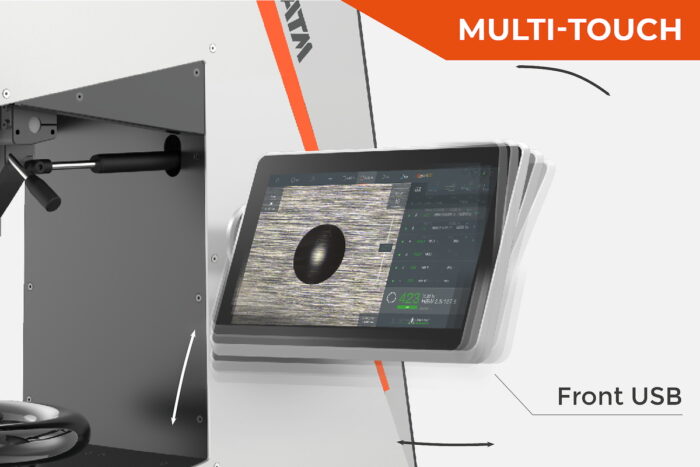

Display	Capacitive 12“ Touch - Display
Power supply	230~1/N/PE, 110~1/N/PE
Max. power consumption	~ 480 W
Additional options	designer pedestal, collision protection, cross laser, test anvils, prisms, data connections, barcode/QR code reader etc.

Brinell / Knoop / Rockwell / Vickers Hardness Tester C EVO

Supported test methods	Brinell, Vickers, Rockwell, Knoop, Plastics
Test force range	Model 250 C: 1 - 250 kg (9.81 - 2450 N) Model 750 C: 0.3 – 750 kg (2.94 – 7358 N) Model 3000 C: 0.3 - 3000 kg (2.94 - 29430 N)
Height adjustment	manual / spindle
Test height / Throat depth	395 / 220 mm
Test anvil	ø 100 mm
Max. work piece weight	"unlimited"
Weight basic machine	300 kg
Test sequence	fully automatic / electronic force control
Camera system / Image transfer	5 MP Ethernet Industrial standard / up to 270FPS
Tool positions	2 (Standard) or 8 (Tool Changer)
Software	Qpix T2 (Option: Qpix CONTROL 2 M)
Operating system / Hard disk	Windows 10 IoT / 128 GB SSD
Data interfaces	1x USB (Front) 4x USB, 2x RJ45 (Ethernet), 1x DisplayPort, 1x RS232, 1x HDMI
Lenses	XLED 1, XLED 2, XLED 5, 5x, 10x, 20x, 50x, 100x
Fields of view (depending on tool selection)	0.113x 0.084 mm (100x) up to 7.98 x 5.97 mm (XLED 1)
Display	Capacitive 12“ Touch - Display
Power supply	230~1/N/PE, 110~1/N/PE
Max. power consumption	~ 480 W
Additional options	designer pedestal, collision protection, cross laser, test anvils, prisms, data connections, barcode/QR code reader etc.
