Unrefrigerated microcentrifuge

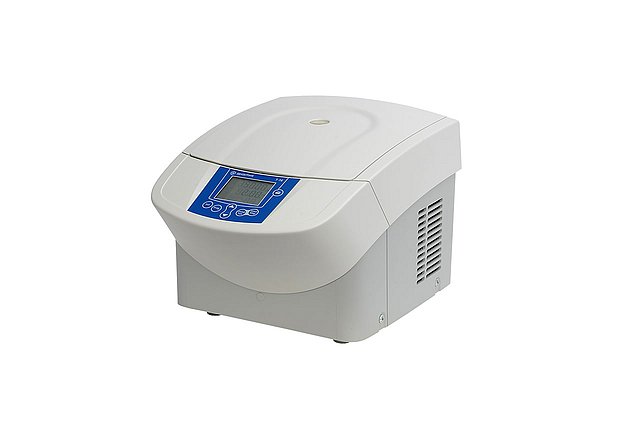

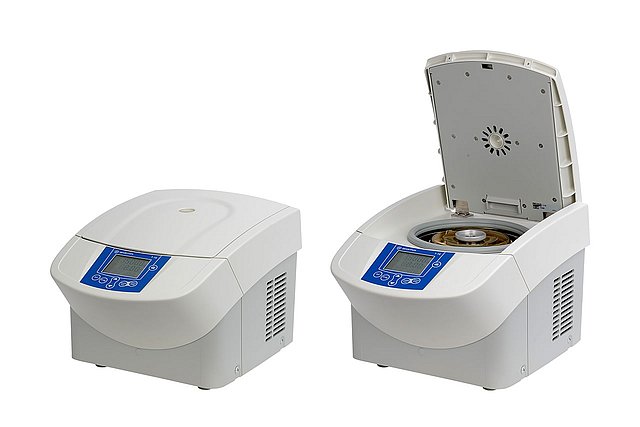

Sigma 1-16
High-grade microcentrifuge with an extensive range of rotors
As the big sister of the Sigma 1‑14, the Sigma 1‑16 microcentrifuge stands out with its space-saving design, high-quality finishing and excellent performance characteristics.
The extensive range includes rotors for PCR strips, filter tubes and 2 ml or 5 ml microlitre tubes, and a rotor for centrifuging microhaematocrit capillary tubes. Its strong performance and range of rotors make the Sigma 1‑16 ideal for microbiological and protein biochemistry applications and clinical chemistry applications.
What makes the Sigma 1‑16 microcentrifuge so attractive
The Sigma 1‑16 features RCF values greater than 20,600 x g, short acceleration and braking times, a high-grade stainless steel bowl, and a motorised lid lock for effortless closing. Further highlights include the ability to store ten standard programs, a closable biosafe rotor with a capacity of 36 x 2 ml, and a rotor for 12 x 5 ml test tubes.
Fixed-angle rotor
| max. volume | 72 ml |
| max. speed | 15,000 rpm |
| max. RCF | 20,627 x g |
Product options
- IVD
- Centrifuge package with 24 x 2 ml PP rotor
- Biosafe 36 x 2 ml rotor
User
- Hospitals
- Infant stations
- Children’s hospitals
- Veterinary clinics
- Food labs
- Universities & colleges
- Pharmaceutical labs
- Cell culture labs
Technical specifications
| Max. capacity [ml] | |
| fixed-angle rotor | 36 x 2 |
| Max. RCF | 20.627 |
| Max. speed [rpm] | 15.000 |
| Min. speed [rpm] | 200 |
| Noise level at maximum speed (approximate) [dB(A)] | |
| fixed-angle rotor 12134 | ≤ 59 |
| Max. acceleration time [s] | |
| fixed-angle rotor 12134 | ≤ 16 |
| Max. braking time [s] | |
| fixed-angle rotor 12134 | ≤ 16 |
| Temperature setting range [°C] | – |
| Power consumption [W] | 170 |
| Height x Width x Depth [mm] | 271 x 310 x 418 |
| Height with open lid [mm] | 527 |
| Weight without rotor [kg] | 14 |
