Sigma 4-16S

Unrefrigerated benchtop centrifuge

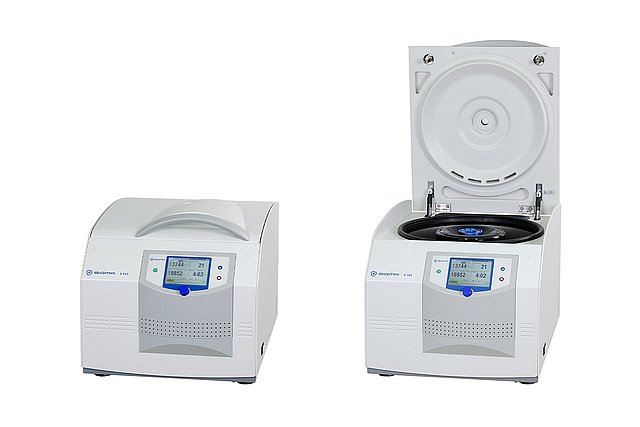

Sigma 4-16S

The most versatile 3‑litre centrifuge on the market

The Sigma 4‑16S benchtop centrifuge excels with versatile rotor configurations and outstanding capacity. Large specimen volumes can also be processed efficiently thanks to the maximum capacity of 4 x 750 ml in a swing-out rotor or 6 x 250 ml a fixed-angle rotor. The especially smooth running ensures excellent and reproducible sedimentation results. With its versatile range of rotors, it is suitable for research labs, hospitals, universities and pharmaceutical labs, as well as cell culture and biotechnology applications.

What makes the Sigma 4‑16S benchtop centrifuge so attractive
The Sigma 4‑16S is available with numerous swing-out and fixed-angle rotors as well as various buckets and adapters, including many biosafe configurations.
The extensive range of accessories can accommodate tubes and flasks from 0.2 ml to 750 ml as well as microtiter and deepwell plates.
The swing-out rotors can hold up to 3 litres (4 x 750 ml) or (for example) 16 x 50 ml tubes. The RCF values achievable with the configurations are best-in-class in this centrifuge segment. Highlights in the area of fixed-angle rotors include a 6 x 250 ml rotor with a maximum RCF of 13,131 x g and the ability to centrifuge 50 ml culture tubes at more than 23,000 x g.

This compact unit has intuitive operation and well-conceived features. The patented Spincontrol S one-knob controller provides superior operating convenience, safety and versatility. The acceleration and braking profiles (30 each) facilitate optimisation of separation runs and yields. Routine protocols can be stored with user-defined names and quickly retrieved from the integrated process library.
With automatic rotor identification, run time and speed monitoring, password-protected access to the controller and secure program storage, the centrifuge ensures uncompromising safety.

Centrifuge table

For Sigma 3-16L, 4-5L, 4-16S

17927
B x H x T [mm]: 490 x 497 x 647

Sigma centrifuge tables are available in six different sizes. Matched to the corresponding centrifuge dimensions, they combine convenient work height with an optimally calculated footprint. The tables are made from coated sheet steel and are equipped with a storage compartment (with two doors) and a convenient pull-out shelf. Lockable castors allow the centrifuge tables to be easily moved and positioned in the laboratory.

Rotors

Swing-out rotor 11660 +
Bucket 13450

	4 x 750 ml
	4,200 rpm
	3,708 x g

Swing-out rotor 11650 +
Bucket 13450

	4 x 750 ml
	4,200 rpm
	3,708 x g

Swing-out rotor 11150 +
Bucket 13215

	4 x 200 ml
	4,500 rpm
	4,120 x g

Swing-out rotor 11156 +
Bucket 13127

	6 x 200 ml
	4,500 rpm
	4,324 x g

Swing-out rotor 11118 +
Bucket 13218

	2 x 93 mm
	5,700 rpm
	5,485 x g

Swing-out rotor 11150 +
Bucket 13221

	4 x 56 mm
	4,500 rpm
	3,622 x g

Swing-out rotor 11660 +
Bucket 13421

	4 x 61 mm
	4,200 rpm
	3,096 x g

Swing-out rotor 11650 +
Bucket 13421

	4 x 61 mm
	4,200 rpm
	3,096 x g

Fixed-angle rotor 12449

	48 x 2 ml
	13,500 rpm
	20,376 x g

Fixed-angle rotor 12201

	100 x 2 ml
	9,000 rpm
	14,761 x g

Fixed-angle rotor 12450

	24 x 5 ml
	13,000 rpm
	21,917 x g

Fixed-angle rotor 12174

	24 x 15 ml
	10,500 rpm
	15,531 x g

Fixed-angle rotor 12269

	8 x 50 ml
	12,500 rpm
	18,168 x g

Fixed-angle rotor 12266

	8 x 50 ml
	12,500 rpm
	17,469 x g

Fixed-angle rotor 12265

	6 x 94 ml
	12,500 rpm
	18,517 x g

Fixed-angle rotor 12356

	6 x 250 ml
	8,000 rpm
	10,375 x g

max. volume

max. speed

max. RCF

Technical specifications
