Features
Centurion Touchscreen Controller
- Intuitive, comprehensive, and easy-to-understand
- Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram
- Defined details of alarm types with clear instructions for proper intervention
- Centered and angled down for easy reach & viewing
- Selectable Quickstart mode for fast operation
Dimmable LED
- Adjustable work zone brightness
- Ideal light intensity of 1000 lux
- Saves energy and optimizes work comfort

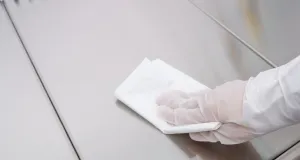

Working Area
- E-Series: multi-piece work tray is designed to accommodate autoclavable sizes, catering to user needs for sterilization and handling.
USB Port and Remote Modbus
- USB port to access cabinet data log and BMS connectivity
- Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices.
Cabinet Construction
- E-Series: UV absorbing tempered glass with side capture zones and negative pressure to optimize containment efficiency
Advanced Filtration System
- Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5
- Long filter life for lower operating cost, up to 10 years
Isocide™ Antimicrobial Powder Coating
- Eliminates 99.9% of surface bacteria within 24 hours of exposure
Models
| Item Code | Model Code | Description |
|---|---|---|
| 220-240VAC, 50/60 Hz (E-Series: Glass side walls, multi piece work tray) | ||
| 2011571 | SC2-4E1 G4 | Streamline® G4 Class II Biological Safety Cabinet, 4ft/1.2m (230V, 50Hz) |
| 2011573 | SC2-6E1 G4 | Streamline® G4 Class II Biological Safety Cabinet, 6ft/1.8m (230V, 50Hz) |
| 2011572 | SC2-4E3 G4 | Streamline® G4 Class II Biological Safety Cabinet, 4ft/1.2m (230V, 60Hz) |
| 2011574 | SC2-6E3 G4 | Streamline® G4 Class II Biological Safety Cabinet, 6ft/1.8m (230V, 60Hz) |
Accessories
| Item Code | Model Code | Description |
|---|---|---|
| 5170255 | UV-30A-L | UV Lamp for 4ft & 6ft Cabinets |
| IV Bars | ||
| 5170231 | IV-1215 | IV Bar 1215 mm |
| 5170501 | IV-1825 | IV Bar 1825 mm |
| Support Stands | ||
| 5131341 | STA-4A0 | Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 4ft cabinets |
| 5131389 | STA-6A0 | Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 6ft cabinets |
| Service Fixtures | ||
| 5170410 | SF-1G20 | European Style Service Fixture with 20mm Thread Length – Gas |
| 5170457 | SF-1V20 | European Style Service Fixture with 20mm Thread Length – Vacuum |
| 5170502 | SF-1A20 | European Style Service Fixture with 20mm Thread Length – Air |
| 5170503 | SF-1N20 | European Style Service Fixture with 20mm Thread Length – Nitrogen |
| 5170458 | SF-1W20 | European Style Service Fixture with 20mm Thread Length – Water |
| 5170504 | SF-2U22 | American Style Service Fixture with 22mm Thread Length – Universal |
| Exhaust Collars | ||
| 5171249 | ECO-SC2-4FT-EN G4 | Thimble Exhaust Collar for SC2-4E_ G4 |
| 5171317 | ECO-SC2/SC2-6FT-EN G4 | Thimble Exhaust Collar for SC2-6E_ G4 |
| 5171387 | ECO-W/VHP-OUT SC2-4 G4 | Thimble Exhaust Collar with VHP OUT (1″ Diameter) for SC2-4E_-G4 |
| 5171388 | ECO-W/VHP-OUT SC2-6 G4 | Thimble Exhaust Collar with VHP OUT (1″ Diameter) for SC2-6E_-G4 |
| Exhaust Accessories | ||
| 5170129 | B2-ABBV1 | Anti-blowback Valve 10 inches (EG Material) |
| 5170354 | ABBV-10S | Anti-blowback Valve 10 inches (Stainless Steel Material) |
| 5170104 | DAMPER | Exhaust Damper |
| VHP IN Ports | ||
| 5171323 | FRONT DECON COVER W/ VHP IN PORT SC2-4E_ G4 | Front Decon cover with VHP IN PORT for SC2-4E_-G4 |
| 5171327 | FRONT DECON COVER W/ VHP IN PORT SC2-6E_ G4 | Front Decon cover with VHP IN PORT for SC2-6E_-G4 |
| VHP OUT Ports | ||
| 5171324 | TOP DECON COVER W/ VHP OUT PORT SC2-4E_ G4 | Top Decon cover with VHP OUT PORT for SC2-4E_-G4 |
| 5171328 | TOP DECON COVER W/ VHP OUT PORT SC2-6E_ G4 | Top Decon cover with VHP OUT PORT for SC2-6E_-G4 |
| Top Box VHP OUT Ports | ||
| 5171389 | TOP BOX W/ VHP-OUT SC2-4 G4 | Top Box With VHP OUT (1″ Diameter) for SC2-4E_-G4 |
| 5171301 | TOP BOX W/ VHP-OUT SC2-6 G4 | Top Box With VHP OUT (1″ Diameter) for SC2-6E_-G4 |
| Pre-Filters | ||
| 5090062 | PF-42 | Pre-Filter, Paper catch (Black Foam only) for SC2-4E_-G4 |
| 5090061 | PF-41 (x2) | Pre-Filter, Paper catch (Black Foam only) for SC2-6E_-G4 |
| Others | ||
| 5175239 | SOLENOID VALVE FITTING | Solenoid Gas Valve |
| 5170026 | COPPER PIPING | Copper Piping |
| 5170127 | MEWREST | Arm Rest Padding |
| 5170073 | FT-REST | Foot Rest |
| 9010179 | IQ/OQ Protocol | |
