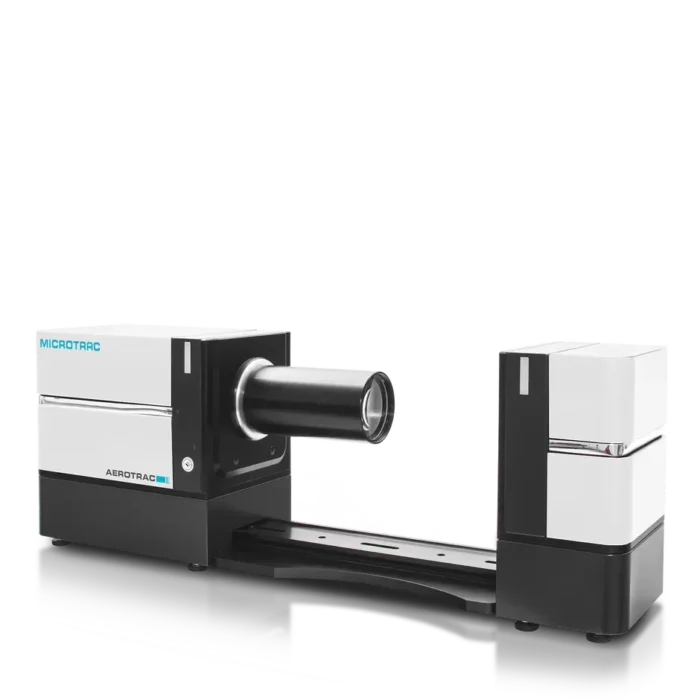

AEROTRAC II

AEROTRAC II

Spray particle & spray droplet size analyzer

Request Quote
Category: Tag:

The AEROTRAC II is an analyzer for particle size distributions & concentration ratio analysis (calculated from transmitted laser light) for suspended particulates in air such as atomized droplets, powders, spray particles, mist and etc.

Spray particle & spray droplet size analyzer AEROTRAC II Product Advantages

  • Wide range of applications
  • Measurement modes to support various applications
  • Key start (manual operation via keyboard)
  • Auto start (automatically starts when detecting scattered light from particulates)
  • Measurement start via external signal input
  • 0.02msec～ Accurate particulate analysis at short measurement intervals
  • Provided with multiple scattering correction software as standard
  • The instrument can be set up in a limited space
  • Equipped with a semiconductor laser

Measurement Examples Analysis of temporal change of spray mist

Spray particle & spray droplet size analyzer AEROTRAC II Accessories and Options

Fixing jigs to support various types of sprays
Wet measurement using a batch cell
Dry measurement

Typical Applications

AEROTRAC II can be used in a wide variety of fields, including droplets from injectors, nebulizers, insecticides, lotions, humidifiers, mist separators, powder paint and various powders.

pigments

lotions

powders

Technical Data

Spray particle & spray droplet size analyzer AEROTRAC II Technical Data

Measurement principle Laser diffraction
Measuring range F100 lens: 0.5 to 350 µm
F300lens: 1.4 to 1000 µm
F600 lens: 2.8 to 2000 µm
Light source Semiconductor laser
Wavelength: 635 nm
Output: 3.5 mW
Laser class: CLASS 3R
Detector 32-element ring detector (with automatic optical axis adjustment function
Measuring time Spray measurement: 0.02 to 500 msec
Continous measurement: 1 to 600 sec
Number of measurements Spray measurement: 1 to 100 times
Continous measurement: 1 to 9,999 times
Data Particle size distribution (frequency/cumulation), summary data (D50% particle size, SMD, mode diameter etc.) density index
Sample Cell Material: Tempax glass (with coating)
Capacity: 5 to 7 ml
Environmental conditions Ambient temperature: 10 to 35 °C
Ambient humidity: 20 to 80% R.H. (no condensation)
Power requirements 85 to 264 VAC, 47 to 63 hz
Dimensions (W x H x D) Light emission module: 170 × 230 × 240 mm
Detection module: 595 × 230 × 240 mm
For connected modules (option): 1000 × 230 × 340 mm, 27 kg
Weight Light emission module: 5.5 kg
Detection module: 11.5 kg (with F300 lens attached)
For connected modules (option): 27 kg
Operating unit Windows PC (including laptop PC)

Content may be subject to modifications or corrections
