Airstream® NS (S-series) G4 Class II Type A2 Biological Safety Cabinet

Airstream® NS (S-series) G4 Class II Type A2 Biological Safety Cabinet

Introducing Airstream® NS (S-series) G4 Class II Type A2 Biosafety Cabinet.

The new BSC with Centurion Touchscreen controller is NSF-certified with standby height that easily activates standby mode, an ergonomic work zone that is comprised of bright illumination using industry-leading dimmable LED combined with raised, durable, stainless-steel armrest. It also comes with wider model options offering stainless steel (S-series) and glass (E-series) side wall variants.

The Airstream® NS (S-series) G4 incorporates greener features, ensuring a more sustainable and environmentally friendly operation. With its compact size and advanced features, this biosafety cabinet offers an unparalleled level of convenience and safety, making it the ideal choice for laboratories and research facilities.

Request Quote
SKU: AC2-S-NS G4 Category: Brand:
Share

Features

Centurion Touchscreen Controller

  • Intuitive, comprehensive, and easy-to-understand
  • Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram
  • Defined details of alarm types with clear instructions for proper intervention
  • Centered and angled down for easy reach & viewing
  • Selectable Quickstart mode for fast operation

Dimmable LED

  • Adjustable work zone brightness
  • Ideal light intensity of 1200 lux
  • Saves energy and optimizes work comfort

Ergonomic Features

  • 8” sash opening
  • Frameless, shatterproof, and UV-absorbing tempered glass

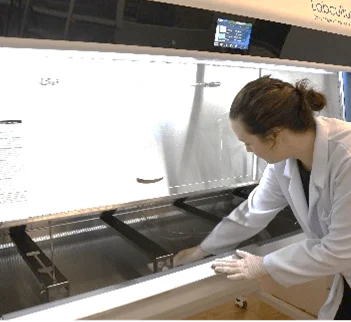

Tray support beams and holder

  • Support beams for less vibration and holder for easy drain pan cleaning

USB Port and Remote Modbus

  • USB port to access cabinet data log and BMS connectivity
  • Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices.

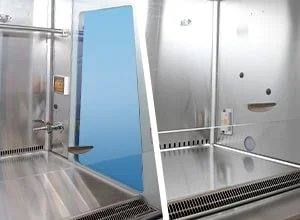

Cabinet Construction

  • S-Series:
    • Stainless steel side walls with side capture zones and negative pressure to optimize containment
    • Single-piece work tray, spill retaining and easy to clean

Green Product

  • Equipped with energy-efficient DC ECM that allows up to 70% energy savings vs AC motor
  • Extremely low energy consumption with 184 watts (4 ft unit)
  • Standby mode allows reduced power consumption

ULPA Filter

  • 10x filtration efficiency compared to the HEPA filter
  • Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5
  • Same 10 years filter life and replacement cost as HEPA filters

*99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA
*99.999% at MPPS, H14 as per EN 1822 EU

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
220-240 VAC, 50/60 Hz (S-Series: Stainless steel side walls, single piece work tray)
2011756AC2-2S8-NS G4 8”Airstream® NS G4 Class II Type A2 Biological Safety Cabinet, 2ft/0.6m, 8-inch opening
2011428AC2-3S8-NS G4 8”Airstream® NS G4 Class II Type A2 Biological Safety Cabinet, 3ft/0.9m, 8-inch opening
2011604AC2-3S8-NS G4 10”Airstream® NS G4 Class II Type A2 Biological Safety Cabinet, 3ft/0.9m, 10-inch opening
2011404AC2-4S8-NS G4 8”Airstream® NS G4 Class II Type A2 Biological Safety Cabinet, 4ft/1.2m, 8-inch opening
2011605AC2-4S8-NS G4 10”Airstream® NS G4 Class II Type A2 Biological Safety Cabinet, 4ft/1.2m, 10-inch opening
2011430AC2-5S8-NS G4 8”Airstream® NS G4 Class II Type A2 Biological Safety Cabinet, 5ft/1.5m, 8-inch opening
2011606AC2-5S8-NS G4 10”Airstream® NS G4 Class II Type A2 Biological Safety Cabinet, 5ft/1.5m, 10-inch opening
2011432AC2-6S8-NS G4 8”Airstream® NS G4 Class II Type A2 Biological Safety Cabinet, 6ft/1.8m, 8-inch opening
2011607AC2-6S8-NS G4 10”Airstream® NS G4 Class II Type A2 Biological Safety Cabinet, 6ft/1.8m, 10-inch opening
110-130 VAC, 50/60 Hz (S-Series: Stainless steel side walls, single piece work tray)
2011757AC2-2S9-NS G4 8”Airstream® NS G4 Class II Type A2 Biological Safety Cabinet, 2ft/0.6m, 8-inch opening
2011429AC2-3S9-NS G4 8”Airstream® NS G4 Class II Type A2 Biological Safety Cabinet, 3ft/0.9m, 8-inch opening
2011926AC2-3S9-NS G4 10”Airstream® NS G4 Class II Type A2 Biological Safety Cabinet, 3ft/0.9m, 10-inch opening
2011403AC2-4S9-NS G4 8”Airstream® NS G4 Class II Type A2 Biological Safety Cabinet, 4ft/1.2m, 8-inch opening
2011927AC2-4S9-NS G4 10”Airstream® NS G4 Class II Type A2 Biological Safety Cabinet, 4ft/1.2m, 10-inch opening
2011431AC2-5S9-NS G4 8”Airstream® NS G4 Class II Type A2 Biological Safety Cabinet, 5ft/1.5m, 8-inch opening
2011928AC2-5S9-NS G4 10”Airstream® NS G4 Class II Type A2 Biological Safety Cabinet, 5ft/1.5m, 10-inch opening
2011433AC2-6S9-NS G4 8”Airstream® NS G4 Class II Type A2 Biological Safety Cabinet, 6ft/1.8m, 8-inch opening
2011929AC2-6S9-NS G4 10”Airstream® NS G4 Class II Type A2 Biological Safety Cabinet, 6ft/1.8m, 10-inch opening

Accessories

Item CodeModel CodeDescription
5170251UV-15A-LUV Lamp for 2 ft and 3ft Cabinets
5170255UV-30A-LUV Lamp for 4ft, 5ft, 6ft Cabinets
5170071EO-GFCIGFCI Outlet x 2 (For -9 models)
 EO _Electrical Outlet (Direct Mounted) x 2 (For -8 models)
IV Bars
5170498IV-605IV Bar 605 mm
5170499IV-910IV Bar 910 mm
5170231IV-1215IV Bar 1215 mm
5170500IV-1520IV Bar 1520 mm
5170501IV-1825IV Bar 1825 mm
Support Stands
5131339STA-2A0Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 2ft cabinets
5131340STA-3A0Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 3ft cabinets
5131341STA-4A0Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 4ft cabinets
5131427STA-5A0Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 5ft cabinets
5131389STA-6A0Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 6ft cabinets
Service Fixtures
5170410SF-1G20European Style Service Fixture with 20mm Thread Length – Gas
5170457SF-1V20European Style Service Fixture with 20mm Thread Length – Vacuum
5170502SF-1A20European Style Service Fixture with 20mm Thread Length – Air
5170503SF-1N20European Style Service Fixture with 20mm Thread Length – Nitrogen
5170458SF-1W20European Style Service Fixture with 20mm Thread Length – Water
5170504SF-2U22American Style Service Fixture with 22mm Thread Length – Universal
Exhaust Collars
5171229ECO-FLAP-LA2/AC2-2 G4Thimble Exhaust Collar for AC2-2-NS G4
5171097ECO-FLAP-LA2/AC2-3 G4Thimble Exhaust Collar for AC2-3-NS G4
5171098ECO-FLAP-LA2/AC2-4 G4Thimble Exhaust Collar for AC2-4-NS G4
5171099ECO-FLAP-LA2/AC2-5 G4Thimble Exhaust Collar for AC2-5-NS G4
5171100ECO-FLAP-LA2/AC2-6 G4Thimble Exhaust Collar for AC2-6-NS G4
Exhaust Accessories
5170129B2-ABBV1Anti-blowback Valve 10 inches
5170354ABBV-10SAnti-blowback Valve 10 inches (304 Stainless Steel)
5170104B2-DAMPERManual Volumetric Exhaust Damper
VHP IN Ports
5260340Decon cover with VHP IN PORT AC2-2 G4Decon cover with VHP IN PORT for AC2-2-NS G4
5260329Decon cover with VHP IN PORT AC2-3 G4Decon cover with VHP IN PORT for AC2-3-NS G4
5260330Decon cover with VHP IN PORT AC2-4 G4Decon cover with VHP IN PORT for AC2-4-NS G4
5260331Decon cover with VHP IN PORT AC2-5 G4Decon cover with VHP IN PORT for AC2-5-NS G4
5260332Decon cover with VHP IN PORT AC2-6 G4Decon cover with VHP IN PORT for AC2-6-NS G4
VHP OUT Ports (WITHOUT exhaust collar)
5075192VHP-OUT TOP BOX AC2-2 G4VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for AC2-2-NS G4
5074983VHP-OUT TOP BOX LA2-3-G4VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for AC2-3-NS G4
5074984VHP-OUT TOP BOX LA2-4-G4VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for AC2-4-NS G4
5074985VHP-OUT TOP BOX LA2-5-G4VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for AC2-5-NS G4
5074986VHP-OUT TOP BOX LA2-6-G4VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for AC2-6-NS G4
VHP OUT Ports (WITH exhaust collar)
5171230VHP-ECO/OUT AC2-2 G4VHP OUT PORT For Cabinet WITH Exhaust collar installed (1-inch diameter) for AC2-2-NS G4
5171111VHP-ECO/OUT LA2-3-G4VHP OUT PORT For Cabinet WITH Exhaust collar installed (1-inch diameter) for AC2-3-NS G4
5171112VHP-ECO/OUT LA2-4-G4VHP OUT PORT For Cabinet WITH Exhaust collar installed (1-inch diameter) for AC2-4-NS G4
5171113VHP-ECO/OUT LA2-5-G4VHP OUT PORT For Cabinet WITH Exhaust collar installed (1-inch diameter) for AC2-5-NS G4
5171114VHP-ECO/OUT LA2-6-G4VHP OUT PORT For Cabinet WITH Exhaust collar installed (1-inch diameter) for AC2-6-NS G4
Others
5170127MEWRESTArm Rest Padding
5170492FT-RESTFoot Rest
5142493DRAINVALVE KIT G4For LA2/AC2-NS/LB2/LR2/VA2/AR2 G4
