Features
Centurion Touchscreen Controller
- Intuitive, comprehensive, and easy-to-understand
- Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram
- Defined details of alarm types with clear instructions for proper intervention
- Centered and angled down for easy reach & viewing
- Selectable Quickstart mode for fast operation

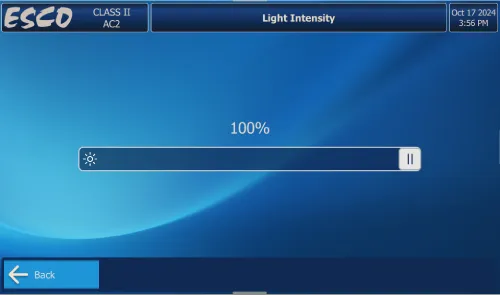

Dimmable LED
- Adjustable work zone brightness
- Ideal light intensity of 1000 lux
- Saves energy and optimizes work comfort

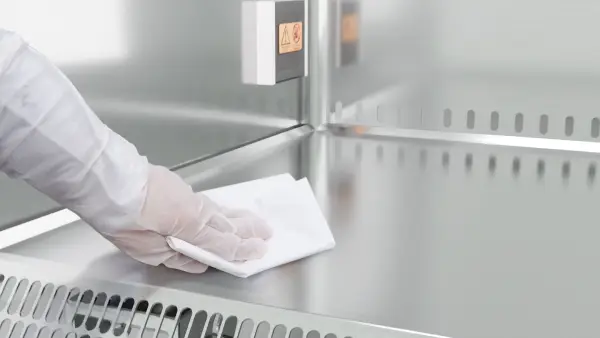

Working Area
- S-Series: Single-piece work tray, spill retaining and easy to clean

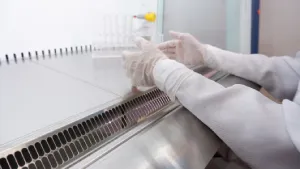

Ergonomic Armrest
- Full length arm rest for user comfort
Tray Support Beams and Holder
- Support beams for less vibration and holder for easy drain pan cleaning
Ergonomic Sash
- Frameless, shatterproof, and UV-absorbing tempered glass
- Designed with a 10° angle to enhance user comfort during operation.

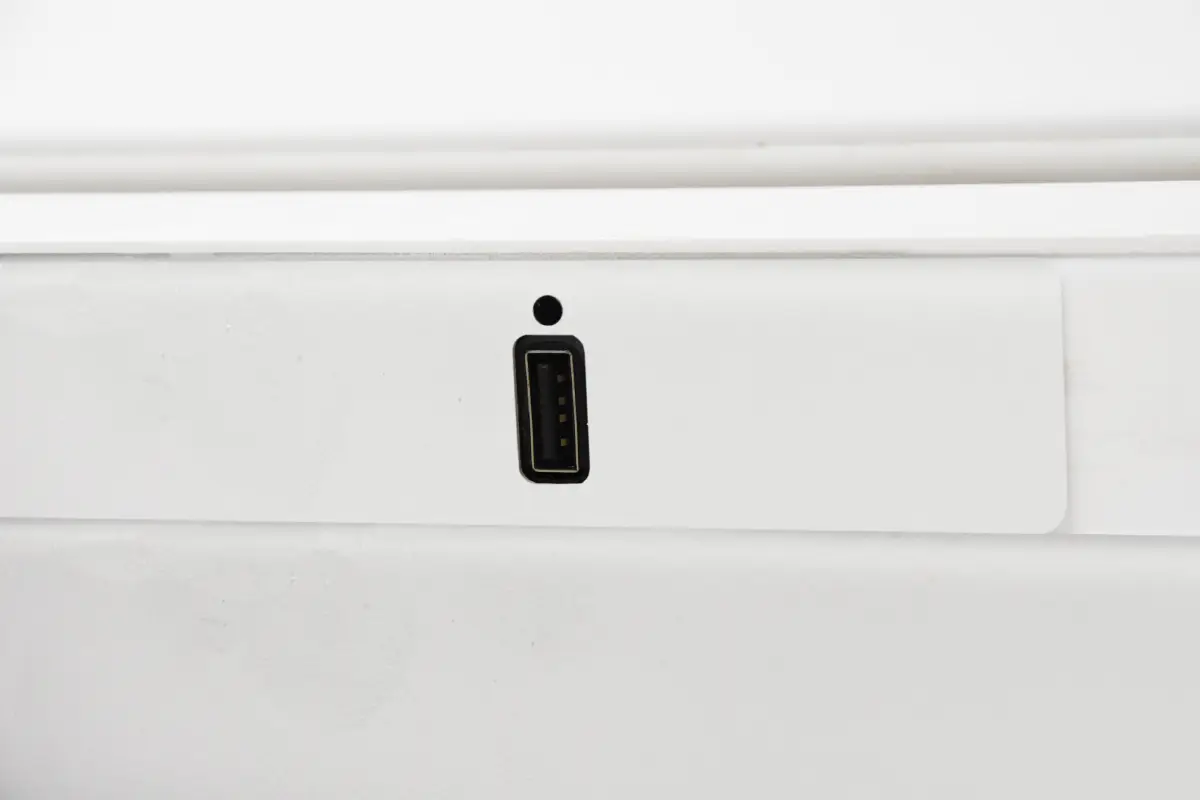

USB Port and Remote Modbus
- USB port to access cabinet data log and BMS connectivity
- Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices.

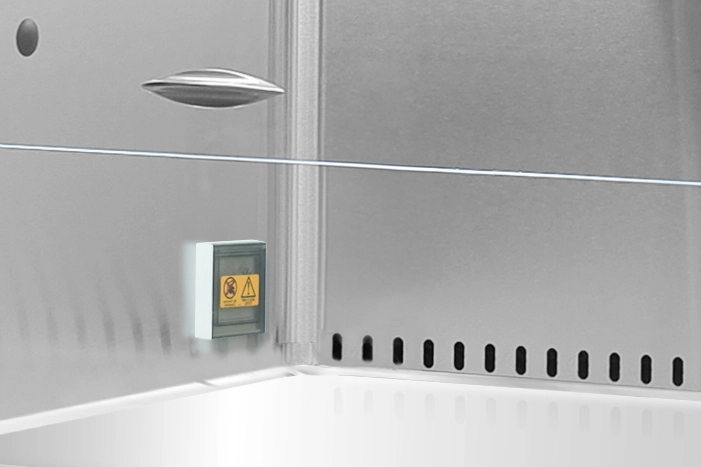

Cabinet Construction
- S-Series: Stainless steel side walls with side capture zones and negative pressure to optimize containment efficiency
Green Product
- Equipped with energy-efficient DC ECM that allows up to 70% energy savings vs AC motor
- Standby mode to reduced power consumption
Advanced Filtration System
- Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5
- Long filter life for lower operating cost, up to 10 years
*99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA
*99.999% at MPPS, H14 as per EN 1822 EU
Isocide™ Antimicrobial Powder Coating
- Eliminates 99.9% of surface bacteria within 24 hours of exposure
Models
| Item Code | Model Code | Description |
|---|---|---|
| 220-240VAC, 50/60 Hz (S-Series: Stainless steel side walls, single piece work tray) | ||
| 2011485 | AC2-2S8 G4 | Airstream® G4 Class II Biological Safety Cabinet, 2ft/0.6m |
| 2011486 | AC2-3S8 G4 | Airstream® G4 Class II Biological Safety Cabinet, 3ft/0.9m |
| 2011439 | AC2-4S8 G4 | Airstream® G4 Class II Biological Safety Cabinet, 4ft/1.2m |
| 2011487 | AC2-5S8 G4 | Airstream® G4 Class II Biological Safety Cabinet, 5ft/1.5m |
| 2011488 | AC2-6S8 G4 | Airstream® G4 Class II Biological Safety Cabinet, 6ft/1.8m |
Accessories
| Item Code | Model Code | Description |
|---|---|---|
| 5170251 | UV-15A-L | UV Lamp for 2 ft and 3ft Cabinets |
| 5170255 | UV-30A-L | UV Lamp for 4ft, 5ft, 6ft Cabinets |
| IV Bars | ||
| 5170498 | IV-605 | IV Bar 605 mm |
| 5170499 | IV-910 | IV Bar 910 mm |
| 5170231 | IV-1215 | IV Bar 1215 mm |
| 5170500 | IV-1520 | IV Bar 1520 mm |
| 5170501 | IV-1825 | IV Bar 1825 mm |
| Support Stands | ||
| 5131339 | STA-2A0 | Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 2ft cabinets |
| 5131340 | STA-3A0 | Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 3ft cabinets |
| 5131341 | STA-4A0 | Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 4ft cabinets |
| 5131427 | STA-5A0 | Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 5ft cabinets |
| 5131389 | STA-6A0 | Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 6ft cabinets |
| Service Fixtures | ||
| 5170410 | SF-1G20 | European Style Service Fixture with 20mm Thread Length – Gas |
| 5170457 | SF-1V20 | European Style Service Fixture with 20mm Thread Length – Vacuum |
| 5170502 | SF-1A20 | European Style Service Fixture with 20mm Thread Length – Air |
| 5170503 | SF-1N20 | European Style Service Fixture with 20mm Thread Length – Nitrogen |
| 5170458 | SF-1W20 | European Style Service Fixture with 20mm Thread Length – Water |
| 5170504 | SF-2U22 | American Style Service Fixture with 22mm Thread Length – Universal |
| Exhaust Collars | ||
| 5171246 | ECO-AC2/SC2-2FT-EN G4 | Thimble Exhaust Collar for AC2-2S_ G4 |
| 5171247 | ECO-AC2/SC2-3FT-EN G4 | Thimble Exhaust Collar for AC2-3S_ G4 |
| 5171248 | ECO-AC2/SC2-4/5FT-EN G4 | Thimble Exhaust Collar for AC2-4S_ G4 and AC2-5S_ G4 |
| 5171250 | ECO-AC2/SC2-6FT-EN G4 | Thimble Exhaust Collar for AC2-6S_ G4 |
| Exhaust Accessories | ||
| 5170352 | ABBV1-10P | Anti-blowback Valve 10 inches (EG Material) |
| 5170354 | ABBV-10S | Anti-blowback Valve 10 inches (Stainless Steel Material) |
| 5170104 | DAMPER | Exhaust Damper |
| VHP IN Ports | ||
| 5171319 | Front Decon cover with VHP IN PORT AC2-2S_ G4 | Front Decon cover with VHP IN PORT for AC2-2S_-G4 |
| 5171321 | Front Decon cover with VHP IN PORT AC2-3S_ G4 | Front Decon cover with VHP IN PORT for AC2-3S_-G4 |
| 5171323 | Front Decon cover with VHP IN PORT AC2-4S_ G4 | Front Decon cover with VHP IN PORT for AC2-4S_ G4 |
| 5171325 | Front Decon cover with VHP IN PORT AC2-5S_ G4 | Front Decon cover with VHP IN PORT fo AC2-5S_ G4 |
| 5171327 | Front Decon cover with VHP IN PORT AC2-6S_ G4 | Front Decon cover with VHP IN PORT for AC2-6S_ G4 |
| VHP OUT Ports | ||
| 5171320 | Top Decon cover with VHP OUT PORT AC2-2S_ G4 | Top Decon cover with VHP OUT PORT for AC2-2S_-G4 |
| 5171322 | Top Decon cover with VHP OUT PORT AC2-3S_ G4 | Top Decon cover with VHP OUT PORT for AC2-3S_-G4 |
| 5171324 | Top Decon cover with VHP OUT PORT AC2-4S_ G4 | Top Decon cover with VHP OUT PORT for AC2-4S_-G4 |
| 5171326 | Top Decon cover with VHP OUT PORT AC2-5S_ G4 | Top Decon cover with VHP OUT PORT for AC2-5S_-G4 |
| 5171328 | Top Decon cover with VHP OUT PORT AC2-6S_ G4 | Top Decon cover with VHP OUT PORT for AC2-6S_-G4 |
| Top Box VHP OUT Ports | ||
| 5171350 | TOP BOX W/ VHP-OUT AC2-2SG4 | Top Box with VHP OUT (25mm (1″) diameter) for AC2-2S_-G4 |
| 5171298 | TOP BOX W/ VHP-OUT AC2-3SG4 | Top Box with VHP OUT (25mm (1″) diameter) for AC2-3S_-G4 |
| 5171299 | TOP BOX W/ VHP-OUT AC2-4SG4 | Top Box with VHP OUT (25mm (1″) diameter) for AC2-4S_-G4 and AC2-5S_-G4 |
| 5171301 | TOP BOX W/ VHP-OUT AC2-6SG4 | Top Box with VHP OUT (25mm (1″) diameter) for AC2-6S_-G4 |
| Pre-Filter | ||
| 5090060 | PF-40 | Pre-Filter, Paper Catch (Black Foam Only) for AC2-2S_-G4 |
| 5090061 | PF-41 | Pre-Filter, Paper Catch (Black Foam Only) for AC2-3S_-G4 and AC2-6S_-G4 |
| 5090062 | PF-42 | Pre-Filter, Paper Catch (Black Foam Only) for AC2-4S_-G4 |
| 5090063 | PF-43 | Pre-Filter, Paper Catch (Black Foam Only) for AC2-5S_-G4 |
| Others | ||
| 5175239 | SOLENOID VALVE FITTING | Solenoid Gas Valve |
| 5170026 | COPPER PIPING | Copper Piping |
| 5170127 | MEWREST | Arm Rest Padding |
| 5170073 | FT-REST | Foot Rest |
| 9010179 | IQ/OQ Protocol | |
