The Qgrind 100 is a stable wet double-belt grinder for deburring and pre-grinding of samples or other materials.
It is possible to use belts with 2 different grain sizes simultaneously. Waste material generated is drained-off by water supply.
Both shroud covers are made of stainless steel and are simply opened backwards. This allows free access to the individual belts. Rotate the front tension wheel to loosen the belt which can then be removed from the side. Similarly, by rotating the adjustment wheel, the new belt can be centred onto the middle of the working surface.
A water film is created over the whole width of the front end of the belt. Waste material generated is carried to the back with the water and both are drained-off into the machine. Drain-offs are separated, one to the left, one to the right
A powerful motor drives both belts at the same time. The rubber coated drive wheels, which are fitted with a special tread, prevent the belt from slipping.
| Grinding belts | endless grinding belts 100 x 920 / 100 x 915 mm |
| Belt speed | 7 m/ sec |
| Water connection | 1x fresh water connection R½" max. 6 bars |
| Water outlet | right and left, ø 40 mm |
| Water valve | right and left |
| Connection power | 1.4 kVA |
| Drive power (main drive) | 0.75 kW S6/60% |

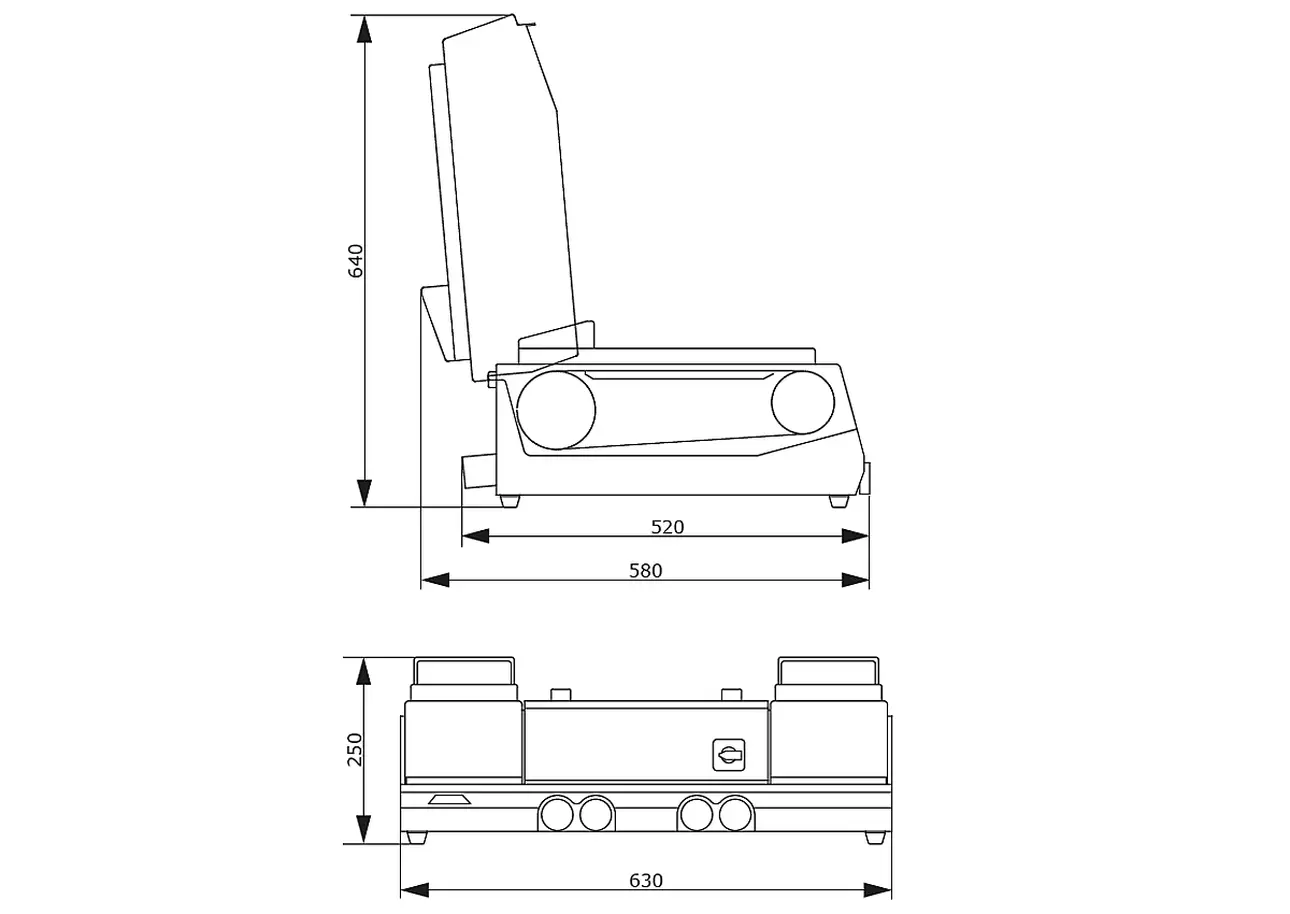

| W x H x D | 630 x 250 x520 mm |
| Weight | ~ 55 kg |
