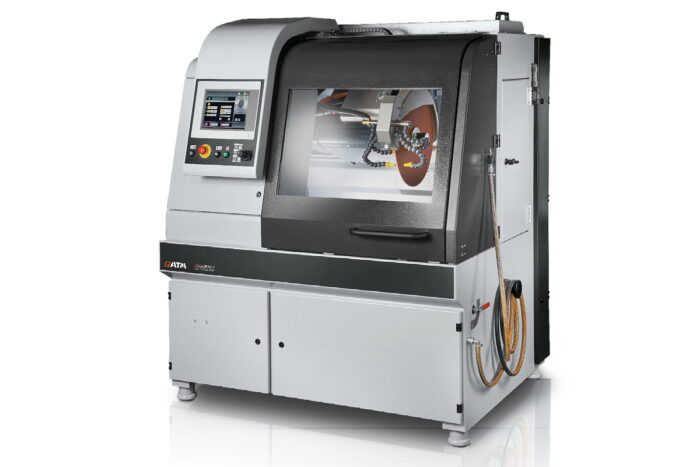

The Qcut 600 A represents the flagship of QATM’s cut-off machine series, delivering maximum cutting capacity for large and heavy workpieces. Its automatic travel and cross-feed functions enable precise, low-contact cutting while setting new standards in workspace efficiency, operational flexibility, and process automation.
- Maximum cutting capacity: Samples with a diameter of up to 244 mm can be easily cut
- Industrial applications: Even the heaviest samples can be placed on the heavy-duty machine table using a forklift or crane
- Multi-Position Process (MPP): Simultaneous positioning and automatic cutting of different components on the machine table
Cut-off machine Qcut 600 A Superiority in detail
1. Ergonomic control panel
- Large 12.1″ industrial touchscreen with intuitive QATM software
- Quick setup, control of all automatic axes with joystick
- The sliding control panel enables unobstructed working conditions
2. Robust machine body
- Sturdy powder-coated steel construction
- Integrable recirculating cooling unit
- Automatic central lubrication of the axes
3. Large machine table
- Made of stainless steel with integrated longitudinal and cross T-slots
- Secure clamping of complex workpiece shapes using the T-slot table or Easy clamping system
- Dimensions 750 x 600 mm (W x D)
- Load capacity: up to 400 kg
- Travel: X: 550 mm, Y: 360 mm, Z: 550 mm
4. Large cutting chamber
- Large sliding door provides easy access and visibility
- Side swing door for convenient access to cutting chamber
- Large side door for easy cut-off wheel replacement
- Break-resistant LED interior lighting
5. Optimized swivel arm
- Highly efficient cooling system
- Increased cutting capacity thanks to parallel guided cut-off wheel guard
- Laser alignment aid for easy workpiece positioning
- Water-cooled main drive with 15 kW drive power
Cut-off machine Qcut 600 A Features
Stainless steel machine table
Spacious machine table enables precise work even under heavy loads.
- Integrated T-slots for the Easy clamping system for quick mounting of clamping tools
- Efficient and reliable fixation of complex geometries using clamping devices
- Load capacity up to 120 kg (including clamping devices)
Laser alignment
Optional laser alignment projects the cutting line directly onto the workpiece, enabling precise positioning and exact cut placement.
- Easy positioning of workpieces
- Precise clamping without much effort
Robust machine with large cutting chamber
Robust, powder-coated steel machine body features a large sliding door with scratch-resistant laminated safety glass and convenient side access door.
- Machine body with integrable recirculating cooling unit and automatic central lubrication
- Large cutting chamber access with safety interlock — doors open only when cut-off wheel is stationary
Precision cross feed
The table-integrated Z-axis maintains consistent cutting height while the automatic cross feed with serial cutting function delivers precise parallel cuts.
- Simple and intuitive serial cutting
- The multi-position process (MPP) allows more complex serial cutting to be carried out
Rotation tool
The optional rotation tool features a vertical rotary feed parallel to the wheel with software-controlled angle input.
- More uniform cutting surfaces and cutting quality
- Cutting time is halved for rotationally symmetrical parts
- Protects against cut-off wheel run-out
Intuitive and easy operation
Large 10.1” industrial touchscreen with intuitive QATM user software and joystick.
- Easily manage process parameters and create customer-specific maintenance tasks (200 user programs can be saved)
- Parameters such as feed rate, travel distance, and cutting force can be changed during automatic operation
Pulsed cutting
For thick and difficult-to-cut materials, the adjustable automatic pulsed cutting provides gentle sectioning with optimal cooling of the cut interface.
- Enhanced cutting results for larger components
- Superior cooling of contact surfaces
Cutting force dependent feed control (X- and Y-Axis)
The feed rate automatically decreases when cutting force reaches a preset limit, protecting the machine, sample, and clamping tools from overloading while ensuring time savings through variable feed control.
- Time savings thanks to variable feed rate
Cut-off machine Qcut 600 A Accessories
Recirculation cooling unit
Compact, integrable cooling system for standard applications.
- Can be integrated into the housing and extended
- Multi-chamber filtration
- Inlet sieve with filter bag (see consumables)
Belt filter system
Large cooling and filter system for continuous operation, e.g. in serial applications.
- Tank size: 285 l
- Filtering capacity: 100 l/min (referring emulsion)
- Pump capacity: 100 l/min
Centrifugal Separator
Work safety: Working environment with improved air quality.
- Removes coolant mist
- Purifies the air and increases visibility
- Exhaust power 452 or 500 m3/h depending on voltage
Perfect cutting – Cut-off wheels from QATM
Cutting is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments. The Qprep range includes specially developed cut-off wheels for a wide variety of materials and requirements.
- Low thermal influence on the specimen during the cutting process
- Wet abrasive cutting achieves very fine surface finishes after cutting
- Optimal cutting shortens the further preparation process
Fast, Powerful, Flexible – Qtool Clamping devices
Our innovative clamping devices are used to clamp workpieces securely and precisely to ensure exact cutting and grinding processes. There is a wide range of different clamping devices that have been developed for specific applications and workpiece sizes.
- Suitable for regular and irregularly shaped samples
- Fast, repeat-accurate clamping of regularly shaped samples
- Large range of different clamping tools and systems available
