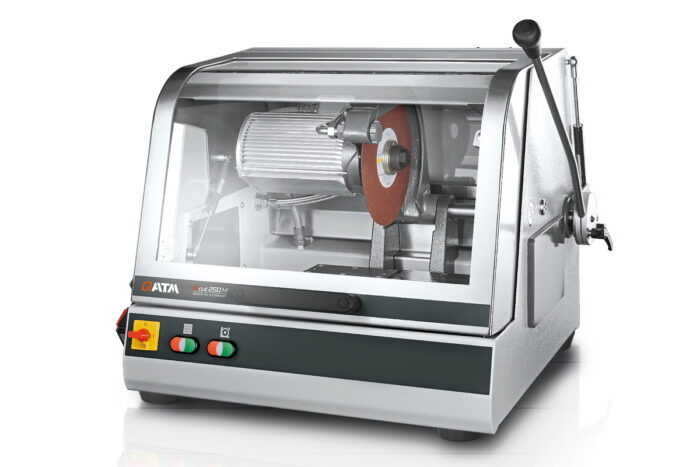

Cut-off machine Qcut 250 M

The Qcut 250 M is an especially user-friendly wet abrasive cutting machine with manual cut-off. Opening the machine folds away the hood to the inside so that the whole cutting chamber is easily accessible. The round window opens a wide field of view during the cutting process.

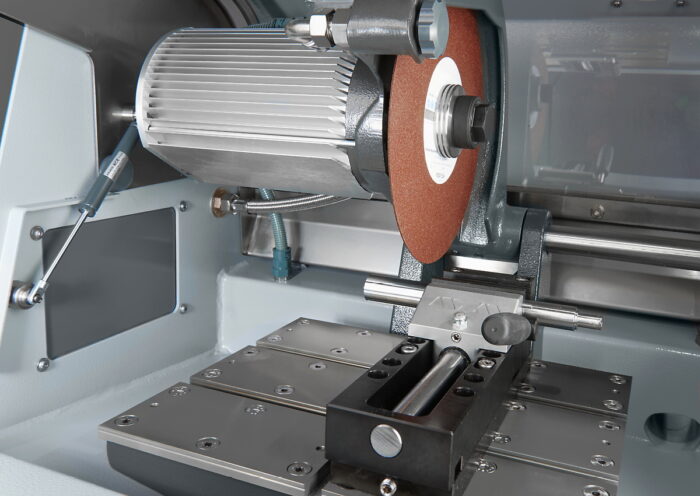

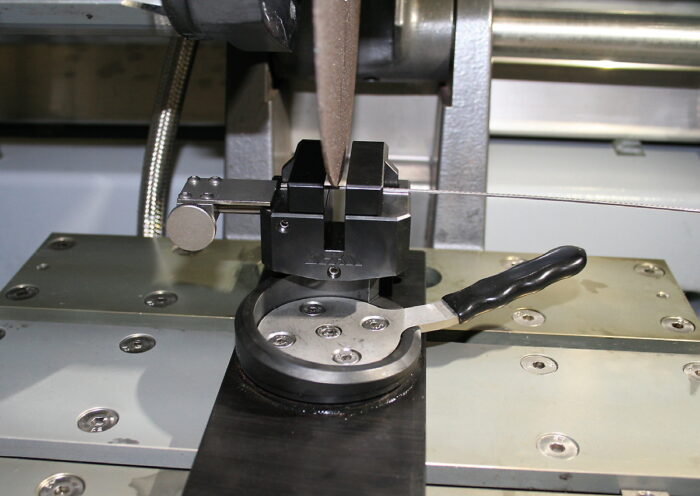

The cutting wheel cooling is integrated directly into the wheel guarding cover. The large, stainless table is equipped with replaceable wearing plates. Transverse grooves allow optimized alignment of clamping vices (e. g. clamping vice 80).

Product Advantages

  • Manual vertical movement
  • Large cutting chamber
  • Opening on left- and righthand side for continuous long parts
  • Large table with exchangeable wearing plates
  • Hood covering complete width for optimal accessibility
  • Easy operation
  • Large range of different clamping tools and systems available
  • Current safety standard with door interlocking system
  • Solid aluminium case construction, powder coated

Fine dynamic cut-off

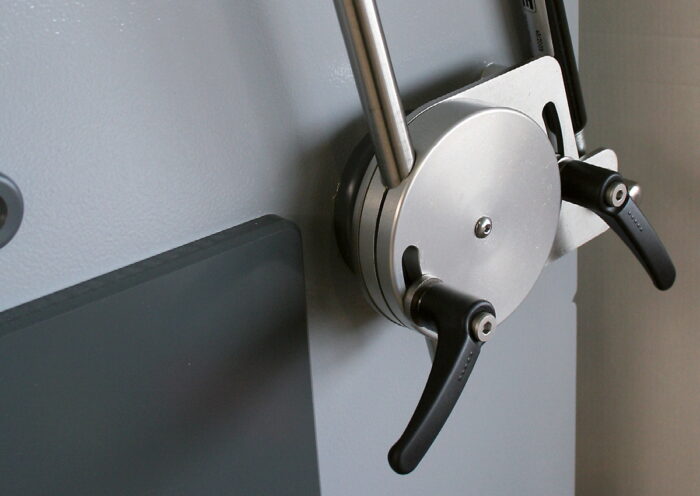

The manual cutting movement of the Y-axis is executed precisely and jerk-free via lever. Length and angle of the lever are adjustable. Further, the cutting depth can easily be adjusted by using a limiter.

Illumination

Through the large rounded window, the cutting chamber is comfortably visible. For direct lighting, the Qcut 250 M can be equipped with a flexible LED light.

Safety

The integrated standstill monitoring allows opening only when the cutting wheel is not rotating.

qatm
qatm

Cutting wheel up to ø 250 mm/10"
Max. cutting capacity ø 55 mm / ø 90 mm (up to 25 mm length)
Wheel flange size ø 32 mm
Y-axis (vertical movement) 145 mm
Table WxD 350 x 288 mm stainless
T-slot 12 mm
Connection power 4.5 kVA
Drive power (main drive) 3 kW S6 40%

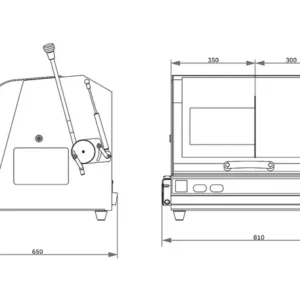

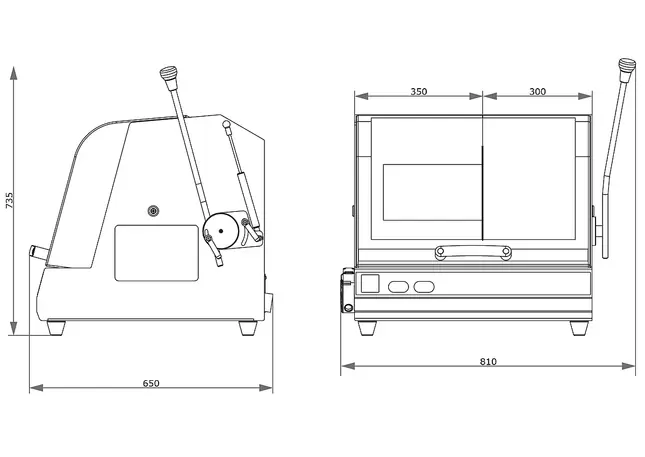

W x H x D 810 x 735 x 650 mm
Weight ~ 75 kg
