Qeye 800 - Smart Resources For Equipment

Weld seam measurement – fast, high-resolution and efficient

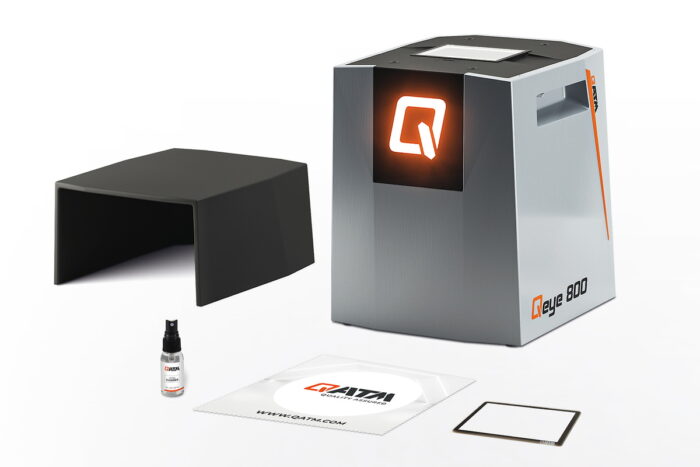

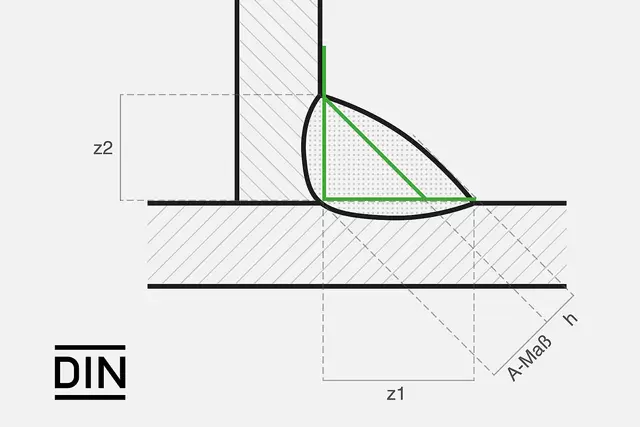

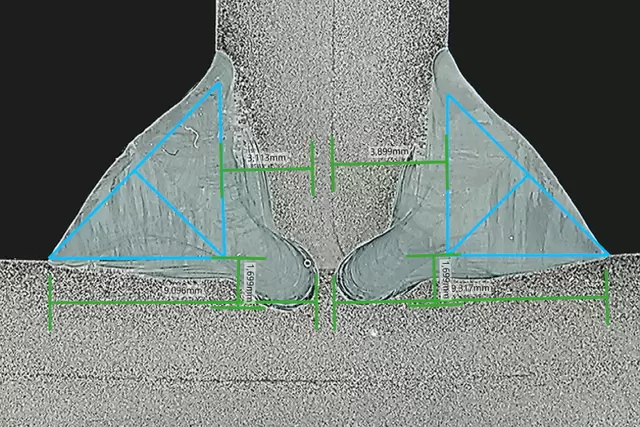

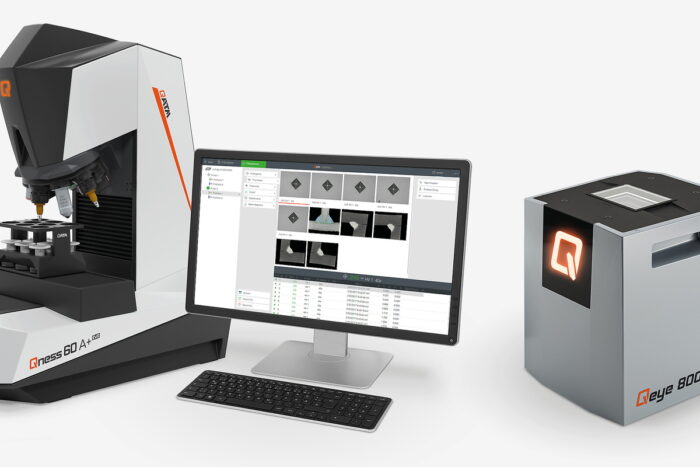

The new Qeye 800 impresses with fast, high-resolution and efficient optical analysis and measurement of specimens. Especially for standardized weld seam measurement and inspection according to DIN EN ISO 5817.

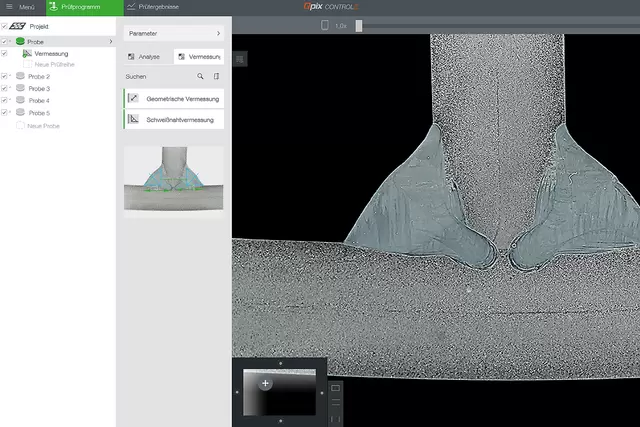

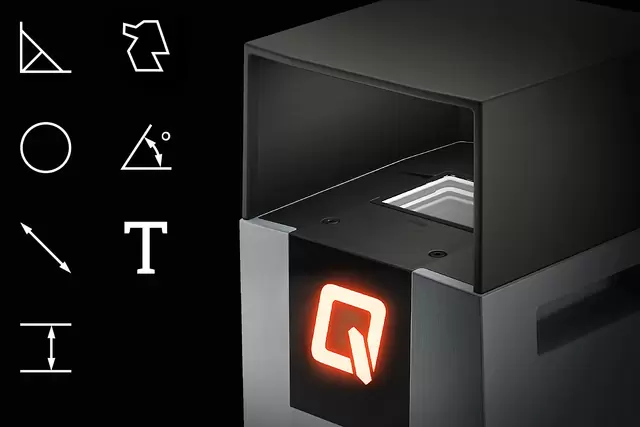

Measurement tools such as A dimension, depth burn-in, evaluation limits and standard-compliant inspection report are included as standard in the proven and user-friendly Qpix Control2 Software. Integrated graphical template mode with predefined measurement elements and QATM standard catalog, as well as management of customer-specific templates.

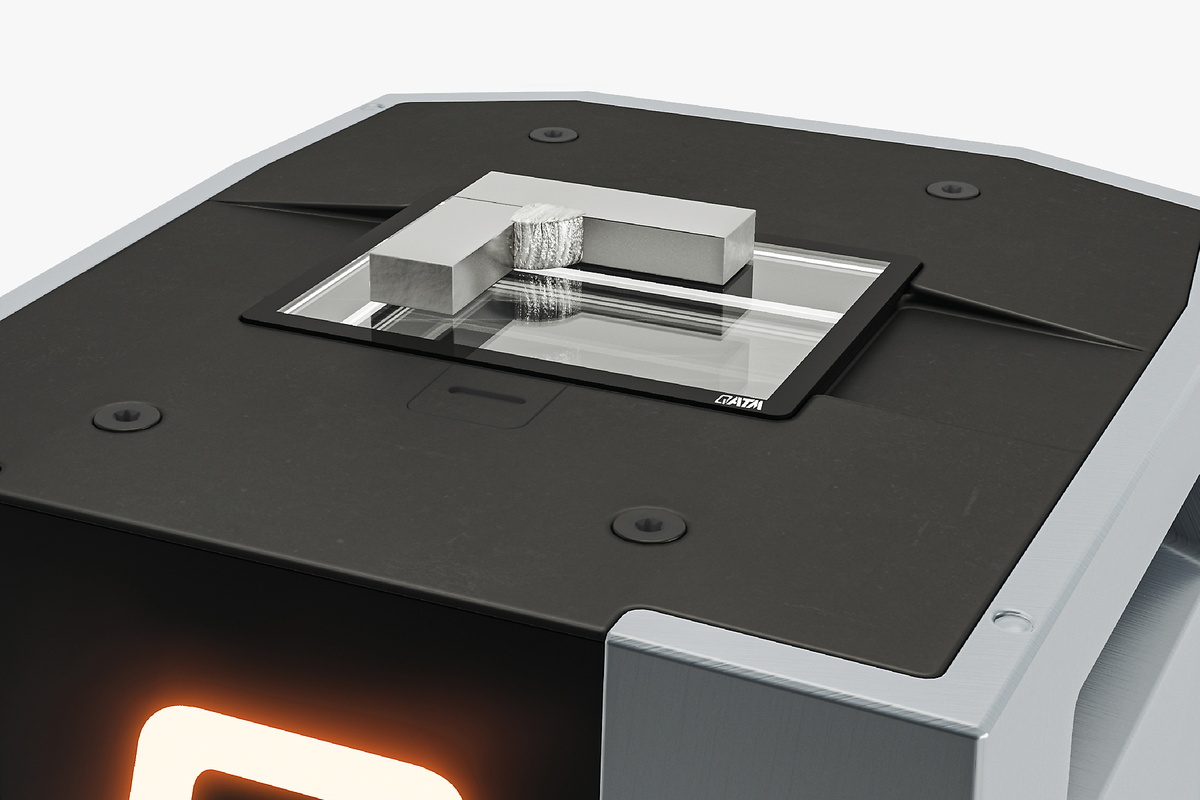

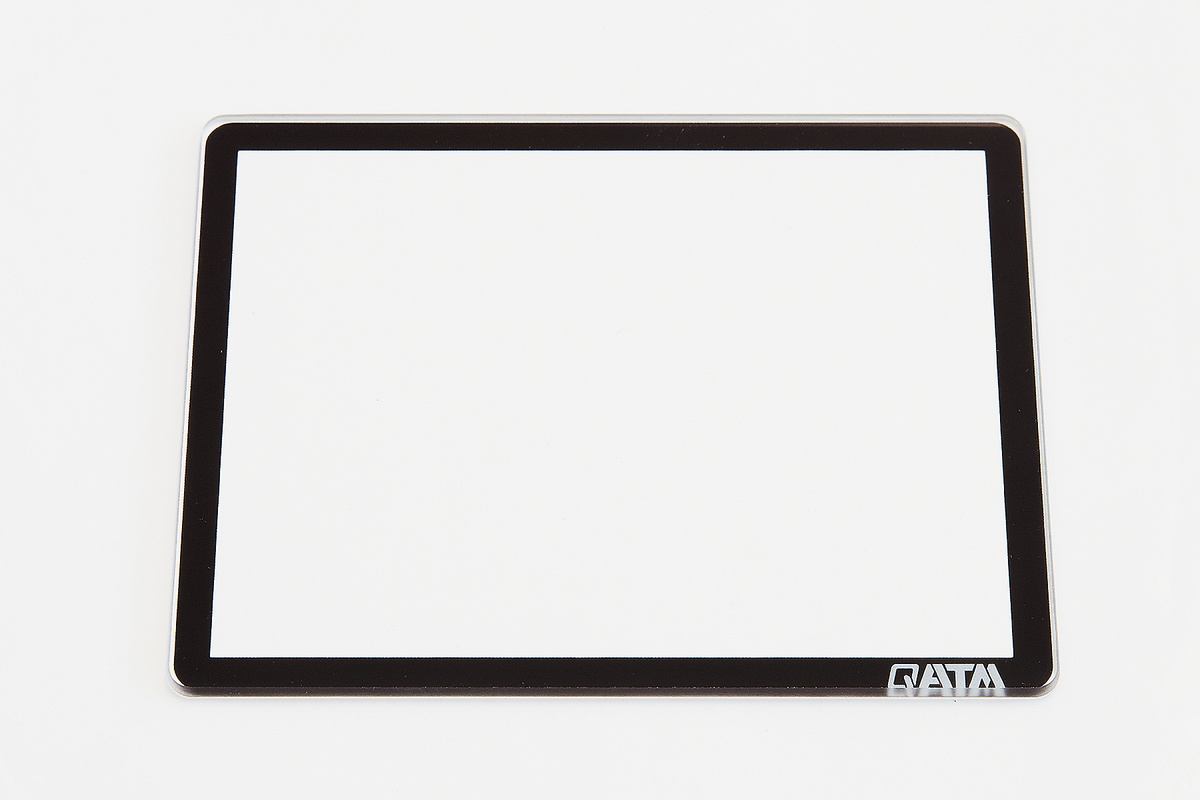

Qeye saves time, providing detailed analysis and measurement with supreme accuracy. Robust modern industrial design. Easy replacement of the glass sample carrier. Absolutely dust-tight due to assembly in a clean room.

Optimized specimen illumination

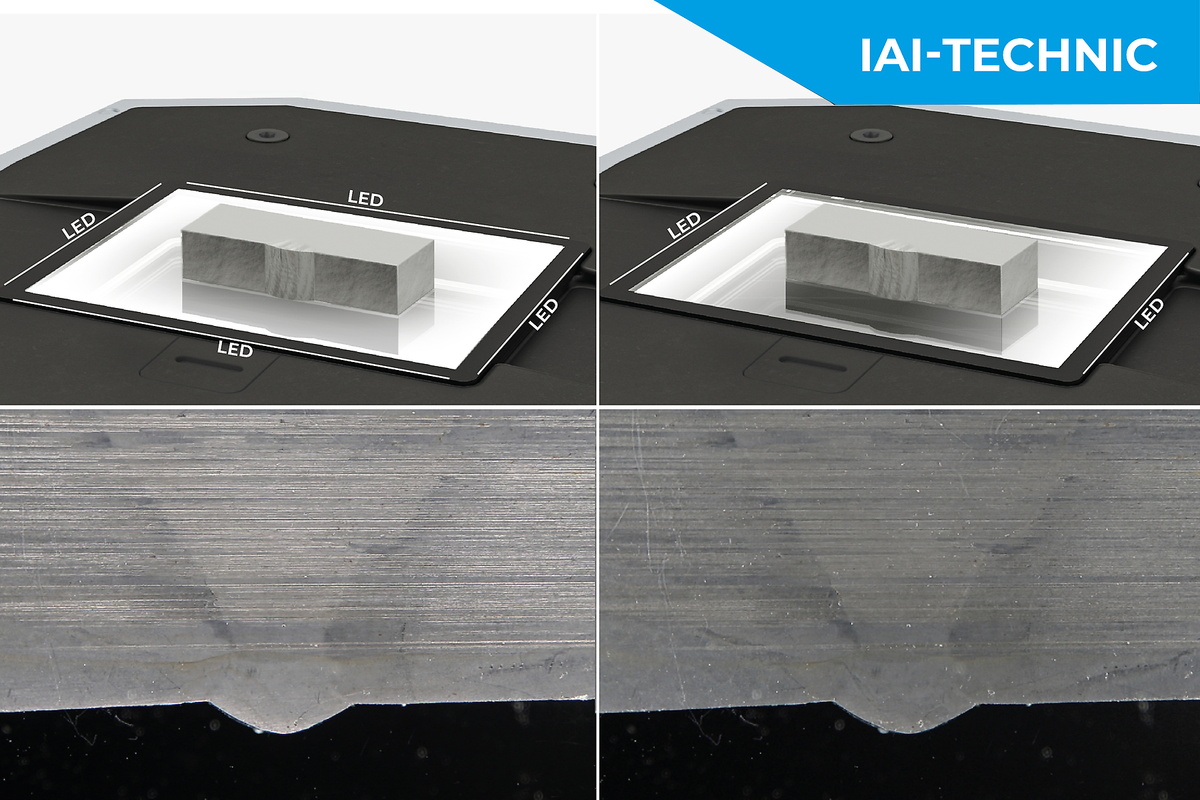

IAI = Intelligent Area Illumination. The Qeye system features innovative LED analysis area illumination. Each of the 4 illumination profiles (right, left, front, rear) can be switched on or off smoothly and individually. This now enables faster and more precise testing, without the disturbance of light influences or grinding reflections.

Touch control panel

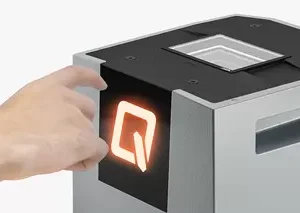

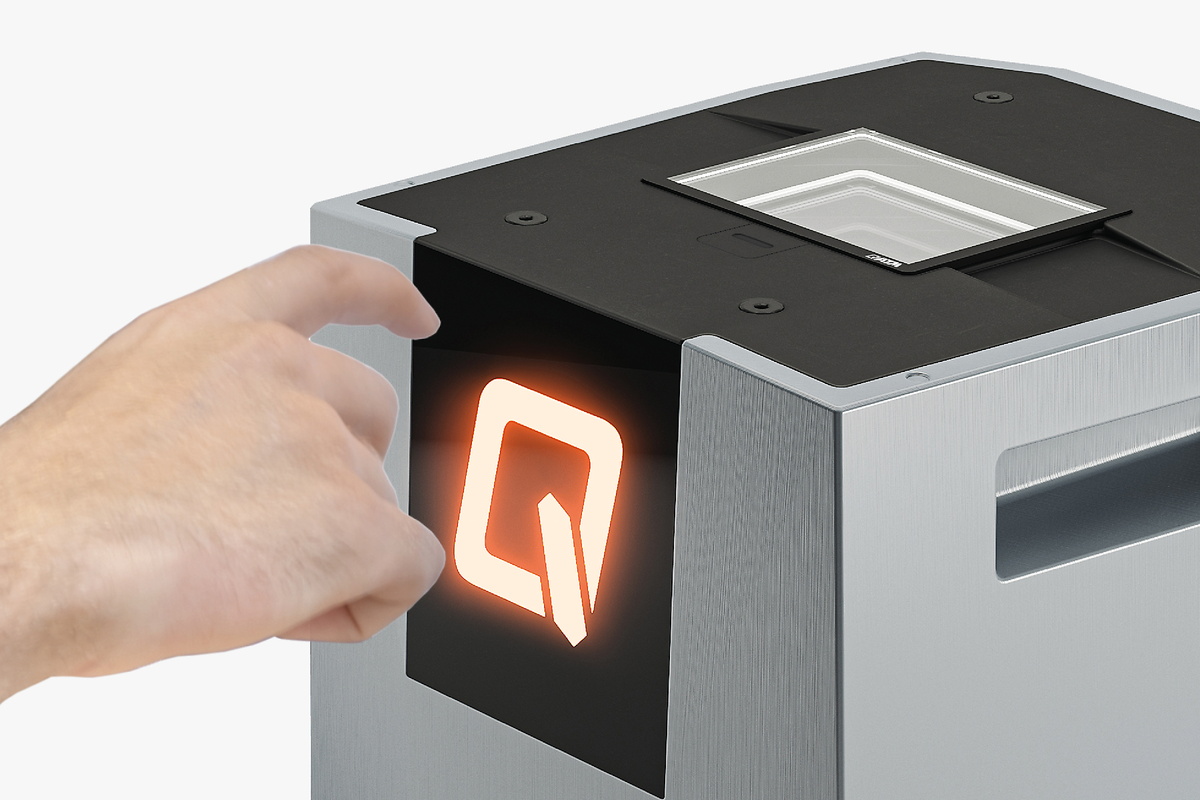

Qeye offers impressive ease of use via freely programmable capacitive buttons. Once centered, the Q lights up to indicate the current status, and used to trigger imaging. The buttons located in the corners can be configured to control LED illumination, zoom, field of view and brightness. The soft-touch control panel is responsive, even when used with gloves.

Touch control panel

35 times combined zoom

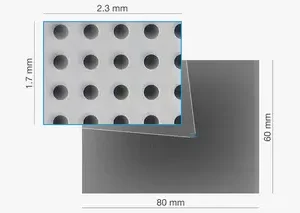

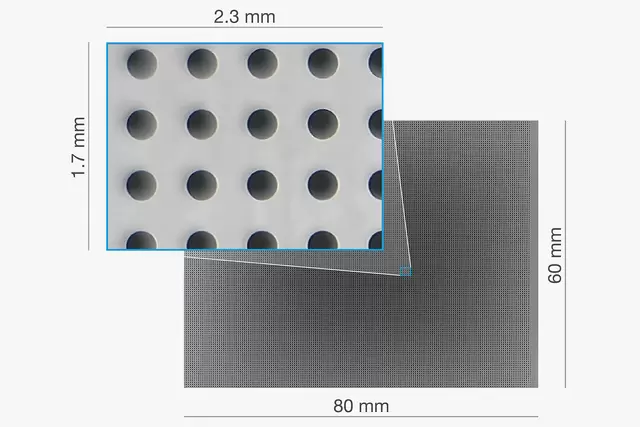

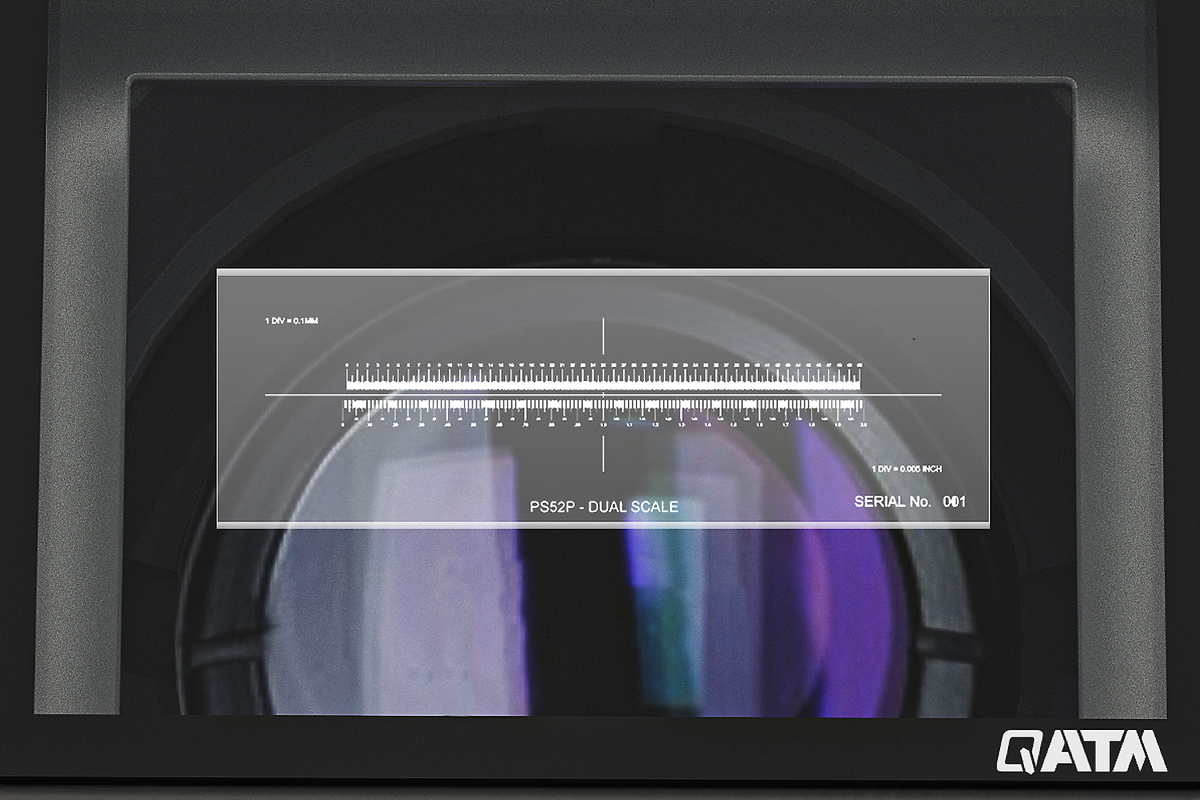

The Qeye’s optical system allows the variation of the field of view between 80 x 60 mm and 2.3 x 1.7 mm. By zooming in optically as well as digitally, a combined magnification of 35 times is achieved. This allows the user to see smallest details, while keeping the overview.

35 times combined zoom

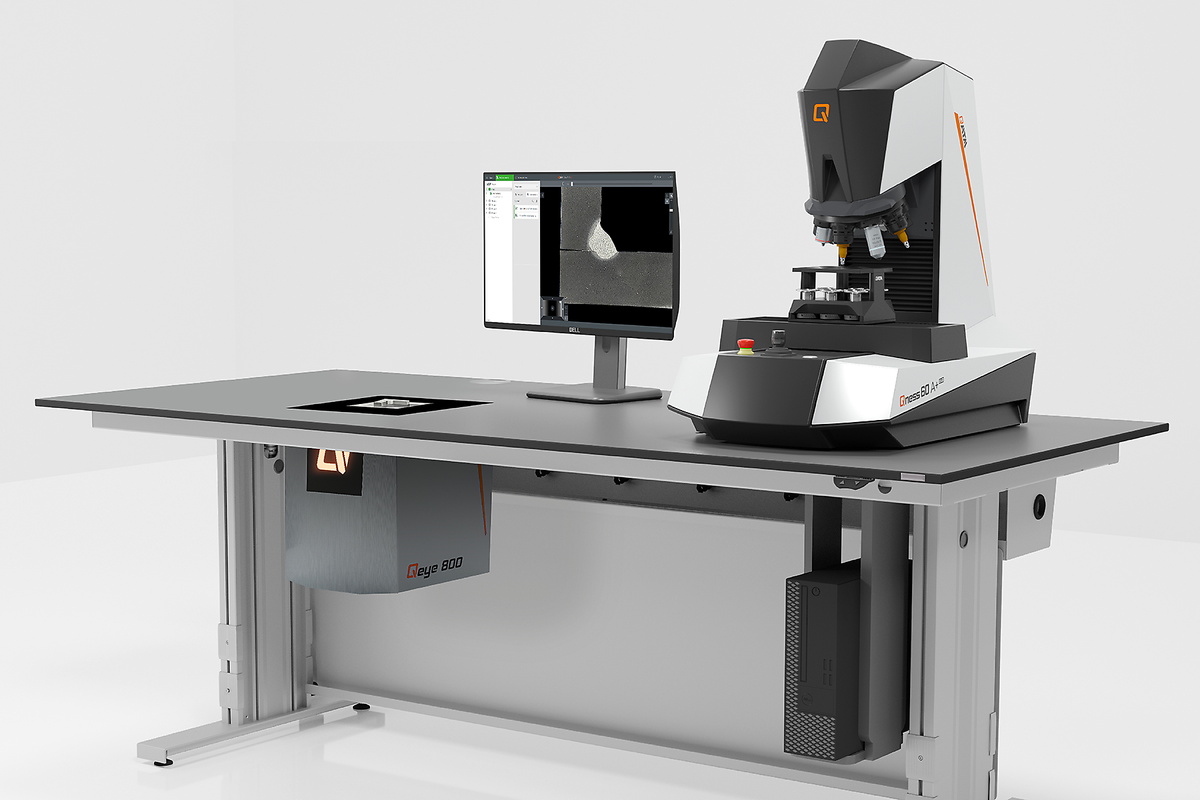

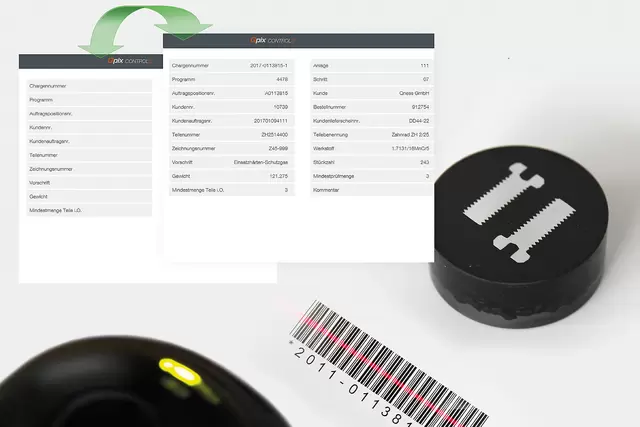

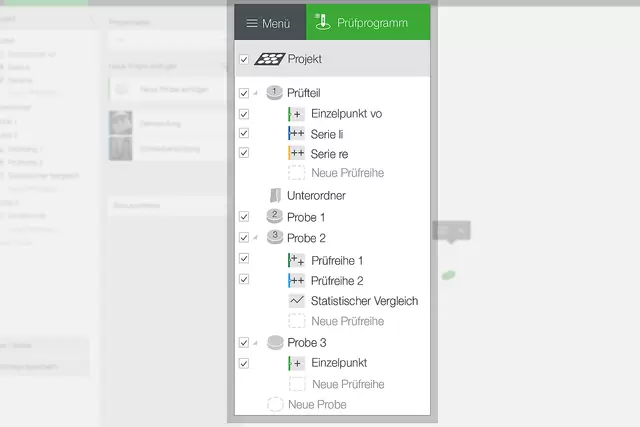

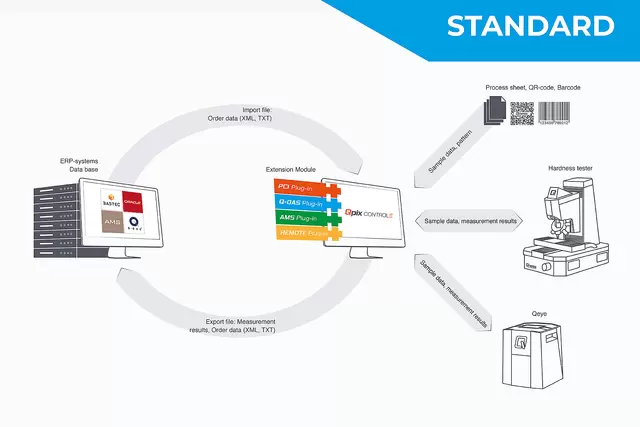

Operated by tried and trusted Qpix Control2 software. Combination of hardness testing and optical analysis in a familiar user interface using just one PC. Efficient measurement and inspection of weld specimens in seconds, live image, 3D Smartview and a uniform reporting system for hardness testing and macro analysis.

Zoom	optical: 1x - 20x, digital: 30x - 35x
Camera	4K Ultra HD - 8.5 megapixel - USB 3.0
Illumination	IAI - LED unit (Intelligent Area Illumination)
Software	Qpix Control2
Machine operation	external PC system (Windows 11 64-bit)
Dimensions glass sample carrierr (L x W x H)	95 x 75 x 2 mm (3.7 x 3.0 x 0.08“)
Max. sample weight	5 kg (11 lbs)
Interface	1 x USB 3.0
Power supply	100 - 240 V ~1/N/PE, 50 - 60 Hz
Power Consumption	Idle: ~35 W Operation: ~60W Max. ~100 W

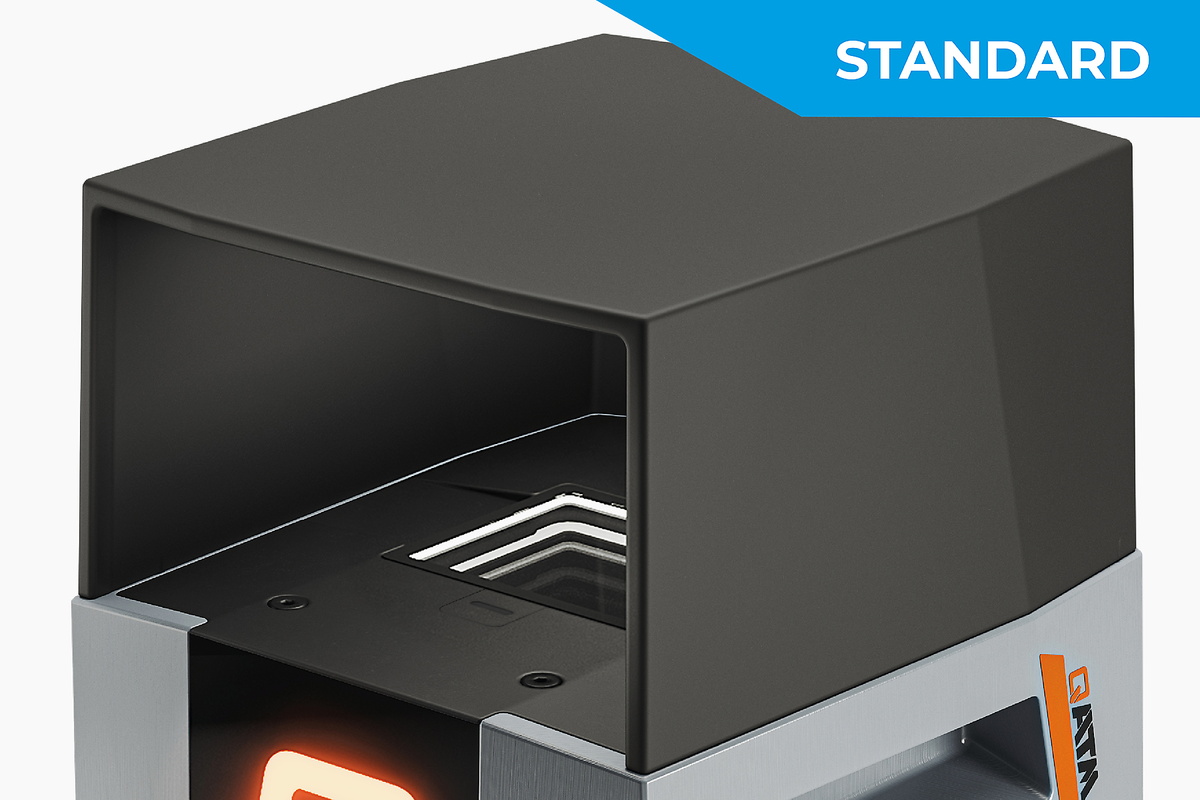

Dimensions	220 x 220 x 260/365* mm (8.7 x 8.7 x 10.2/14.3“) *inkl. Qeye cover
Space requirement	300 x 300 mm (11.8 x 11.8“)
Weight	16 kg (35.3 lbs)
Ambient temperature	18 - 28 °C (64 - 82 °F)
Humidity maximum	maximum 70 % - non-condensing
