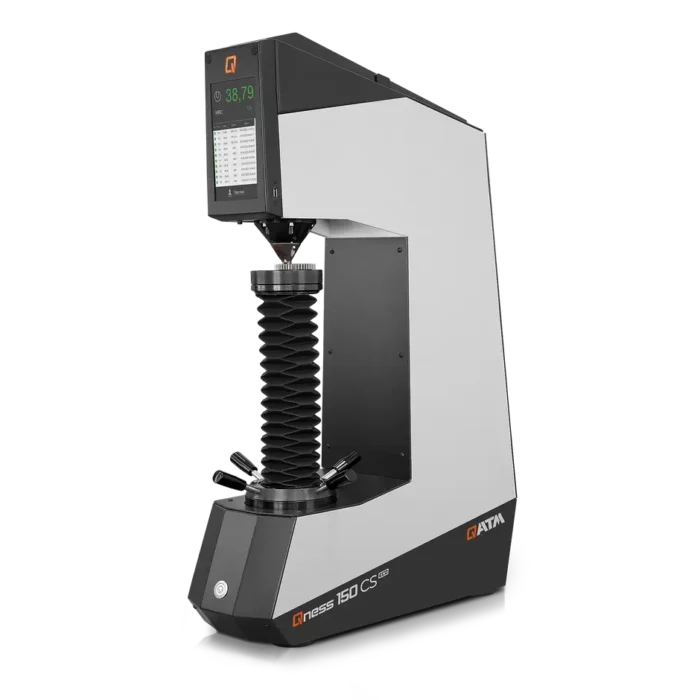

The Rockwell hardness tester Qness 150 CS combines high-quality workmanship with maximum operation simplicity. The characteristic “C” shaped machine frame in robust and compact design (“S” for “small”) gives the product its name.

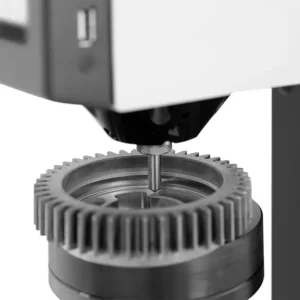

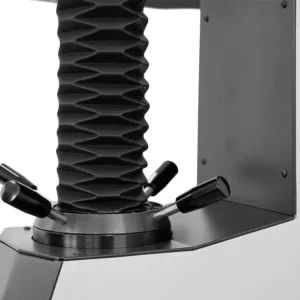

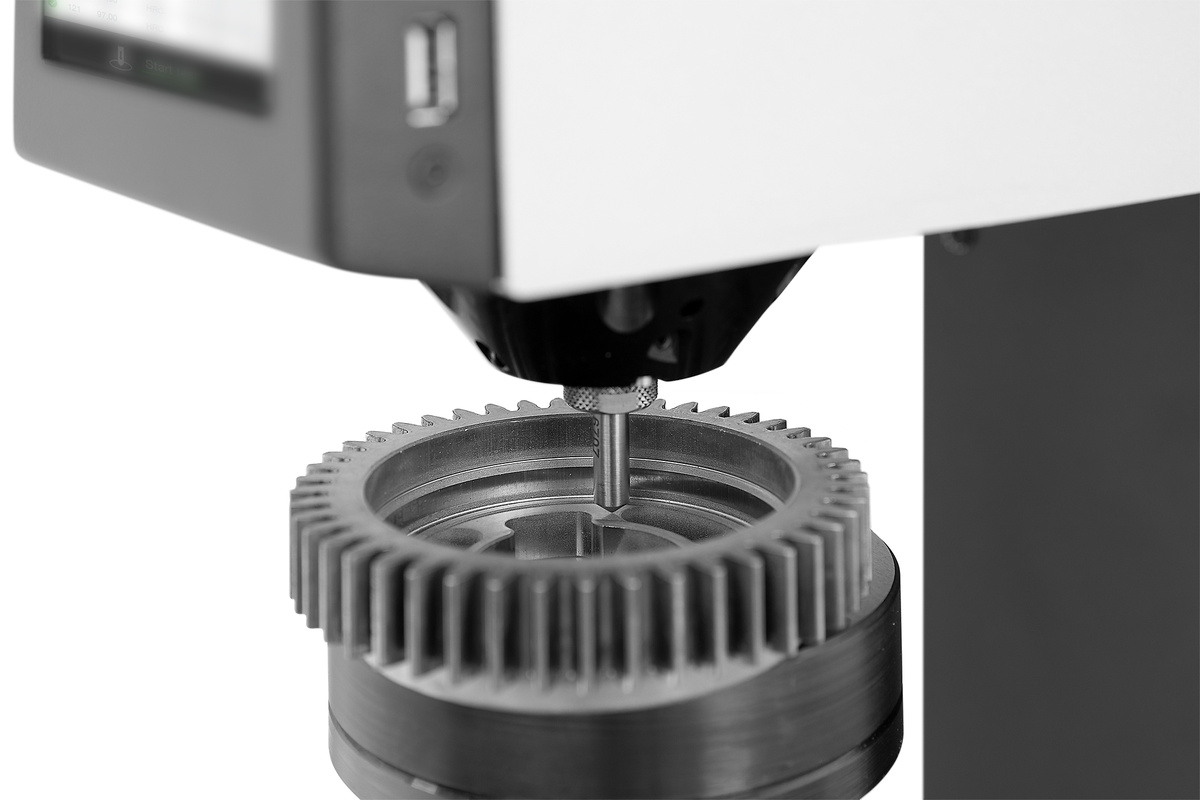

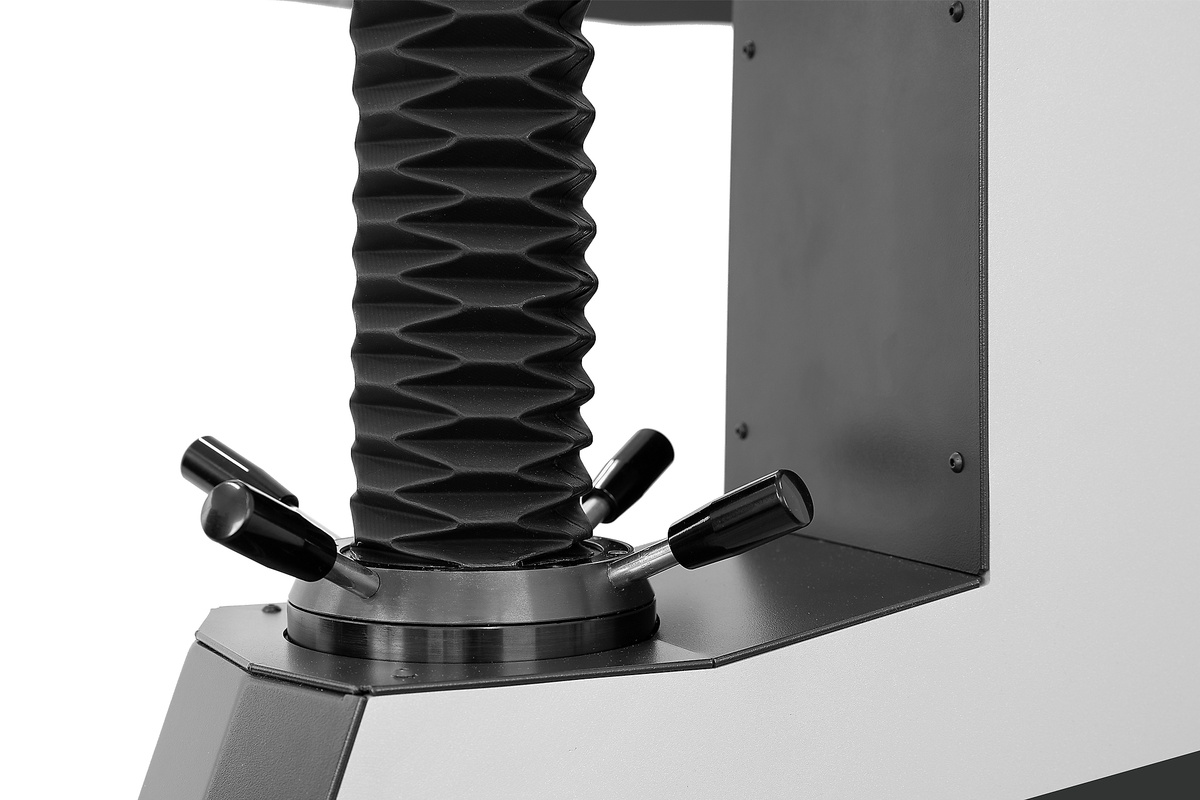

The proven concept with fixed test head and up/down moving spindle has been standard in Rockwell hardness testing for many decades and is ideally suited for small to medium-sized test pieces and application in almost any work surroundings.
Product Advantages
- Large test force range (1 kg – 250 kg)
- Direct depth gauging system
- Robust, welded steel frame
- High-quality steel sheet covers
- Integrated LED workspace lighting
- Capacitive 7” touch screen display
Maximum QATM-Standard precision
QATM configures the Rockwell hardness tester Qness 150 CS and CSA+ with a direct, ultra-precise HEIDENHAIN depth-gauging system, positioned exactly on the axis of the indenter. This omits measurement inaccuracies caused by deformation in the system. Another unbeatable benefit: Indenting depth can be gauged directly – and can be easily calibrated in accordance with the latest Rockwell norms.
Rockwell Hardness Tester QNESS 150 CSOperation display and Qpix TE-software

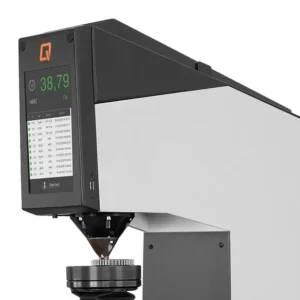

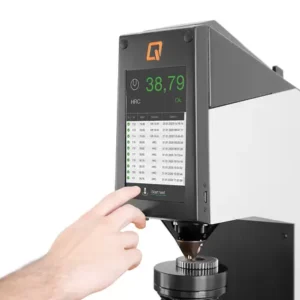

We have developed a 7” color display with a robust sheet steel frame for the new Rockwell hardness tester series. The display uses capacitivetouch technology and has been optimized to guarantee operational precision and rapid reaction times. The new Qpix TE software guarantees simple operation with larger buttons and a more modern and intuitive software interface.
Features:
- Extra-large, clearly-visible presentation of test results
- High-/low-quality evaluation of results featured in green and red according to the tolerance levels set
- Test results list for 999 values
- Statistics overview (min/max/range/cp/cpk/average)
- Conversion
- Surface corrections
- Simple test method changeover
- Wide range of operating languages
- Password protected area for expanded range of settings
