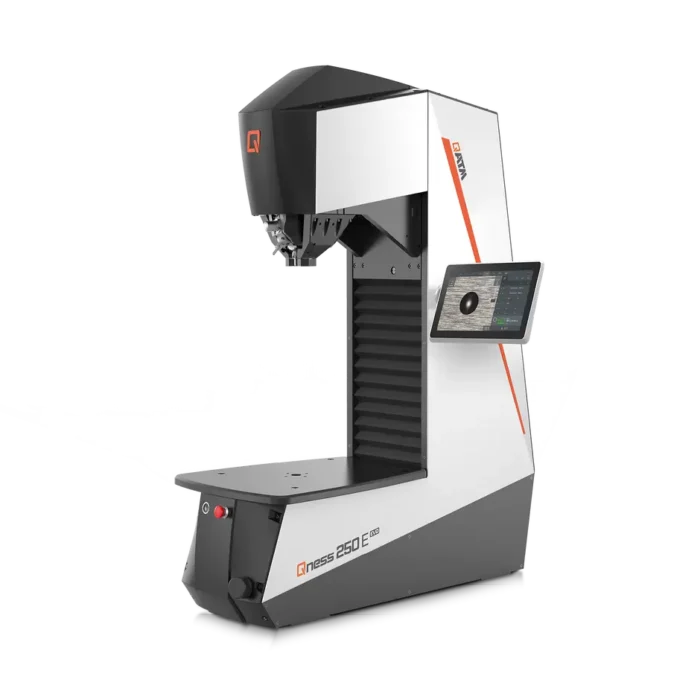

A hardness tester for all purposes: no matter if operated in a laboratory or in a rough production environment.
The fixed component support and extra-large test table area allow hardness testing of even the largest components.
In the “E” version, the test head is conveniently and dynamically controlled by the integrated asynchronous motor. Test pieces of virtually any size, weighing up to 3500 kg, are securely clamped in the device. The maximum test height is 510 mm.

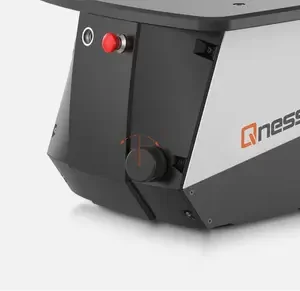

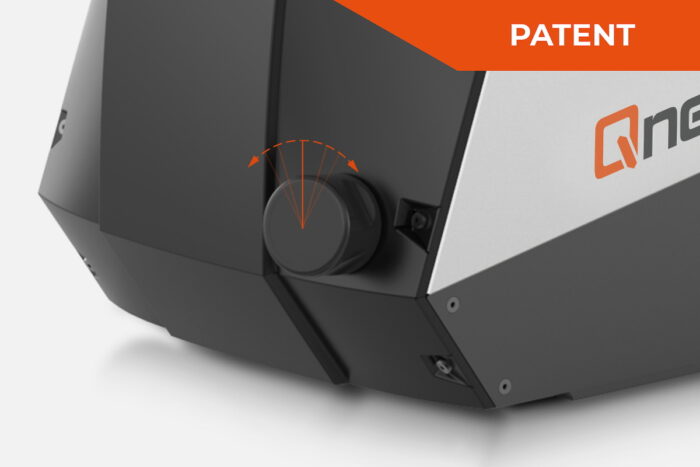

The dynamic height adjustment enables comfortable positioning control via potentiometer (8 mm/s). Using the 2-hand-safety device allows a moving speed of up to 17 mm/s (included with E variant).

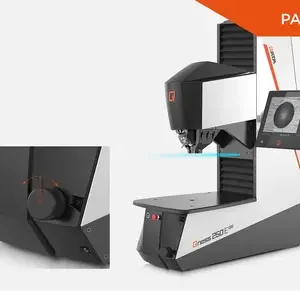

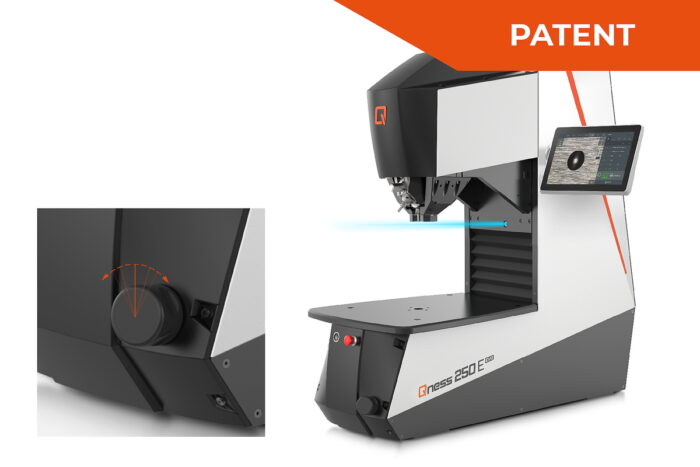

Workpiece recognition with motorized height adjustment facilitates a high test head movement speed of 17 mm/s. Sensor technology enables the workpiece to be recognized and the bracing speed to be reduced accordingly to protect the device and workpiece.
No long tool changeovers for inaccessible test positions. The downholder can be swivelled in and out via manual or motorized action, as required. Furthermore, the clamping elements can be changed easily and adapted to suit the customer‘s component.

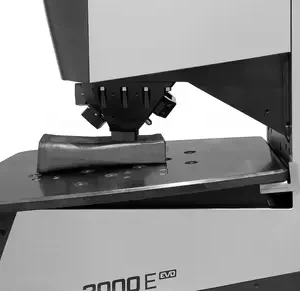

Unique operating convenience for large, awkwardly-shaped moulded and formed components and workpieces. The work table, optional with the M and E versions, can be tilted up to 5° – including built-in grips – no extra workpiece clamping necessary!

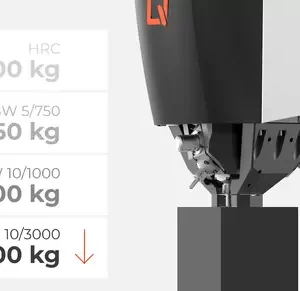

High-performance induction motor in the E version facilitates a workpiece clamping force of up to 3500 kg. Clamping power is adapted to the test method and is automatically set to be greater than the test force. Operators do not need to set levels and can rely on the device to guarantee safe, optimized adaption.
| Supported test methods | Brinell, Vickers, Rockwell, Knoop, Plastics |
| Test force range | Qness 250 E EVO: 1 - 250 kg (9.81 - 2450 N) Qness 750 E EVO: 0.3 – 750 kg (2.94 – 7358 N) Qness 3000 E: 0.3 - 3000 kg (2.94 - 29430 N) |
| Height adjustment | electrical / asynchron motor |

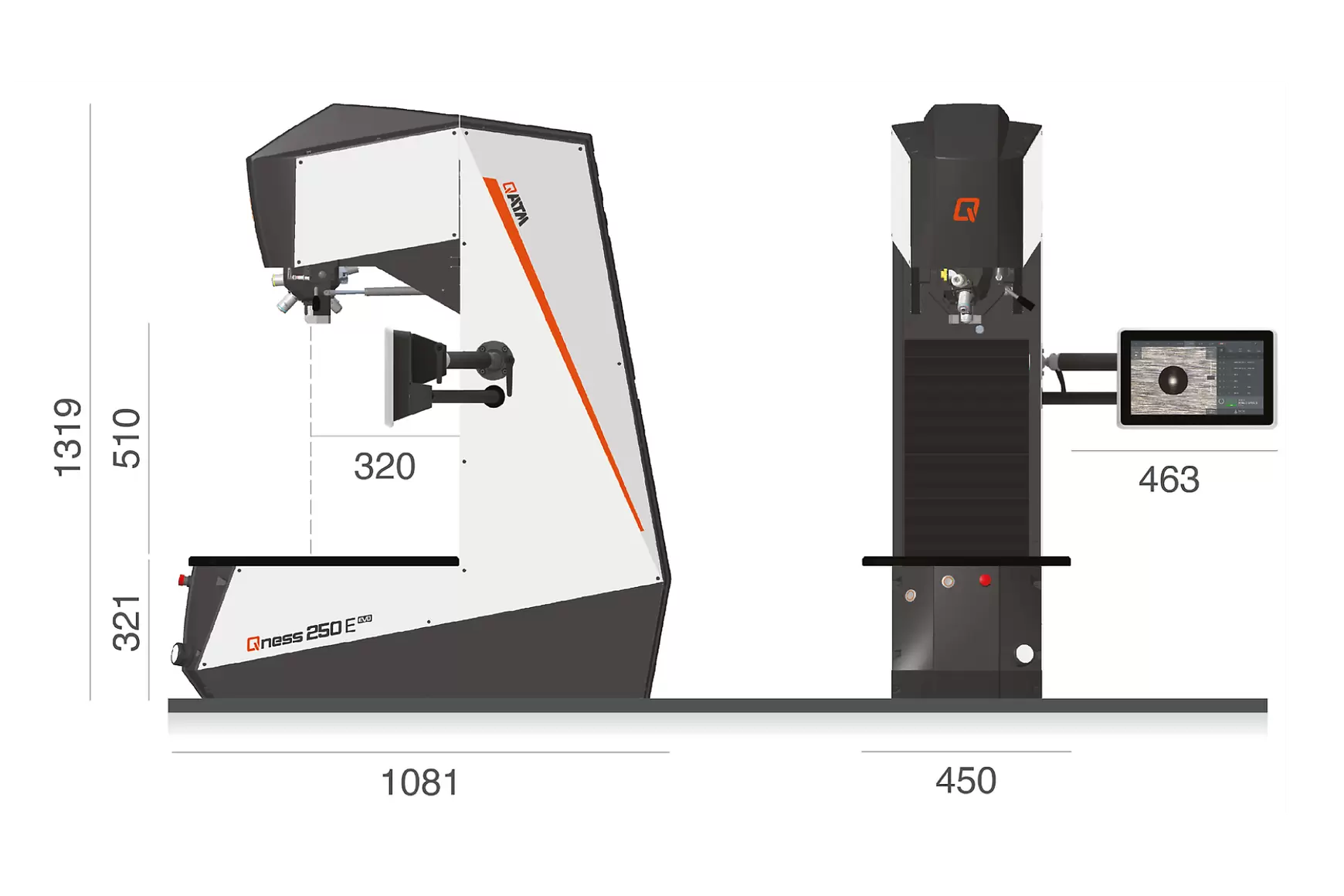

| Test height / Throat depth | 510 mm / 320 mm |
| Test anvil | 584 x 450 mm |
| Max. work piece weight | "unlimited" |
| Weight of basic machine | 500 kg |
| Test sequence | fully automatic / electronic force control |
| Camera system / Image transfer | 5 MP Ethernet Industrial standard / up to 270FPS |
| Tool positions | 2 (Standard) oder 8 (Tool Changer) |
| Software | Qpix T2 (Option: Qpix CONTROL 2 M) |
| Operating system / Hard disk | Windows 10 IoT / 128 GB SSD |
| Data interfaces | 1x USB (Front) 4x USB, 2x RJ45 (Ethernet), 1x DisplayPort, 1x RS232, 1x HDMI |
| Lenses | XLED 1, XLED 2, XLED 5, 5x, 10x, 20x, 50x, 100x |
| Fields of view (depending on tool selection) | 0.113x 0.084 mm (100x) up to 7.98 x 5.97 mm (XLED 1) |
| Display | Capacitive 12“ Touch - Display |
| Power supply | 230~ 50-60Hz 1/N/PE (option: 110~1/N/PE) |
| Max. power consumption | ~ 1230 W |
| Additional options | designer pedestal, collision protection, cross laser, test anvils, prisms, data connections, barcode/QR code reader etc. |
