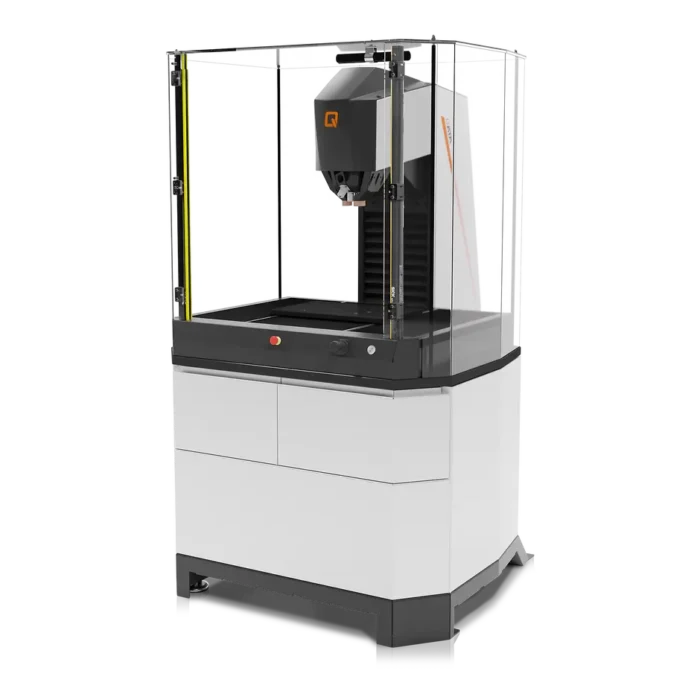

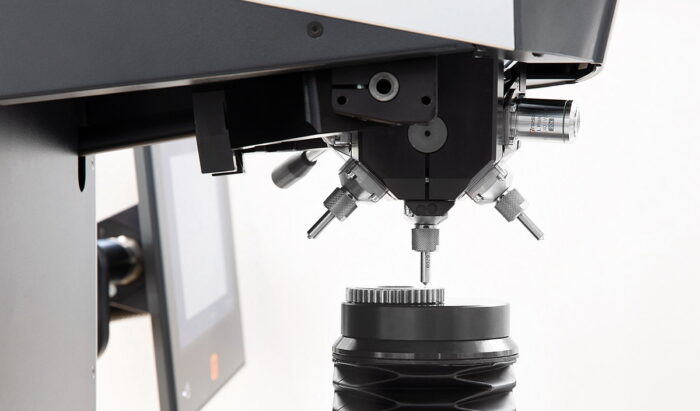

Qness 250 / Qness 750 / Qness 3000 A+ EVO

Fully automated 3-Axis Control

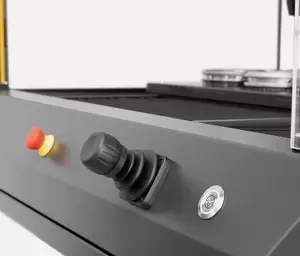

Fully automatic and robust XY slide with high-precision positioning drive. Dynamic joystick to control all 3 axes (XYZ). Usable support surface 450 x 300 mm or, on request, larger travels and test tables available.

Different Test Heights

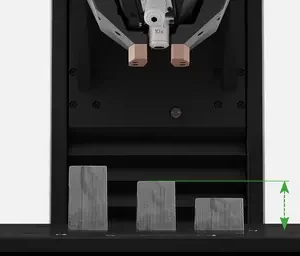

For each XY test point position the Z height can be individually selected. During automatic testing, the machine changes between specimens of different height or different test levels safely and fully automatically. Thanks to the innovative CAS technology, the unit is protected against collisions. When testing clamped samples, the patented QATM “workpiece recognition” reduces the approach speed of the test head automatically via sensor detection (preserves machine and sample).

Maximum Clamping Safety

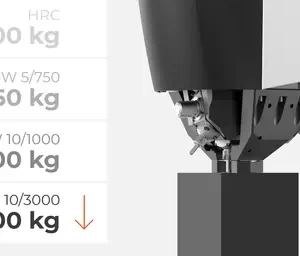

High-performance induction motor in the A/A+ version facilitates a workpiece clamping force of up to 3.200 kg. Clamping power is adapted to the test method and is automatically set to be greater than the test force. Operators do not need to set levels and can rely on the hardness tester to guarantee safe, optimized adaption.

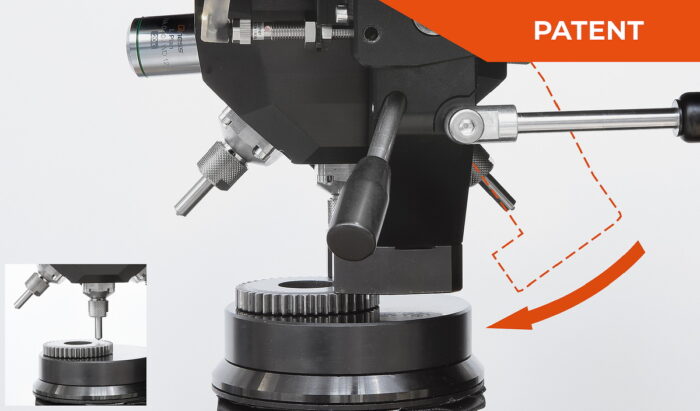

Electric Swiveling Downholder

Qness 250 A/A+ EVO-Version only: For hardness tests according to Rockwell or Brinell, parts securely fixed with the downholder are indispensable. For general processes, such as edge recognition or during the programming of test samples, however, the downholder is not required. Hence, the downholder clamp can be swivelled in or out by motor in a matter of seconds between different processes in the innovative EVO system. This improves operating convenience and further reduces cycle times.
