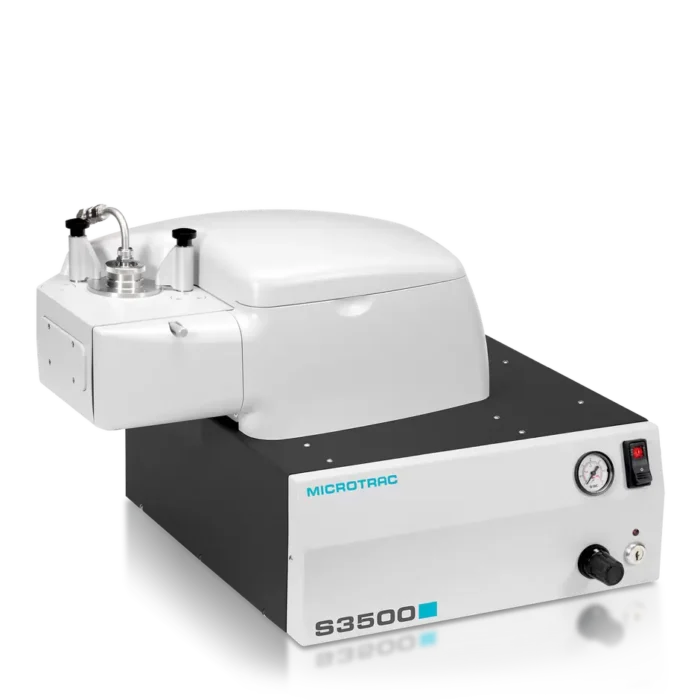

The Microtrac S3500 is a industry-preferred Laser Diffraction (LD) analyzer, ideally suited for various particle characterization tasks. It is the first particle size analyzer that uses three precisely placed red laser diodes to accurately characterize particles like never before.
The patented Tri-Laser System provides accurate, reliable and repeatable particle size analysis for a diverse range of applications by utilizing the proven theory of Mie compensation for spherical particles and the proprietary principle of Modified Mie calculations for non-spherical particles. The S3500 measures particle size from 0.02 to 2,800 µm.
Features
Tri–laser, red, multi-detector, multi-angle optical system
Algorithms that utilize Mie compensation and Modified Mie calculations for non-spherical particles
Measurement capability from 0.02 to 2,800 µm
Wet and dry measurements
Enclosed optical path ensures complete protection of the optical components leading to little or no operator intervention
Product Advantages
Utilizing three red lasers, increases the range of measurement, giving you the flexibility to conduct analysis on a wide range of samples
Proprietary Modified Mie calculations allow users to accurately measure complex particles that other particle analyzer struggle to accurately characterize
Seamless transition from wet to dry measurement reduces down time
Fixed detectors provide rugged durability and assure proper positioning
Small bench footprint reduces demand on valuable laboratory space
Typical Applications
Used in various fields such as: beverages, biotechnology, chemicals, food, medicine / pharmaceuticals, metal powders, metals, pigments, geology / metallurgy, …
chemicals
battery materials
powders
Technical Data
Particle Size Analyzer S3500 Technical Data
Measuring range
0.02 µm – 2.8 mm
Measuring principle
Laser diffraction
Lasers
3x Red 780 nm
Laser power
3 mW nominal
Detection system
Two fixed photo-electric detectors with logarithmically spaced segments placed at correct angles for optimal scattered light detection from 0.02 to 165 degrees using 151 detector segments.
Data
Volume, number and area distributions as well as percentile and other summary data
Data format
Stored in ODBC format in encrypted Microsoft Access Databases to ensure compatibility with external statistical software applications.
Data integrity
Data integrity may be ensured using FDA 21 CFR Part 11 compliant security features including password protection, electronic signatures and assignable permissions
Measuring time
~ 10 to 30 seconds
Power requirements
AC input: 90 – 132 VAC, 47 – 63 Hz, single phase
200 to 265 VAC, 47 – 63 Hz, single phase
Power consumption
25 W nominal, 50 W max. (depending on options installed)
Environmental conditions
Temperature: 5° to 40° Celsius (50° to 95° Fahrenheit)
Humidity: 90% RH, non- condensing maximum
Storage temperature: -10° to 50° Celsius (14° to 122° Fahrenheit) (dry only)
Pollution: Degree 2
Physical specifications
Case Material: Steel and impact resistant plastic
Exterior surfaces are finished with corrosion resistant paint or plating
Dimensions (W x H x D)
~ 560 x 360 x 460 mm (22 x 14 x 18 in)
Weight
~ 27 kg (60 lbs )
Eductor air supply
100 psi (689 kPa) maximum pressure
5 CFM (8,5 m3/h) at 50 psi (345 kPa) minimum flow rate
Free of dry contaminants, moisture and oil
Vacuum
Vacuum must exceed 50 CFM
Content may be subject to modifications or corrections
Versions & Accessories
Capable of Delivering Suspensions to Microtrac Particle Size Analyzers

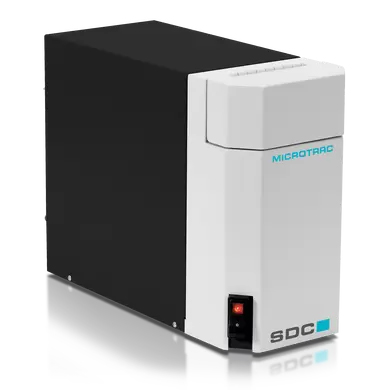

Sample Delivery Controller (SDC)
The Sample Delivery Controller (SDC) works in conjunction with the Microtrac S3500 and Bluewave laser diffraction systems. The SDC is fully automated and is designed to deliver a well-dispersed sample quickly and accurately.
Features
Dispersion vessel constructed of surgical-grade stainless steel
Compatible with organic or inorganic samples
Integrated ultrasonic probe for sample dispersion
Vessel features natural turbulence to ensure sample is dispersed at all times
Self-cleaning mechanism
Product Advantages
Rugged surgical steel construction protects the instrument from corrosion
High compatibility with samples allows for organizations to have multiple purposes for the instrument
Ultrasonic power and duration is programmable
Dry Powder Dispersion Device Combined with Laser Diffraction Systems

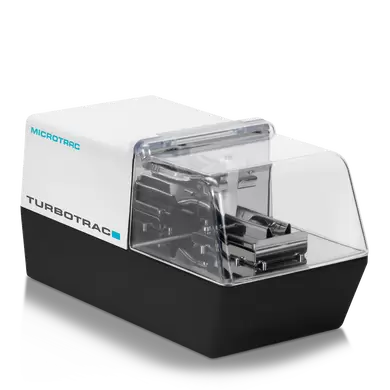

TURBOTRAC
TURBOTRAC’s primary function is to deliver a properly dispersed sample to the measuring cell in the Microtrac optical bench allowing for consistent and repeatable particle size analysis of dry powders.
Features
Flexibility of compressed air and flow conditions settings
Small sample volumes
Rapid measurements
Automatic sampling
Repeatability
Data consistency
Product Advantages
Allows the user to achieve dispersion usually associated with fluid dispersal systems for highly agglomerated materials such as alumina. Dispersion conditions can be altered for the measurement of the most fragile crystals
Sample volumes can be as small as 0.1 ml. Ideal for applications when sample is expensive to produce/ produced in small volumes
Measurement time is typically 10 seconds with the Turbotrac Autoscan – even shorter using the Microtrac One-Shot accessory for very small sample volumes
Microtrac FLEX software facilitates easy programming of measurement cycles. Simply place the sample in the sample tray, enter identifiers and press RUN. Data is saved
Data is comparable to fluid dispersions in most cases
Consistent control of aspiration settings deliver excellent sample-to-sample and bench-to-bench repeatability
Circulation device made for small, high value materials and for dispersing materials in expensive fluids

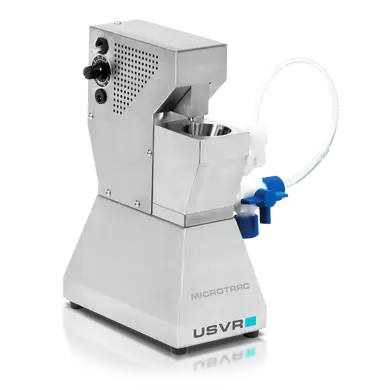

USVR
The Microtrac Ultra Small Volume Recirculator (USVR) works in conjunction with the S3500 or Bluewave laser diffraction systems.
Features
35 to 50 ml recirculation volume
Vessel constructed out of surgical-grade stainless steel
Variable speed centrifugal pump
Compatible with most organic and inorganic solvents
Manual fill and drain valve
Product Advantages
Small sample volume allows users to save lab resources by requiring minuscule sample amounts during particle analysis
Rugged surgical grade stainless steel construction protects the instrument from corrosion when using organic and inorganic solvents
Engineered for quick and easy operation
Easily interchangeable with other Microtrac sampling instruments – decreases production / process downtime
