Unrefrigerated microcentrifuge

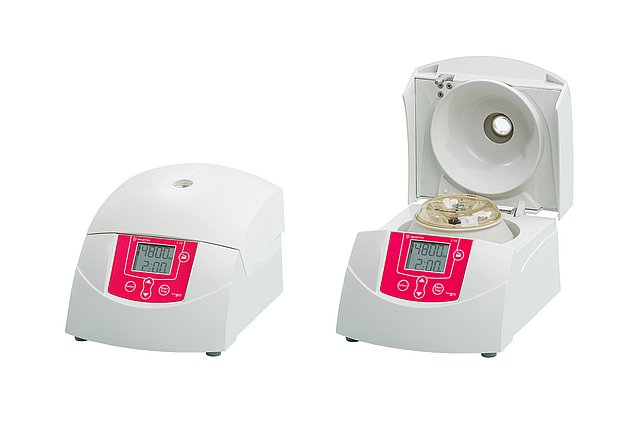

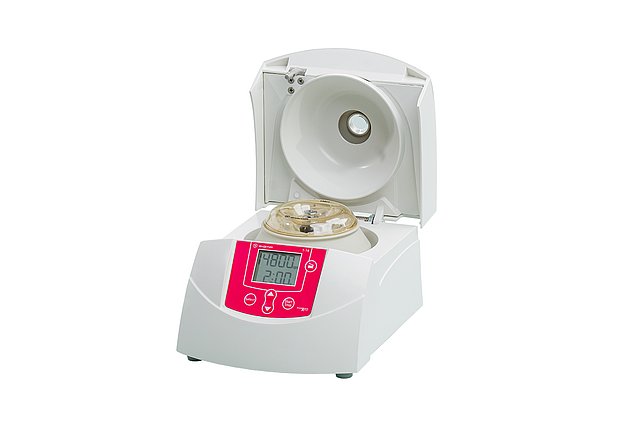

Sigma 1-14 Think Pink Edition
Compact, powerful and versatile
Sigma 1-14 Think Pink Edition supports the fight against breast cancer
The compact Sigma 1‑14 centrifuge fits in every lab and fulfils the most stringent technical requirements. Its strong performance and large range of rotors are unique.
The microcentrifuge not only impresses with its performance data, but also supports the fight against breast cancer in the Think Pink Edition.
For every device sold, we donate EUR 50 to the Think Pink Europe organization in the fight against breast cancer.
Two fixed-angle rotors provide a maximum capacity of 24 x 1.5/2.0 ml. Thanks to rotors for PCR strips, microhaematocrit capillary tubes and filter tubes, the Sigma 1‑14 is an all-round laboratory centrifuge suitable for a wide variety of applications. It is popular for molecular biology applications such as DNA, RNA and protein isolation, clinical chemistry, and in research labs and food labs, universities, and the pharmaceutical industry.
What makes the Sigma 1‑14 mini centrifuge so attractive
The handy Sigma 1‑14 mini centrifuge combines effective performance with reliability. It is pleasantly quiet even at maximum speed, has wonderfully short braking times, is easy to use, and can be closed effortlessly thanks to a motorised lid lock. Customers also appreciate the price/performance ratio.
Fixed-angle rotor
| max. volume | 48 ml |
| max. speed | 14,800 rpm |
| max. RCF | 16,162 x g |
User
- Hospitals
- Infant stations
- Children’s hospitals
- Veterinary clinics
- Food labs
- Universities & colleges
- Pharmaceutical labs
- Cell culture labs
Technical specifications
| Max. capacity [ml] | |
| swing-out rotor | – |
| fixed-angle rotor | 24 x 2 |
| Max. RCF | 16.163 |
| Max. speed [rpm] | 14.800 |
| Min. speed [rpm] | 200 |
| Noise level at maximum speed (approximate) [dB(A)] | |
| Max. acceleration time [s] | |
| Max. braking time [s] | |
| fixed-angle rotor 12094 | ≤ 54 |
| swing-out rotor 11128 with bucket 13128 | – |
| fixed-angle rotor 12094 | ≤ 15 |
| swing-out rotor 11128 with bucket 13128 | – |
| fixed-angle rotor 12094 | ≤ 12 |
| swing-out rotor 11128 with bucket 13128 | – |
| Temperature setting range [°C] | – |
| Power consumption [W] | 95 |
| Height x Width x Depth [mm] | 176 x 266 x 212 |
| Height with open lid [mm] | 310 |
| Weight without rotor [kg] | 6 |
