Refrigerated microcentrifuge

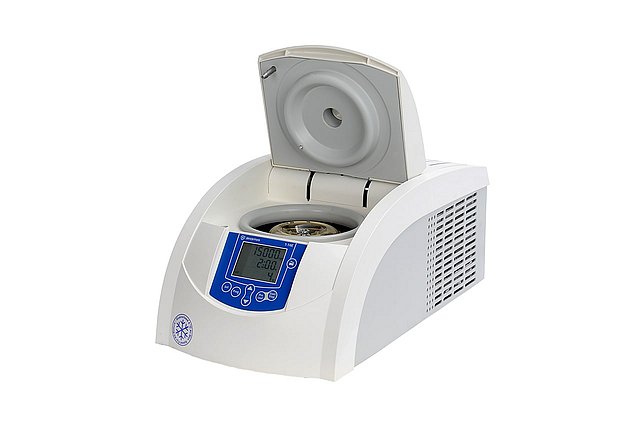

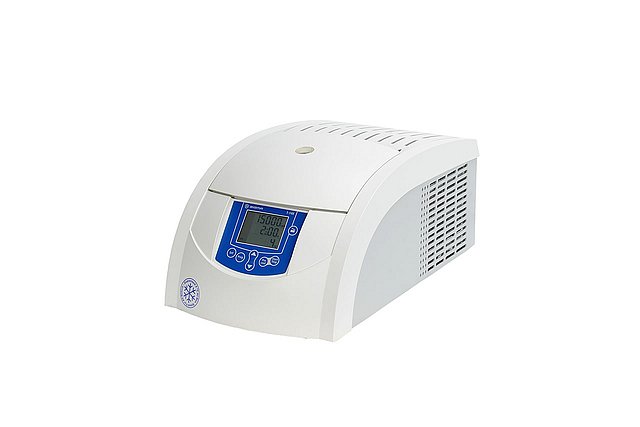

Sigma 1-14K
Compact, powerful and versatile
The Sigma 1‑14K centrifuge has a small footprint, fits in every lab, and fulfils the most stringent technical requirements. Its strong performance and large range of rotors are unique:
Two fixed-angle rotors provide a maximum capacity of 24 x 1.5/2.0 ml. Thanks to rotors for PCR strips, microhaematocrit capillary tubes and filter tubes, the Sigma 1‑14K is an all-round laboratory centrifuge suitable for a wide variety of applications. It is popular for molecular biology applications such as DNA, RNA and protein isolation, clinical chemistry, and in research labs and food labs, universities, and the pharmaceutical industry.
What makes the Sigma 1‑14K refrigerated mini centrifuge so attractive
The handy Sigma 1‑14K mini centrifuge combines effective performance with reliability. It is pleasantly quiet even at maximum speed, has wonderfully short braking times, is easy to use, and can be closed effortlessly thanks to a motorised lid lock. Customers also appreciate the price/performance ratio.
The Sigma 1‑14K is the most compact refrigerated centrifuge commercially available and easily achieves +4°C at maximum speed.
Swing-out rotor
| max. speed | 15,000 rpm |
| max. RCF | 16,099 x g |
Fixed-angle rotor
| max. volume | 24 x 2 ml |
| max. speed | 15,000 rpm |
| max. RCF | 16,602 x g |
User
- Hospitals
- Infant stations
- Children’s hospitals
- Veterinary clinics
- Food labs
- Universities & colleges
- Pharmaceutical labs
- Cell culture labs
Technical specifications
| Max. capacity [ml] | |
| swing-out rotor | 6 x 2 |
| fixed-angle rotor | 24 x 2 |
| Max. RCF | 16.602 |
| Max. speed [rpm] | 15.000 |
| Min. speed [rpm] | 200 |
| Noise level at maximum speed (approximate) [dB(A)] | |
| fixed-angle rotor 12094 | ≤ 49 |
| swing-out rotor 11128 with bucket 13128 | ≤ 50 |
| Max. acceleration time [s] | |
| fixed-angle rotor 12094 | ≤ 16 |
| swing-out rotor 11128 with bucket 13128 | ≤ 18 |
| Max. braking time [s] | |
| fixed-angle rotor 12094 | ≤ 18 |
| swing-out rotor 11128 with bucket 13128 | ≤ 25 |
| Temperature setting range [°C] | -10 – +40 |
| Power consumption [W] | 230 |
| Height x Width x Depth [mm] | 236 x 273 x 515 |
| Height with open lid [mm] | 404 |
| Weight without rotor [kg] | 19 |
| Refrigerant | R513a |
| Charge [kg] / Pressure [bar] | 0,105 / 23 |
| CO2 equivalent [t] | 0,066 |
| Contains fluorinated greenhouse gases in a hermetically sealed refrigeration system. (EU) 2024/2729; 2028-DEC-31. | |
