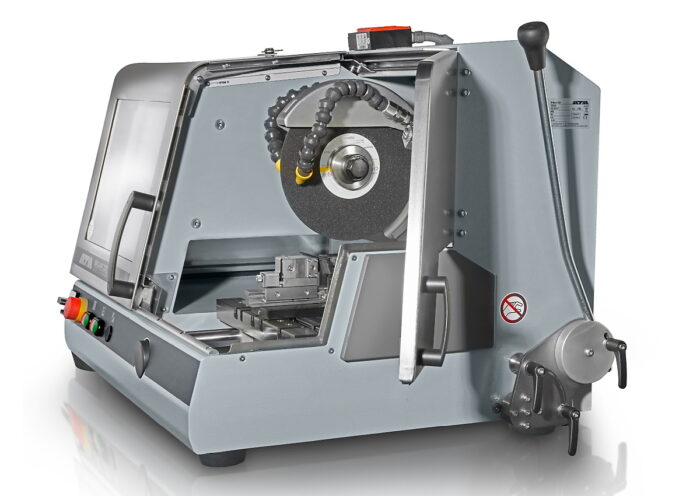

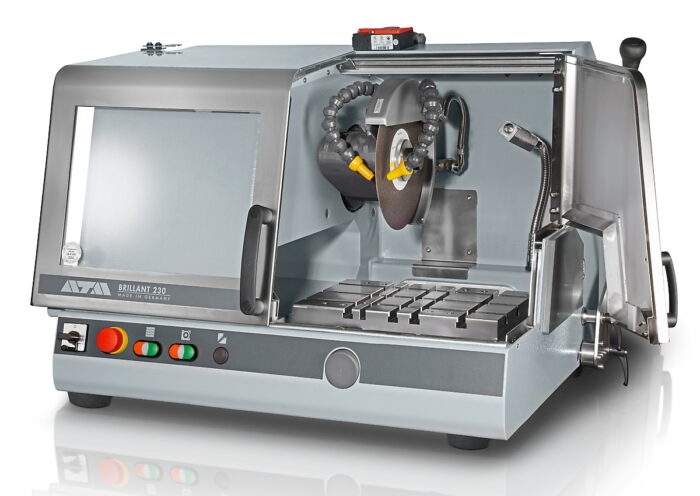

Cut-off machine BRILLANT 230

The BRILLANT 230 is a wet abrasive cut-off machine with fine dynamic, manual wheel movement into samples up to Ø 110 mm. The spacious cutting chamber allows various clamping variations. The solid aluminium design of the cutting machine comes with openings on the right and left hand side for cutting continuous long parts.

Product Advantages

  • Precise manual vertical movement
  • Large cutting chamber
  • Opening on left- and righthand side for continuous long materials
  • Large table, individually adjustable in x-direction
  • Sliding door and side door for superior accessibility
  • User friendly
  • Safety standard with door interlocking system
  • Flange with ceramic protector
  • Easy nut
  • Cutting chamber illumination with LED flex light
  • Large range of different clamping tools and systems available
  • Solid aluminium case construction, powder coated

Fine dynamic cut-off

With the manual cutting movement, the cutting force is regulated through a set of gears. The cut is thereby yerk-free and more precise. The easy-to-use lever brake fixes the cutting disc in any position.

Innovative details

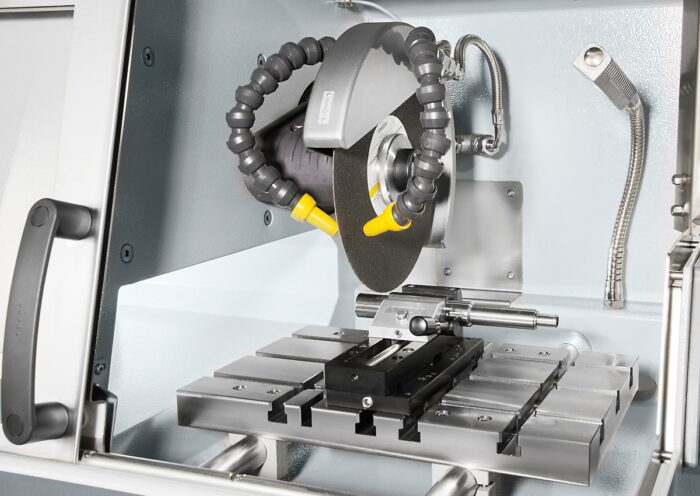

The sliding front door and the side door with safety interlock allow easy and optimal access to the cutter chamber. Further, the LED cutting chamber illumination is energy-saving. The arbour is protected against wearing by an interchangeable ring.

Manual horizontal movement

The manual horizontal movement allows cutting long parts longitudinally and easy positioning of the sample below the cut-off wheel.

Z-axis

The manual Z-axis can be adjusted with 0.1 mm precision for parallel cuts.

Technical Data

Cutting wheel up to ø 300 mm/12"
Max. cutting capacity ø 110 mm
Wheel flange size ø 32 mm
Y-axis (vertical movement) 125 mm
Table WxD 380 x 250 mm, stainless
T-slot 12 mm
Connection power 6 kVA
Drive power (main drive) 4 kW S1
Speed 2750 rpm

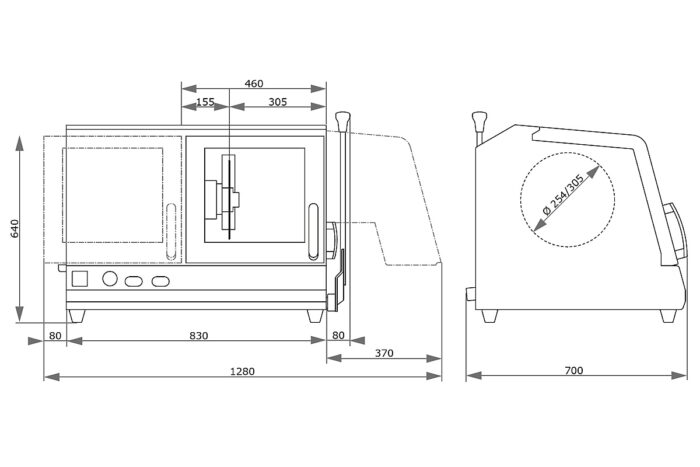

W x H x D 830 x 640 x 670 mm
