Cut-off machine Qcut 400 A

he universal wet-abrasive cut-off machine Qcut 400 A with automatic travel and cut-off allows precise, soft touch cutting with 2 axes in arbitrary directions (Y/X axis) and can be equipped with an automatic or manual Z-axis for parallel serial-cuts (option). The newly developed intuitive user software with graphical LCD interface makes the automatic process sequence easy and clear.

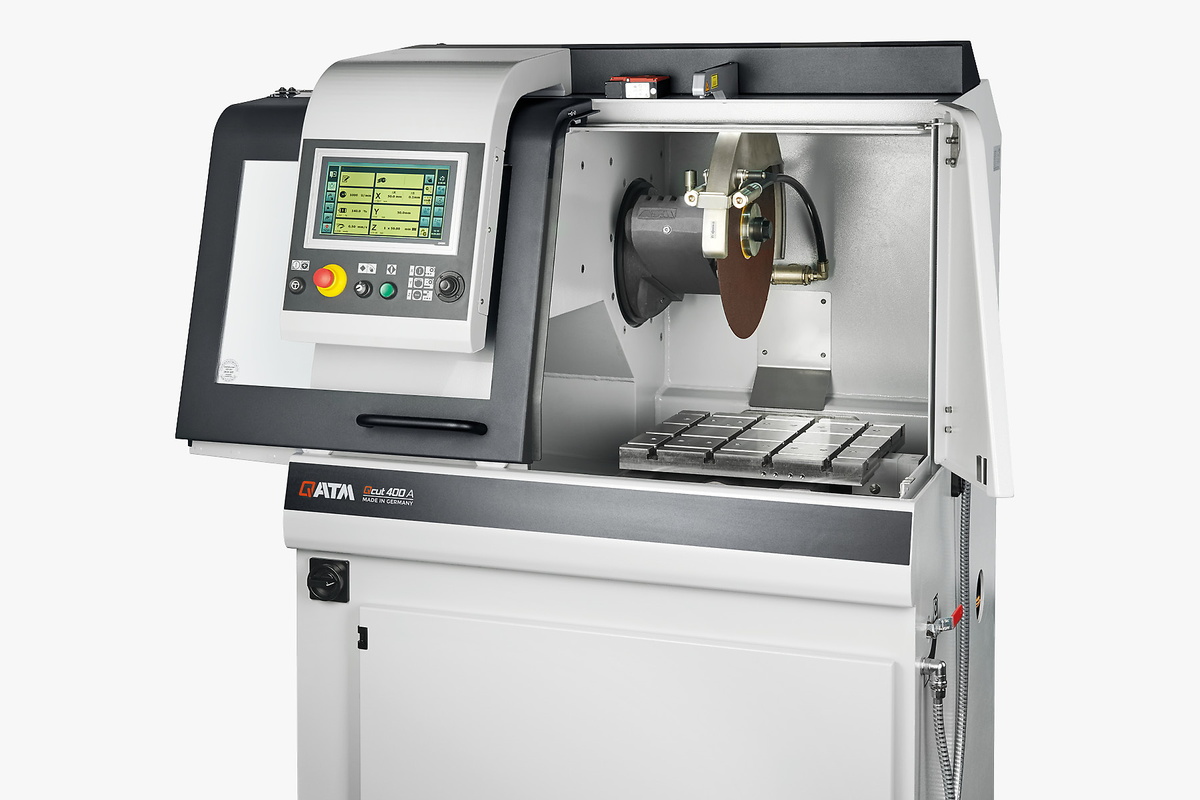

Large cutting chamber of solid, powder-coated aluminum
Easy access through sliding and side doors

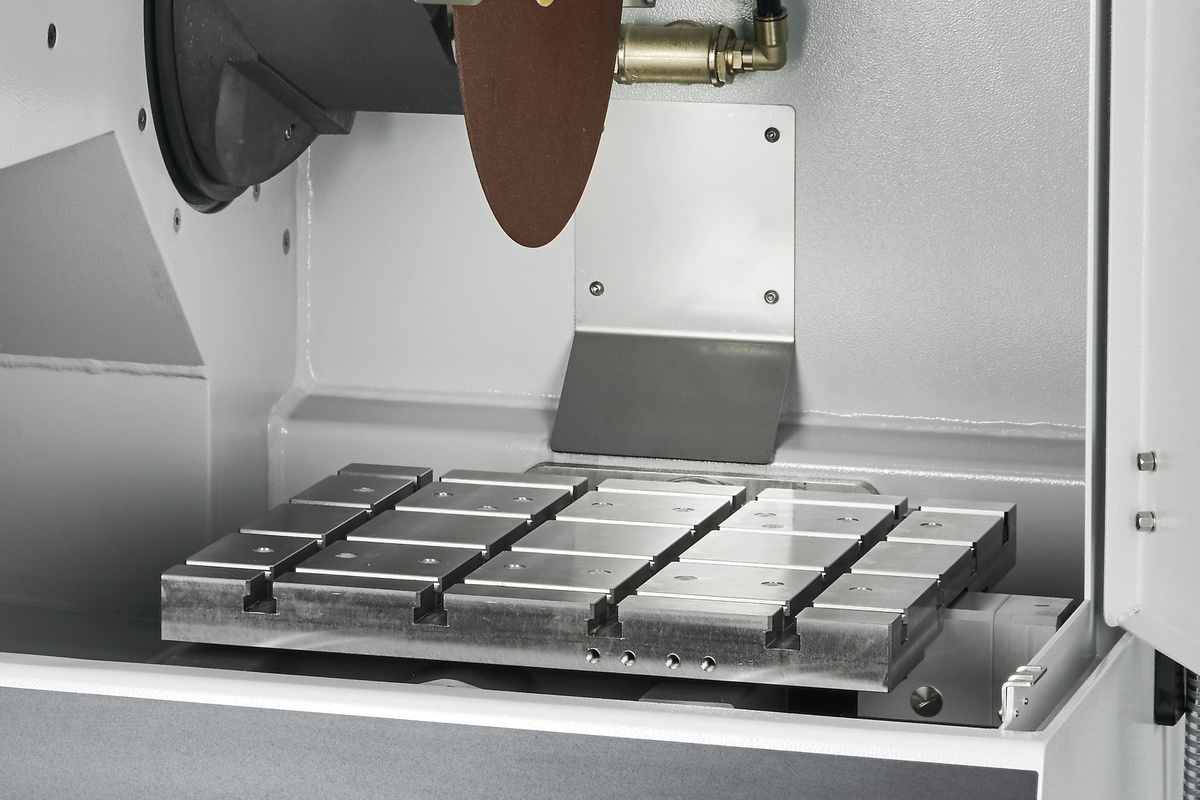

Secure fixing of complex samples on T-slot table with reliable clamping systems
Quick-Change system for easy maintenance and cutting disc replacement
Energy-saving, damage-resistant LED illumination for optimum lighting

Product Advantages

Automatic horizontal and vertical movement (X- and Y-axis)
10.1″ Touch-Screen user interface with intuitive QATM user software
Superior LED illumination of cutting chamber
Parallel setting of wheel guard during cutting sequences increases cutting capacity
Opening on the right for long parts
Automatic touch detection
Cutting-force dependent feed control (X- and Y-axis)
200 customized programs storable

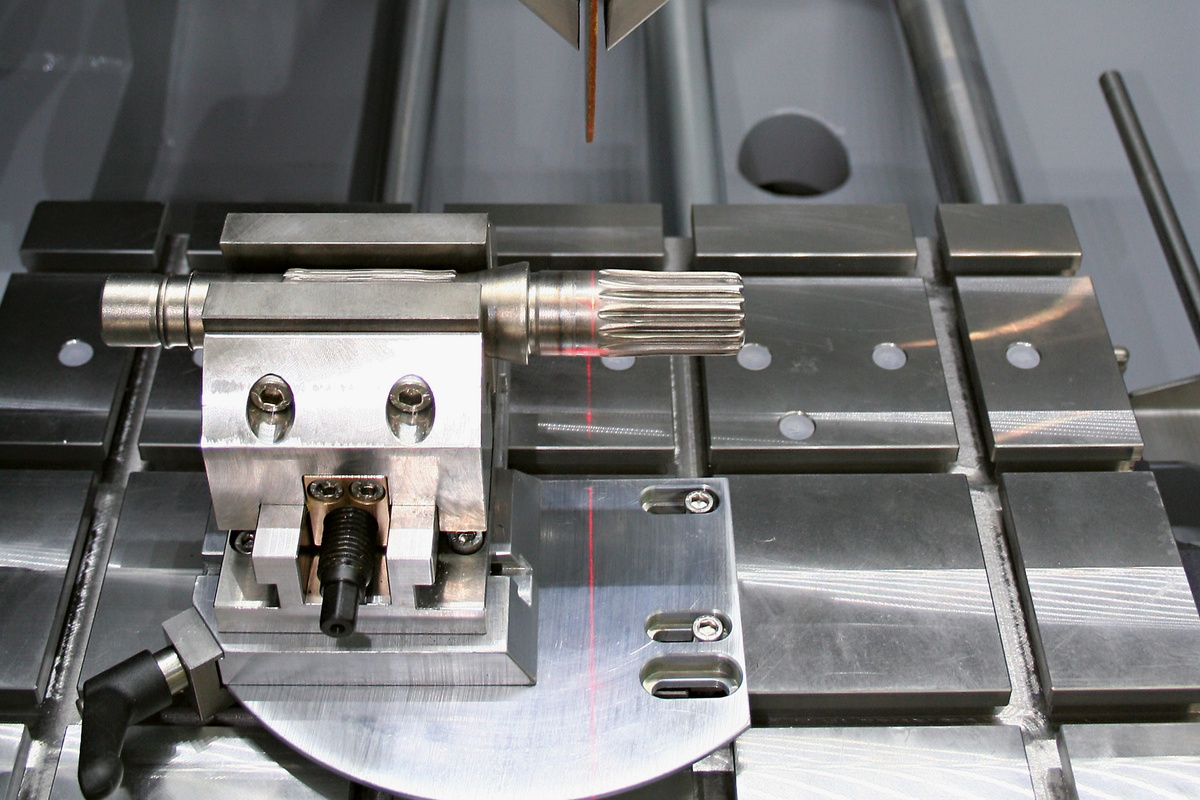

Precision cross feed

The Z-axis is integrated in the table. This allows keeping the cutting height at the same level. The automatic cross feed with serial cutting function produces precise parallel cuts.

Safety

Integrated safety protection only allows the automatic doors to be opened when the cutting wheel has stopped rotating.

Laser alignment

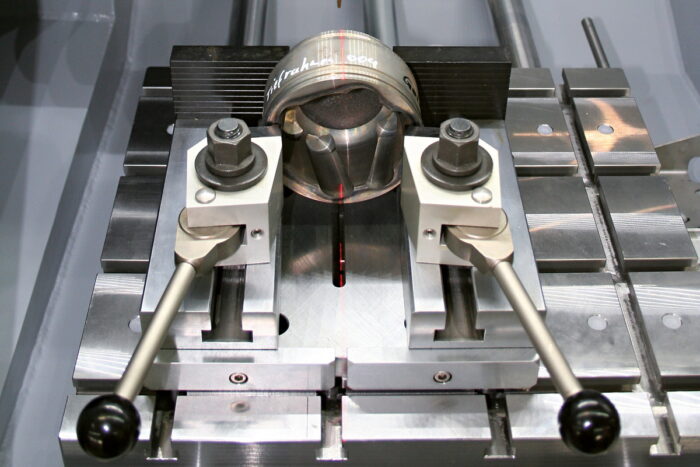

With the optional line laser the cutting line can be projected on the sample. This helps to define the exact cutting position.

Rotation Tool

The optional Rotation Tool features a vertical rotary feed parallel to the wheel with angle input controlled via software.

Electronic control

With the electronic control, all cutting parameters can be saved and loaded again. Maintenance tasks can also be stored in a customer-specific manner. During the automatic cutting process, all parameters such as feed speed, cutting force etc. can be modified.

Program cycle

By pressing the start button, the main motor and the feed are activated. The integrated cut detection ensures a constant cutting behavior, even when the cutting disk wears during sectioning. The feed speed is automatically decreased when an overload occurs during the cutting process.

Pulsed cutting

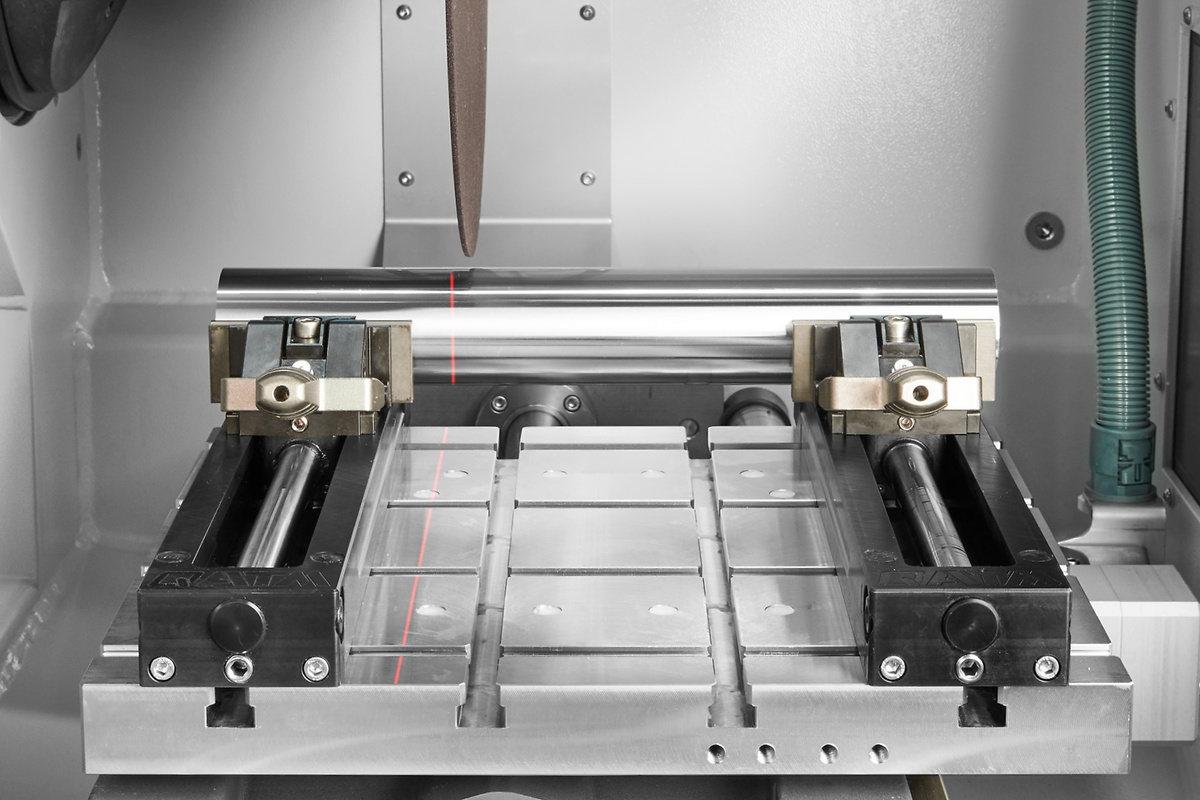

Especially when the material is thick and difficult to cut, the adjustable automatic pulsed-cut offers advantages such as gentle cutting and optimal cooling of the intersection area.

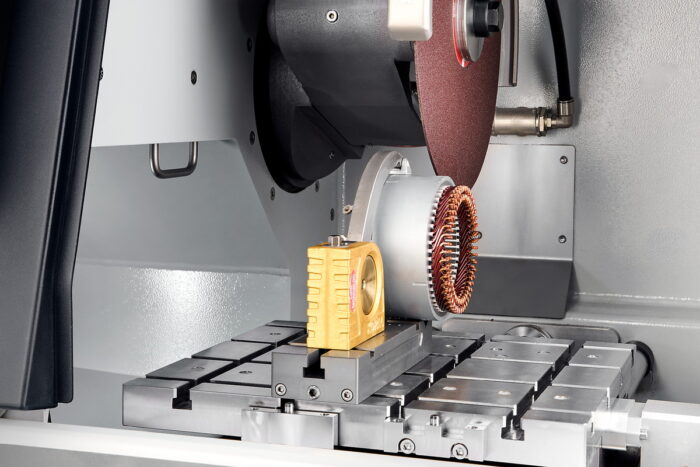

Cutting force dependent feed control

The feed speed automatically decreases when the cutting force reaches a pre-defined limit. This protects the machine, sample and clamping tools from overloading

Technical Data

Cutting wheel	up to ø 406 mm/16"
Max. cutting capacity	ø 150 mm
X-axis automatic	345 mm
Y-axis automatic	200 mm
Z-axis manual or automatic (option)	150 mm
Precision Z-axis	0.1 mm
T-slot	12 mm
Speed	variable
Connection power	17 kVA
Drive power (main drive)	7 kW, S1

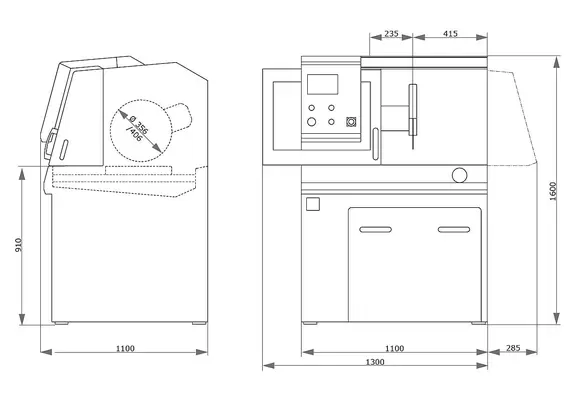

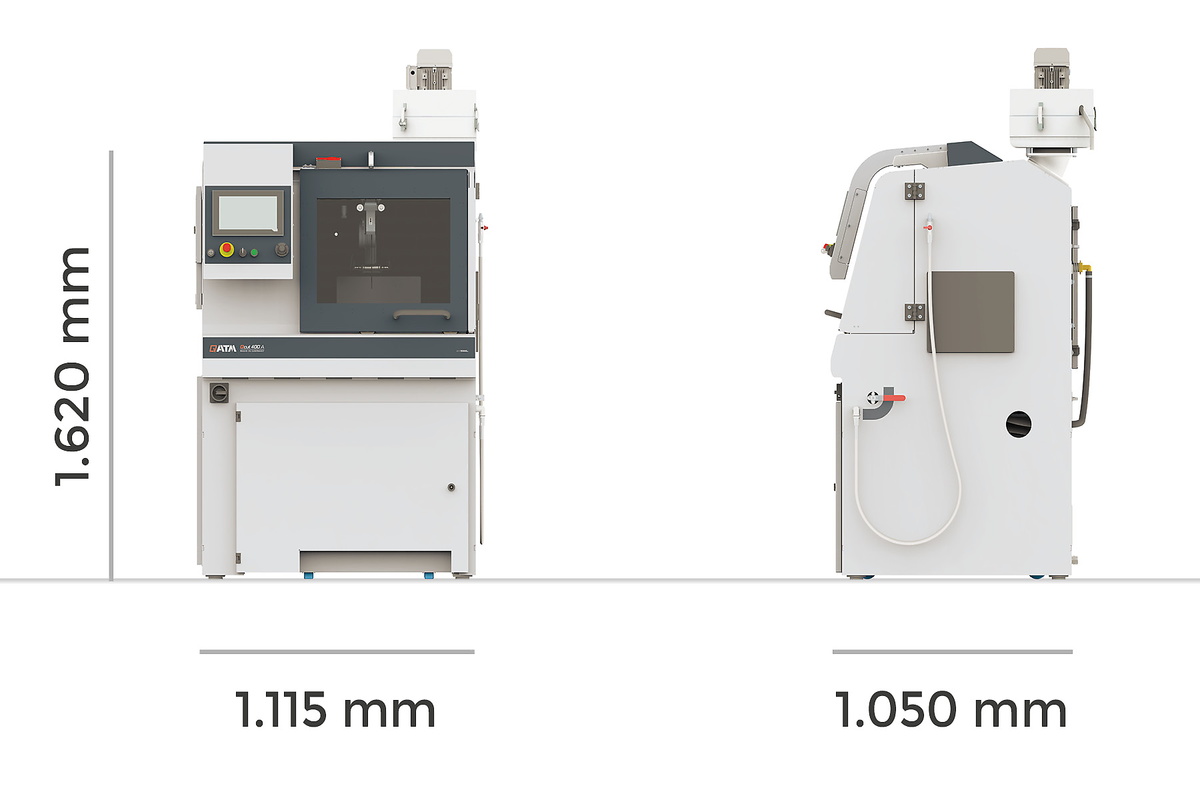

W x H x D	1100 x 1610 x 930 mm
Weight (depends on equipment)	~ 480 kg
