Labculture® G4 Class II Type A2 Biological Safety Cabinet

Labculture® G4 Class II Type A2 Biological Safety Cabinet

The new BSC with Centurion Touchscreen controller is NSF-certified and available in three sash height openings: 8″, 10″, and 12″ inches, with standby height that easily activates standby mode.

Labculture® G4 (LA2 G4) ergonomic work zone is comprised of bright illumination using industry-leading dimmable LED combined with raised, durable, stainless-steel armrest and large, recessed, spill-containing work tray devised for optimum work comfort.

Request Quote
SKU: LA2-S G4 Category: Tags: , , , , , , , , , , , , , , , Brand:
Share

Features

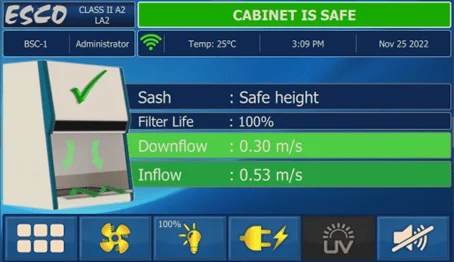

Centurion Touchscreen Controller

  • Intuitive, comprehensive, and easy-to-understand
  • Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram
  • Defined details of alarm types with clear instructions for proper intervention
  • Centered and angled down for easy reach & viewing
  • Selectable Quickstart mode for fast operation

Dimmable LED

  • Adjustable work zone brightness
  • Ideal light intensity of 1200 lux
  • Saves energy and optimizes work comfort

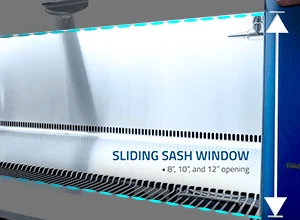

Ergonomic Sash

  • Available in 8”, 10”, and 12” sash openings
  • Frameless, shatterproof, and UV-absorbing tempered glass

Tray support beams and holder

  • Support beams for less vibration and holder for easy drain pan cleaning

USB Port and Remote Modbus

  • USB port to access cabinet data log and BMS connectivity
  • Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices

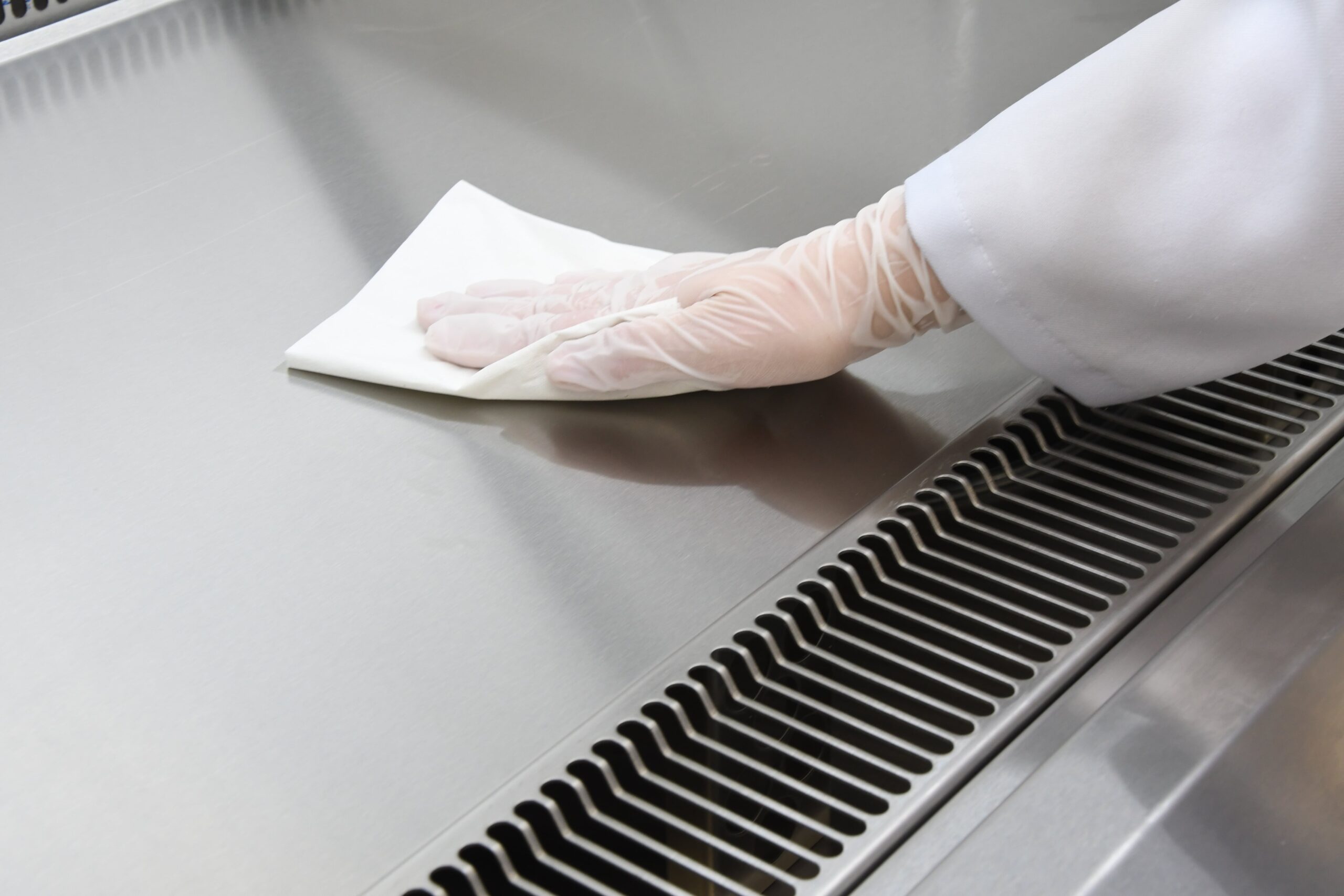

Cabinet Construction

  • Stainless steel side walls with side capture zones and negative pressure to optimize containment
  • Single-piece work tray, spill retaining and easy to clean

Green Product

  • Equipped with energy-efficient DC ECM that allows up to 70% energy savings vs AC motor
  • Extremely low energy consumption with 205 watts (4 ft unit)
  • Standby mode allows reduced power consumption by 80%

ULPA Filter

  • 10x filtration efficiency compared to the HEPA filter
  • Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5
  • Same 10 years filter life and replacement cost as HEPA filters

*99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA
*99.999% at MPPS, H14 as per EN 1822 EU

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
220-240 VAC, 50/60 Hz
2011666LA2-3S8-G4 8”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 3ft/0.9m, 8-inch opening
2011682LA2-3S8-G4 10”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 3ft/0.9m, 10-inch opening
2011714LA2-3S8-G4 12”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 3ft/0.9m, 12-inch opening
2011668LA2-4S8-G4 8”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 4ft/1.2m, 8-inch opening
2011684LA2-4S8-G4 10”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 4ft/1.2m, 10-inch opening
2011716LA2-4S8-G4 12”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 4ft/1.2m, 12-inch opening
2011670LA2-5S8-G4 8”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 5ft/1.5m, 8-inch opening
2011686LA2-5S8-G4 10”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 5ft/1.5m, 10-inch opening
2011718LA2-5S8-G4 12”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 5ft/1.5m, 12-inch opening
2011672LA2-6S8-G4 8”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 6ft/1.8m, 8-inch opening
2011688LA2-6S8-G4 10”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 6ft/1.8m, 10-inch opening
2011720LA2-6S8-G4 12”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 6ft/1.8m, 12-inch opening
110-130 VAC, 50/60 Hz
2011667LA2-3S9-G4 8”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 3ft/0.9m, 8-inch opening
2011683LA2-3S9-G4 10”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 3ft/0.9m, 10-inch opening
2011715LA2-3S9-G4 12”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 3ft/0.9m, 12-inch opening
2011669LA2-4S9-G4 8”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 4ft/1.2m, 8-inch opening
2011685LA2-4S9-G4 10”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 4ft/1.2m, 10-inch opening
2011717LA2-4S9-G4 12”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 4ft/1.2m, 12-inch opening
2011671LA2-5S9-G4 8”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 5ft/1.5m, 8-inch opening
2011687LA2-5S9-G4 10”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 5ft/1.5m, 10-inch opening
2011719LA2-5S9-G4 12”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 5ft/1.5m, 12-inch opening
2011673LA2-6S9-G4 8”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 6ft/1.8m, 8-inch opening
2011689LA2-6S9-G4 10”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 6ft/1.8m, 10-inch opening
2011721LA2-6S9-G4 12”Labculture® G4 Class II Type A2 Biological Safety Cabinet, 6ft/1.8m, 12-inch opening

Accessories

Item CodeModel CodeDescription
5170251UV-15A-LUV Lamp for 3ft Cabinets
5170255UV-30A-LUV Lamp for 4ft, 5ft, 6ft Cabinets
5170071EO-GFCIGFCI Outlet x 2
EO _Electrical Outlet (Direct Mounted) x 2
IV Bars
5170499IV-910IV Bar 910 mm
5170231IV-1215IV Bar 1215 mm
5170500IV-1520IV Bar 1520 mm
5170501IV-1825IV Bar 1825 mm
Support Stands
5131340STA-3A0Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 3ft cabinets
5131341STA-4A0Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 4ft cabinets
5131427STA-5A0Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 5ft cabinets
5131389STA-6A0Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 6ft cabinets
Service Fixtures
5170410SF-1G20European Style Service Fixture with 20mm Thread Length – Gas
5170457SF-1V20European Style Service Fixture with 20mm Thread Length – Vacuum
5170502SF-1A20European Style Service Fixture with 20mm Thread Length – Air
5170503SF-1N20European Style Service Fixture with 20mm Thread Length – Nitrogen
5170458SF-1W20European Style Service Fixture with 20mm Thread Length – Water
5170504SF-2U22American Style Service Fixture with 22mm Thread Length – Universal
Exhaust Collars
5171097ECO-F-LA2-3-G4Thimble Exhaust Collar for LA2-3-G4
5171098ECO-F-LA2-4-G4Thimble Exhaust Collar for LA2-4-G4
5171099ECO-F-LA2-5-G4Thimble Exhaust Collar for LA2-5-G4
5171100ECO-F-LA2-6-G4Thimble Exhaust Collar for LA2-6-G4
Exhaust Accessories
5170129ABBV-10PAnti-blowback Valve 10 inches
5170354ABBV-10SAnti-blowback Valve 10 inches (304 Stainless Steel)
5170104B2-DAMPERManual Volumetric Exhaust Damper
VHP Ports
5260329Decon cover with VHP IN PORT LA2-3-G4Decon cover with VHP IN PORT for LA2-3-G4
5260330Decon cover with VHP IN PORT LA2-4-G4Decon cover with VHP IN PORT for LA2-4-G4
5260331Decon cover with VHP IN PORT LA2-5-G4Decon cover with VHP IN PORT for LA2-5-G4
5260332Decon cover with VHP IN PORT LA2-6-G4Decon cover with VHP IN PORT for LA2-6-G4
5074983VHP-OUT TOP BOX LA2-3-G4VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for LA2-3-G4
5074984VHP-OUT TOP BOX LA2-4-G4VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for LA2-4-G4
5074985VHP-OUT TOP BOX LA2-5-G4VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for LA2-5-G4
5074986VHP-OUT TOP BOX LA2-6-G4VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for LA2-6-G4
5171111VHP-ECO/OUT LA2-3-G4VHP OUT PORT For Cabinet WITH Exhaust collar installed (1-inch diameter) for LA2-3-G4
5171112VHP-ECO/OUT LA2-4-G4VHP OUT PORT For Cabinet WITH Exhaust collar installed (1-inch diameter) for LA2-4-G4
5171113VHP-ECO/OUT LA2-5-G4VHP OUT PORT For Cabinet WITH Exhaust collar installed (1-inch diameter) for LA2-5-G4
5171114VHP-ECO/OUT LA2-6-G4VHP OUT PORT For Cabinet WITH Exhaust collar installed (1-inch diameter) for LA2-6-G4
Others
5170127MEWRESTArm Rest Padding
5170073FT-RESTFoot Rest
5142493DRAINVALVE KIT G4For LA2/AC2-NS/LB2/LR2/VA2/AR2 G4
9010179 IQ/OQ Protocol
