Precision cut-off machine Qcut 200 A

Quality assurance in materialography starts with an excellent cut.

For over 20 years, QATM‘s innovative precision cutting machines have been setting new standards and benchmarks in materialographic sample preparation. What makes our cutting machines so special? We design and develop machines that put precision and quality first. With the Qcut 200 as the follow-up model to the Brilliant 220, we have now further developed the popular model in the 4th generation. The Qcut 200 A remains unique on the market with its conceptual design of a large cutting machine in table format.

Product Advantages

Fully automatic precision axes with backlash free bearings
New cooling system with approx. 25% higher flow rate than comparable machines which reduces the cut-off wheel wear by up to 15%
Automatic cleaning function
New software functions for grinding applications
Simplified cut-off wheel change

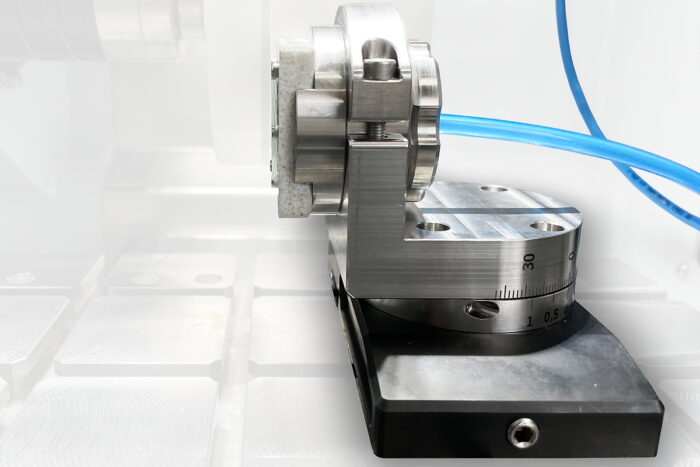

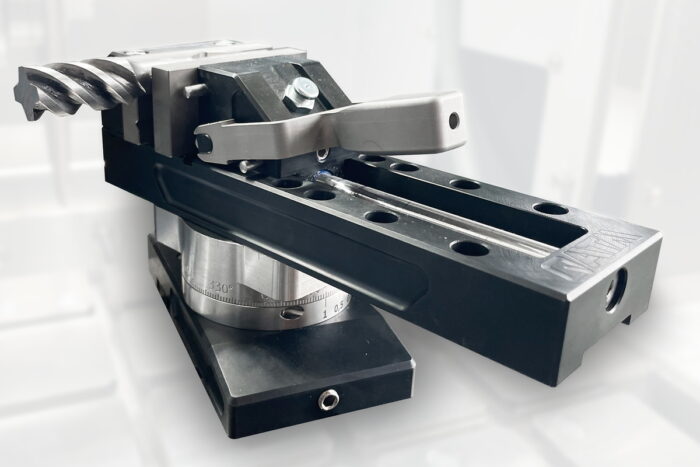

New modular adaptable turning device

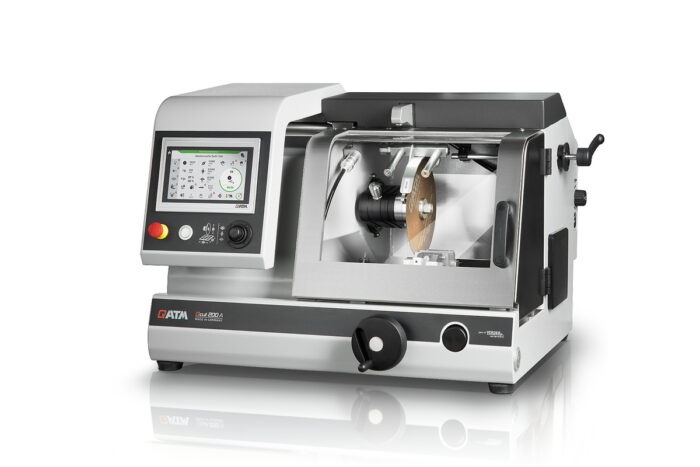

The Qcut 200 A is a precision cut-off machine with up to 3 automatic axes for use with cut-off wheels up to 203 mm / 8‘‘ in size.

The Qcut 200 A is a compact, precision cut-off machine that offers the highest possible flexibility and use of space, with up to three automatic axes (X, Y, Z) and numerous cutting functions. Thanks to its modular design, the Qcut 200 A can be optimally equipped with numerous options and suitable clamping tools.

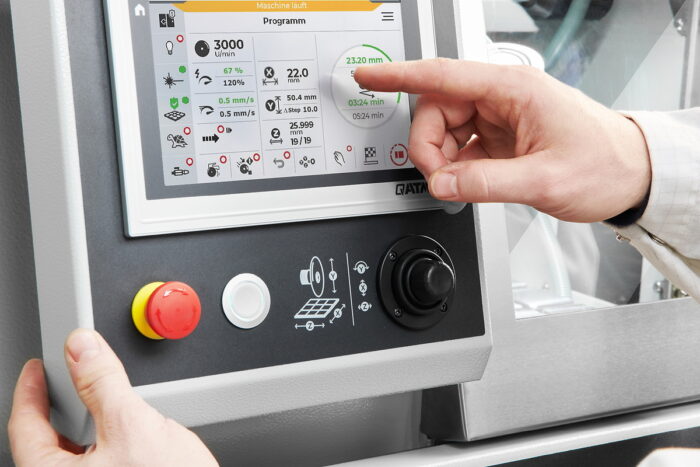

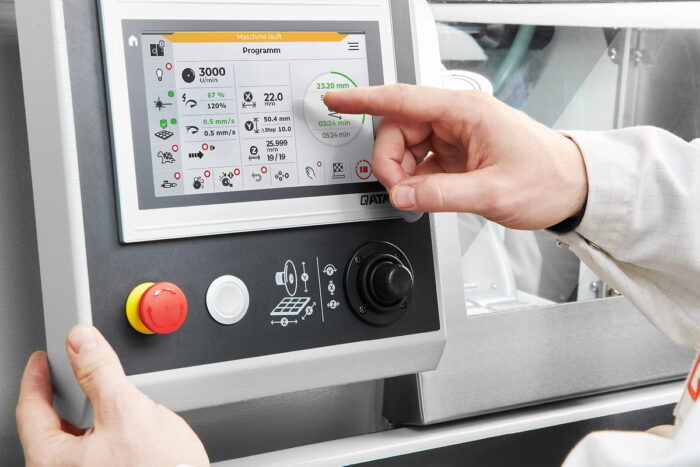

Intuitive and simple operation

The large 7“ touch display is ergonomically arranged and easy to operate via the user-friendly software. The joystick ensures comfortable movement of the automatic axes.

qatm1

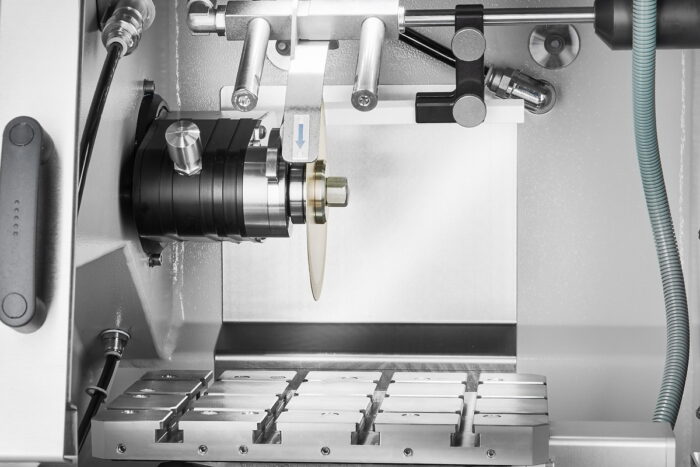

Flow monitoring

Via the optional flow monitoring, constant cooling can be ensured when cutting sensitive samples with long cutting processes. The cutting process is automatically interrupted when a critical threshold value is reached.

qatm2

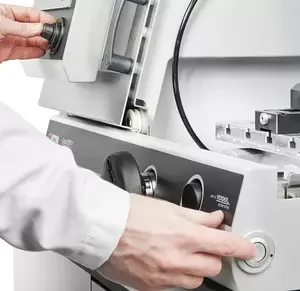

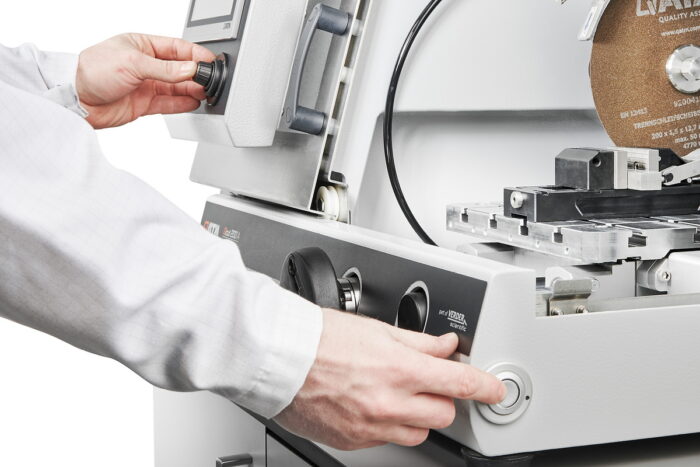

Highest demands of safety

Due to the enabling switch, the machine can only be positioned via the two-hand control when the door is open. This eliminates the risk of crushing for the machine operator.

qatm

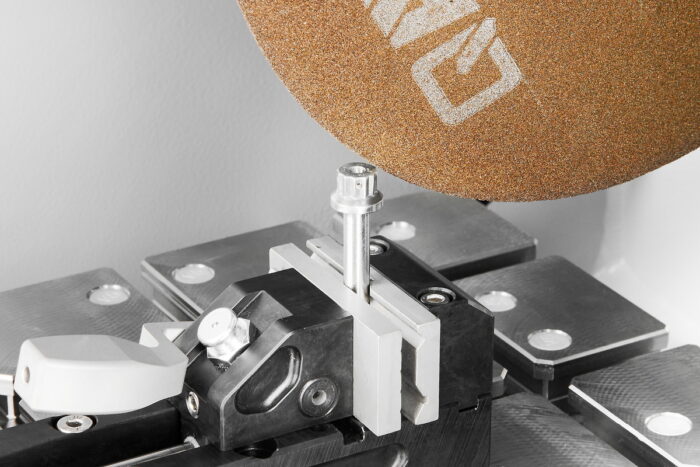

Intelligent component detection

In addition to the proven automatic component detection, the machine also has a new type of exit detection (auto-stop function). Thus, the start and end points of the cutting process are automatically detected and process times are shortened.

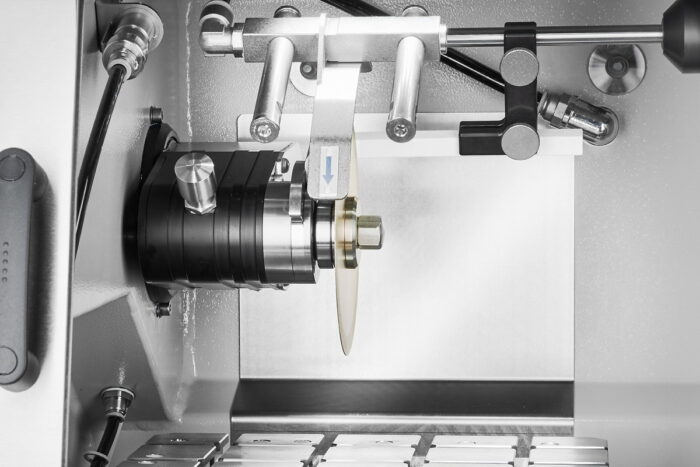

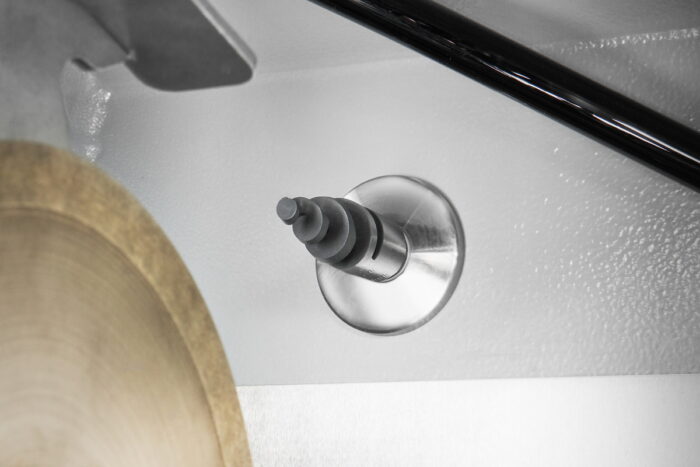

Automatic cleaning function

The machine is cleaned fully automatically via the spiral nozzles in the cutting chamber. Cleaning can be switched on individually and, if required, starts automatically after each cut-off. For a clear view, it can also be switched on during cut-off operation.

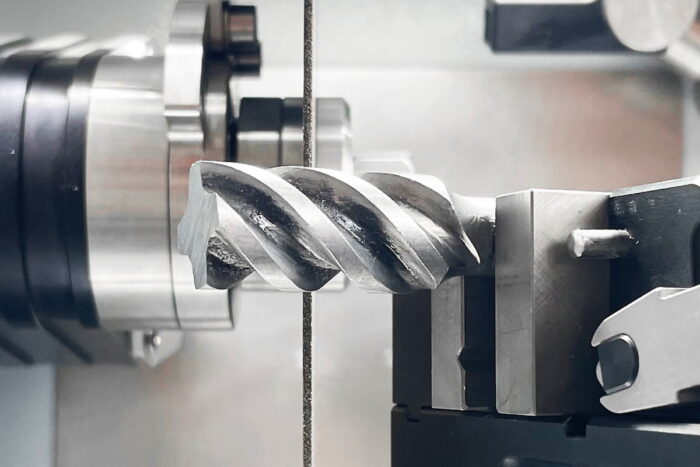

Extensive cutting programs

Depending on the geometry of the component, the travel or chop cut is used to minimize the contact area between the component and the cut-off wheel. The step cut functions separate the workpiece layer by layer and optimize the angle of action for a material friendly cut. They are therefore particularly suitable for solid material.
