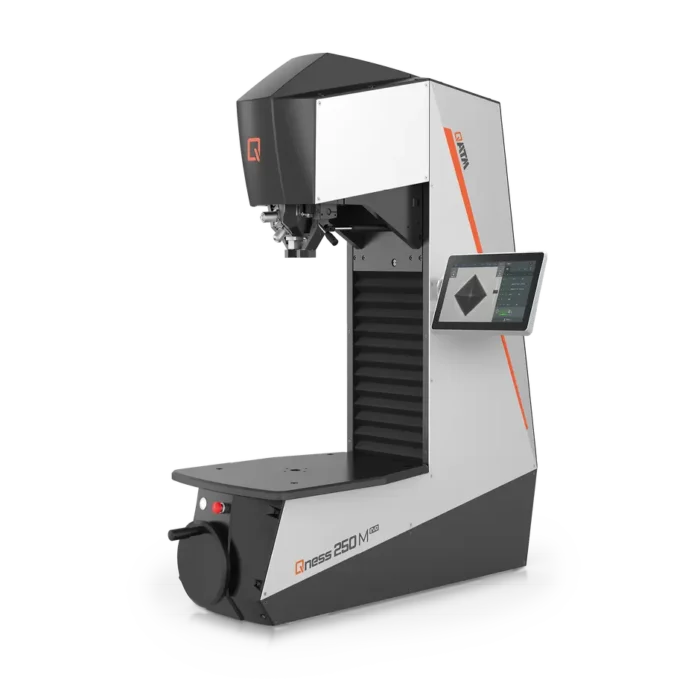

The fixed component support and the extra-large test table area of the “M” version allow hardness testing of even the largest components.
The test head is moved manually by turning the hand wheel on the front of the machine.

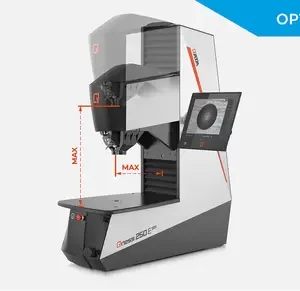

The bearing of the test head is designed for particularly smooth running and allows operation with minimum effort. The maximum test height is 510 mm.

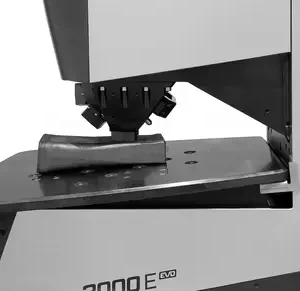

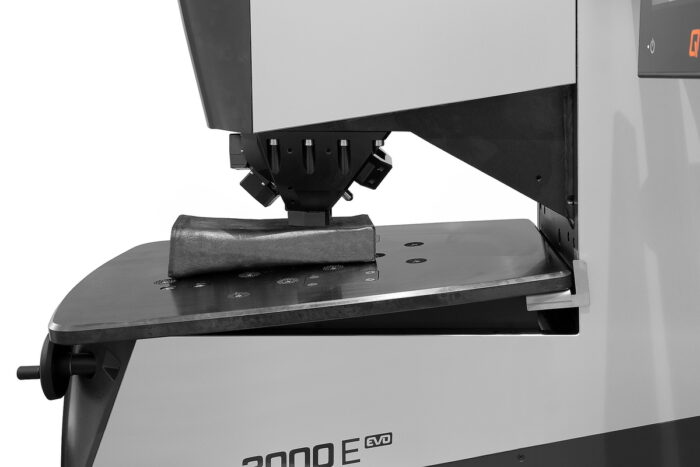

Unique operating convenience for large, awkwardly-shaped moulded and formed components and workpieces. The work table, optional with the M and E versions, can be tilted up to 5° – including built-in grips – no extra workpiece clamping necessary!

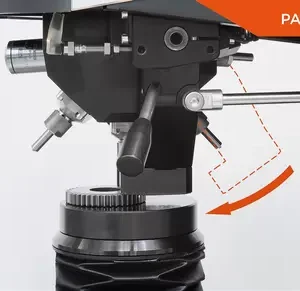

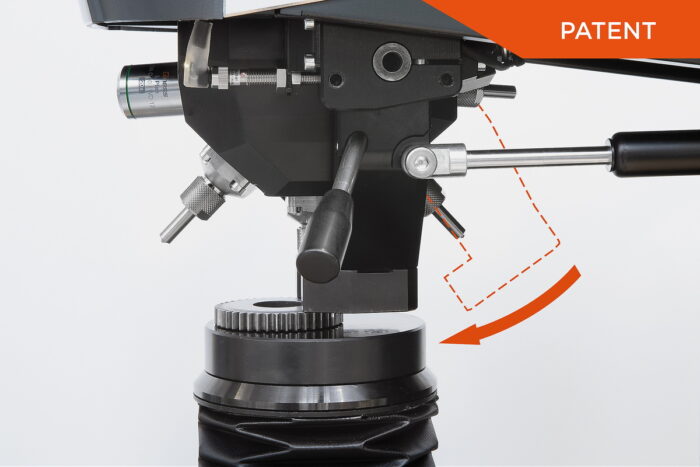

No long tool changeovers for inaccessible test positions. The downholder can be swivelled in and out via manual or motorized action, as required. Furthermore, the clamping elements can be changed easily and adapted to suit the customer‘s component.

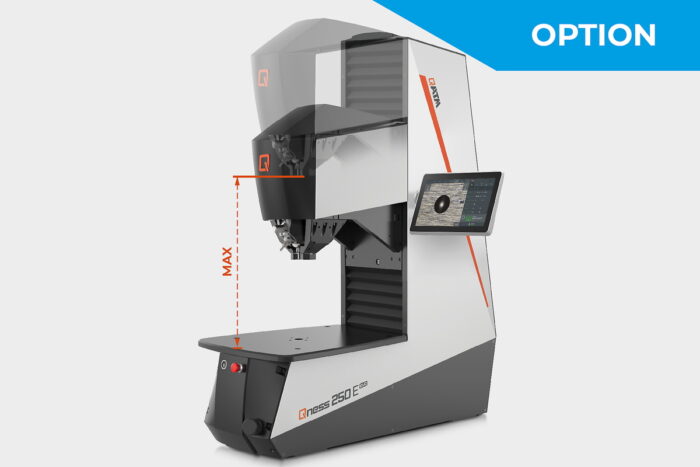

If the 510mm height of the test room is still not enough for especially large, bulky or difficult-to-clamp items, on request QATM can provide an even taller machine frame. The robust steel frame can be produced in customized dimensions.
| Supported test methods | Brinell, Vickers, Rockwell, Knoop, Plastics |
| Test force range | Qness 250 M EVO: 1 - 250 kg (9.81 - 2450 N) Qness 750 M EVO: 0.3 – 750 kg (2.94 – 7358 N) Qness 3000 M EVO: 0.3 - 3000 kg (2.94 - 29430 N) |
| Height adjustment | manual / handwheel |
| Test height / Throat depth | 510 mm / 320 mm |
| Test anvil | 584 x 450 mm |
| Max. work piece weight | "unlimited" |
| Weight of basic machine | 490 kg |
| Test sequence | fully automatic / electronic force control |
| Camera system / Image transfer | 5 MP Ethernet Industrial standard / up to 270FPS |
| Tool positions | 2 (Standard) oder 8 (Tool Changer) |
| Software | Qpix T2 (Option: Qpix CONTROL 2 M) |
| Operating system / Hard disk | Windows 10 IoT / 128 GB SSD |
| Data interfaces | 1x USB (Front) 4x USB, 2x RJ45 (Ethernet), 1x DisplayPort, 1x RS232, 1x HDMI |
| Lenses | XLED 1, XLED 2, XLED 5, 5x, 10x, 20x, 50x, 100x |
| Fields of view (depending on tool selection) | 0.113x 0.084 mm (100x) up to 7.98 x 5.97 mm (XLED 1) |
| Display | Capacitive 12“ Touch - Display |
| Power supply | 230~1/N/PE, 110~1/N/PE |
| Max. power consumption | ~ 480 W |
| Additional options | designer pedestal, collision protection, cross laser, test anvils, prisms, data connections, barcode/QR code reader etc. |
