Qness 60 A+ EVO

Request Quote
Categories: ,

The Vickers / Knoop / Brinell / Rockwell hardness tester series Qness 60 EVO takes micro hardness testing to a whole new level: The high-end laboratory devices of the latest generation combine the best of both worlds – hardness testing and microscopy without compromise and with maximum operating convenience. The revolutionary optical system with color camera provides reproducible and reliable results every time.

The innovative „EVO“ model of this Vickers / Knoop / Brinell / Rockwell hardness tester promises perfect automation and comes with a high-precision positioning control for all three axis systems with glass scales.

Flexible XYZ progressions for thousands of analysis points allow for exceptionally high throughput without operator intervention.

QATM micro hardness testers seamlessly integrate with the Verder Scientific IoT platform, featuring remote real-time monitoring, live notifications, effortless backups and automatic software updates.

Product Advantages

  • Wide test force range (0.25 g – 62.5 kg)
  • Ready to Test package, includes: ASTM+DAkkS certified Vickers diamond and 5x / 20x / 50x lenses
  • Dynamic test turret with 8-position tool changer
  • Qpix Control2 Software with innovative 3D operation
  • Modular activation of INSPECT microscopy features

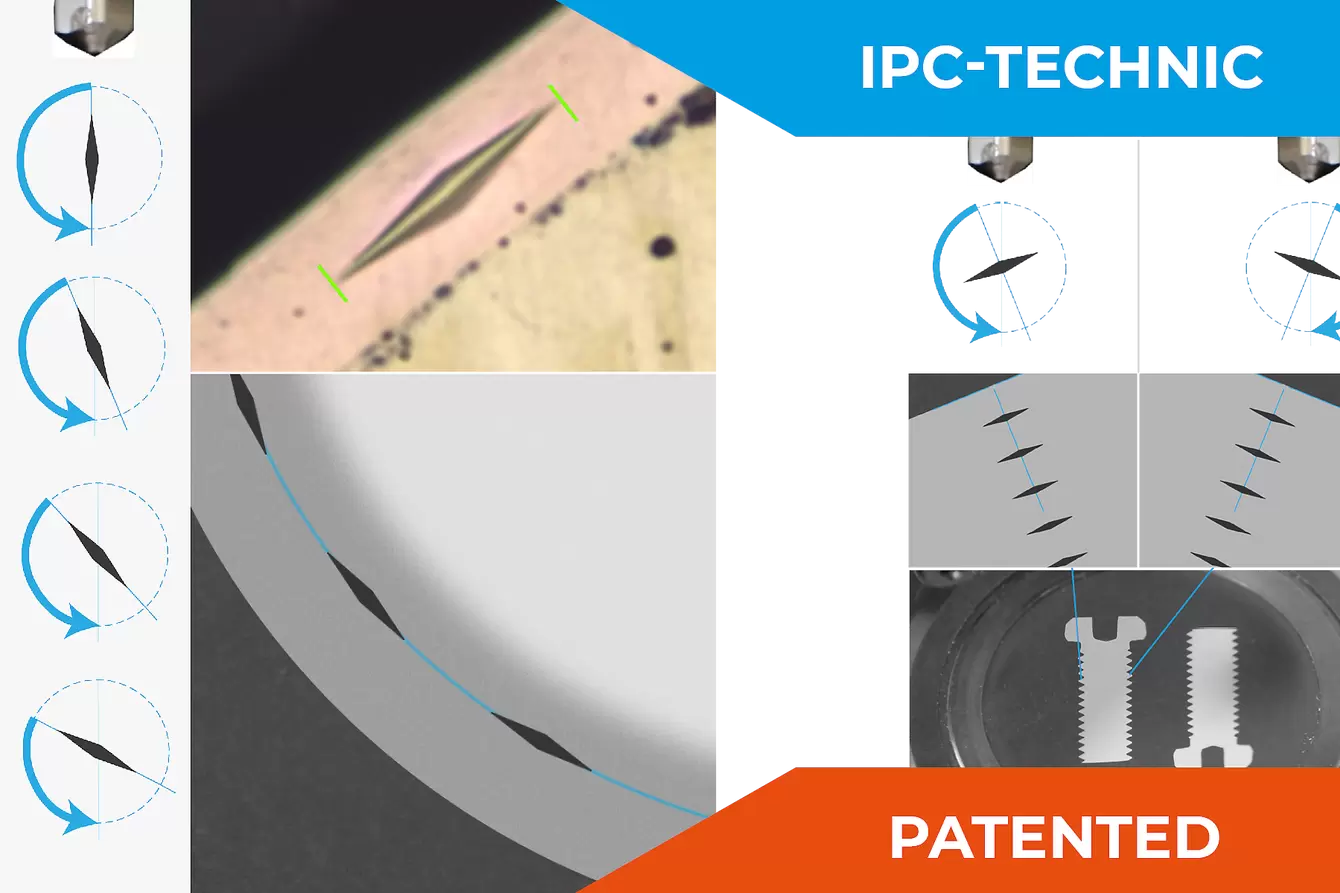

  • Rotatable indenter (patented IPC technology)
  • Fully automated, unmanned test and analysis cycles
  • XYZ axis control with direct optical path measuring system (table position accuracy of +/- 0,2 µm)
  • Variant A+ only: Sample image camera with automatic image acquisition (52 x 39 mm)

The platform for remote access to your devices

All QATM hardness testers with QpixControl2 and QpixT2 software seamlessly integrate into the Verder Scientific IoT platform, providing enhanced functionality and seamless connectivity.

  • Real-time Monitoring: Monitor your machinery in real time, from anywhere in the world. This data-driven approach empowers you to make informed decisions with ease.
  • Live Notifications: Be ahead of the curve with immediate alerts and updates. Real-time notifications ensure you stay informed about your equipment’s performance, leading to proactive maintenance.
  • Effortless Backup: Simplify your data protection. Whether you need to back up a single device or an entire fleet, our platform streamlines the process, minimizing downtime and data loss.
  • Automatic & Free Software Updates: Bid farewell to manual updates! Verder Scientific IoT ensures your customers’ machines are consistently equipped with the latest software, optimizing performance and reliability.

Revolutionary 3D operating conceptNext-generation software for your hardness tester

Intuitive, clearly organized and professional: Qpix Control2 is a pc-operated, next-generation software for Brinell / Knoop / Vickers / Rockwell hardness testers, developed based on customer feedback and input for maximum user-friendliness. The controlled test head benefits from automatic height adjustment and contactless exploration, complete integration of the sample holder, CAD compatibility with 3D imaging and a whole range of easily understood 3D control elements and views included in the software. It sets new standards in hardness testing.

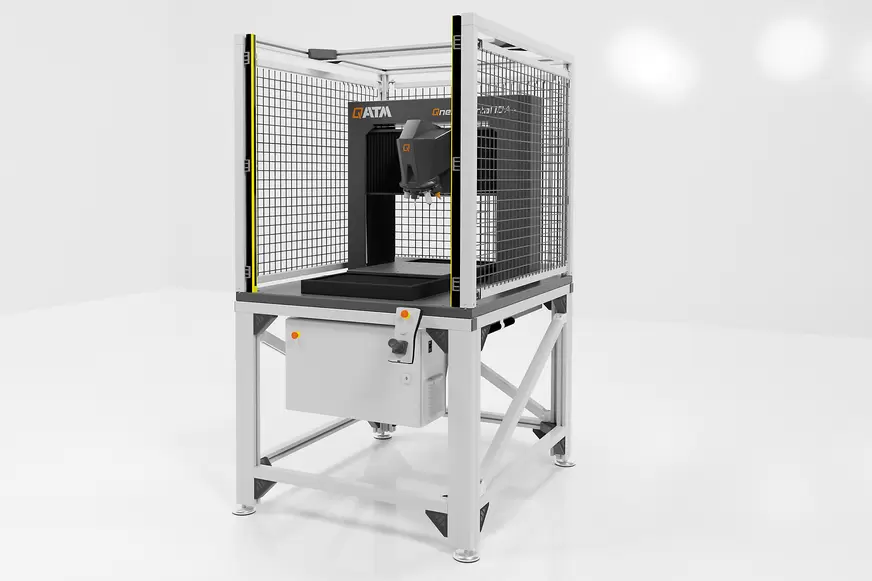

Qness 60 A+ Portal version



Qness 60 A+ Portal version


The Qness 60 EVO is a portal solution that offers unique movement flexibility, opening up new possibilities in micro and low load hardness testing.

Product Advantages

  • Test table dimensions/traverse path 500 x 500 x 300 mm
  • Front-loading position – ideal for heavy test pieces loaded by cranes

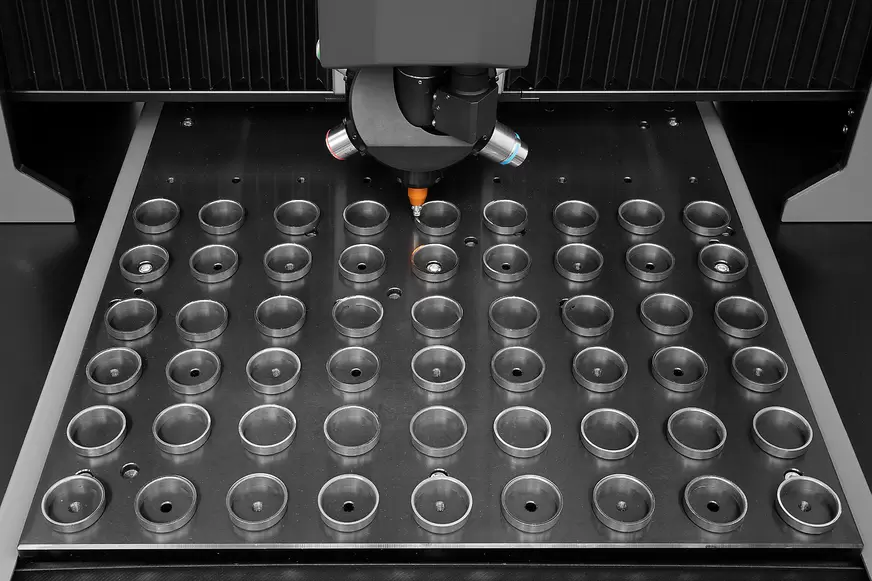

  • Accommodates up to 9 x 8-piece holders at once (72 pieces total) and safety housing with a CE light grid
  • Unrestricted operational convenience
Test force range 0.25 gf - 62.5 kgf (0.00245 - 612.92 N)
Test method Vickers, Knoop, Brinell, Rockwell
Test sequence Fully automated / electronic force application
Z-axis Dynamic, automated (CAS-Technic)
Z-axis travelling distance 150 mm (5.91“); Option: 260 mm (10.2“)
Throat depth 170 mm (6.69“)
Tool positions 8-fold motorized tool changer
max. 3 hardness testing modules, max. 7 lenses
Camera system 5 Mpixel - CMOS color, USB3.0
Optical system Upright microscope with Koehler lighting
Aperture diaphragm motorized
Lenses XLED 2x, 2.5x, 5x, 10x, 20x, 50x, 100x
Lens types Standard (Achromat) and High Quality (Semi-apochromat) for hardness testing and microscopy
XLED for optimised Brinell hardness testing
Field of view (acc. to equipment) 0.074x0.055 mm (100x) to 2.80x2.10 mm (XLED 2)
Sample image camera 5 Mpixel - CMOS color, USB3.0
52 x 39 mm (2.05 x 1.54“)
Test anvil / XY cross slide Automatic cross slide
Table size 150 x 120 mm (5.91 x 4.72“); Option 300 x 120 mm (11.8 x 4.72“)
Positioning accuracy +/- 0.2 μm
Traverse path at cross slide X 150, Y 150 mm (5.91 x 5.91“); Option: X 300 x Y 150 mm (11.8 x 5.91“)
Control elements Emergency stop, Start button, Joystick X/Y/Z
Software Qpix Control2
Max. workpiece weight 50 kg (110 lbs)
Weight of basic device 60 kg (132.3 lbs)
Included basic equipment Indenter Vickers ASTM + DAkkS; Lens HQ 5x, HQ 20x, HQ 50x
Interfaces 1 x USB 3.0
Power supply 100 – 240 V ~1/N/PE, 45-65 Hz
