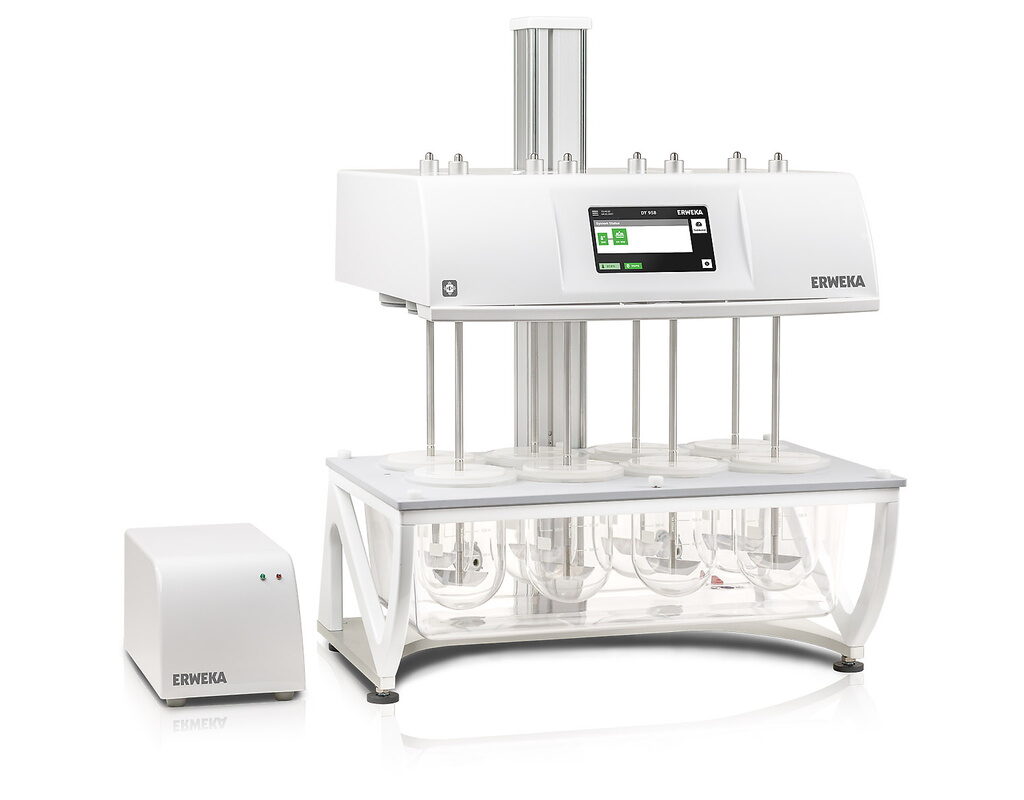

The ERWEKA DT 950 series is our first digital dissolution tester on the market, equipped with the latest technology for the requirements of today and the challenges of tomorrow.
With state-of-the-art embedded PC technology, the DT 950 is the first of its kind. The 7-inch touch display with a modern user interface keeps the user focused on the most important task the DT 950 has to fulfill – 100% USP / EP / JP compliant dissolution testing, without any distractions or errors. For this purpose, the ERWEKA TestAssist has been developed; an intelligent helper that guides the user step by step through the configuration of the dissolution test, provides assistance and ensures that only compliant parameters can be entered.
In addition to the modern user interface, the DT 950 is also absolutely future-proof. With our “Upgrade Your DT” program, the system can be upgraded at a later date – e.g. from 6 to 8 test stations, with an automatic tablet drop or an automatic sampling station, if the instrument is to be upgraded to a dissolution system at a later date. It is also easy to switch from low-head to high-head mode at any time. Thanks to the advanced embedded system, software functions for the touch display can also be added later.
With all these innovations, however, ERWEKA hasn’t lost sight of the most important thing: the DT 950 series is 100% USP / EP compliant.
Digital Dissolution Tester DT 950 Series Key Features
Digital Embedded Technology |
Modern User Interface With TestAssist |
Upgrade Your DT |
|---|---|---|
| The digital embedded PC technology offers all the advantages and unlimited possibilities of modern software programming and makes the DT 950 more future-proof than ever before. In the first step, this means simple network printing and a modern user interface.
In the future, further functions will be added to the DT 950 series, allowing it to constantly adapt to user requirements and future Industry 4.0 developments. |
The digital embedded PC technology offers all the advantages and unlimited possibilities of modern software programming and makes the DT 950 more future-proof than ever before. In the first step, this means simple network printing and a modern user interface.
In the future, further functions will be added to the DT 950 series, allowing it to constantly adapt to user requirements and future Industry 4.0 developments. |
The newly developed hardware of the DT 950 series enables a step-by-step upgrade from a manual dissolution tester to a semi-automatic online, offline or on- / offline system.
|
Network Printing Explained LAN Network & USB Printing Capabilities
The technology platform of the DT 950 / DT 9510 enables the convenient use of network printers from many different manufacturers. Thanks to a practical printer setup, the LAN-connected DT 950 / 9510 finds all printers in the network. Simply select the correct driver from a list and the DT 950 / DT 9510 reliably prints via the selected printer.
The DT 950 / DT 9510 can currently print on network and USB printers from Hewlett-Packard, Kyocera and OKI. Both systems also support USB printers from Brother. Further printers will follow shortly.

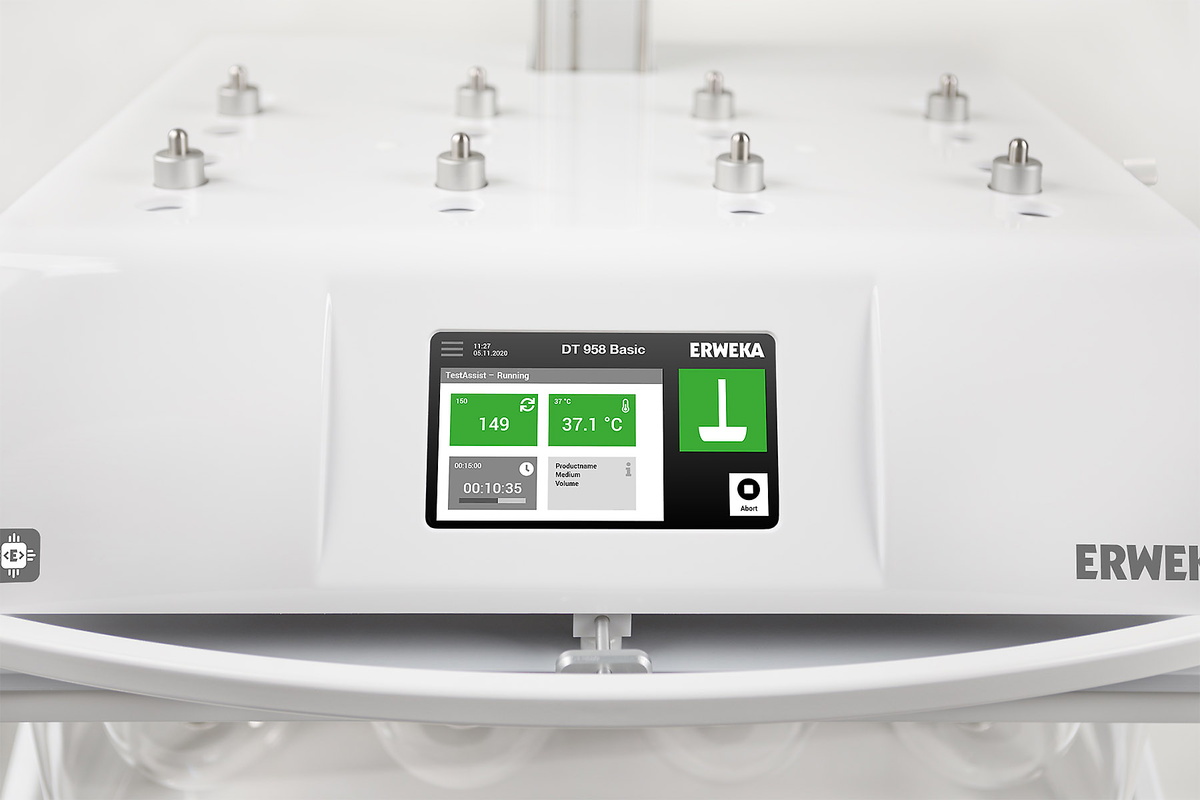

DT 950 Series Touch Interface 1-2-Test!

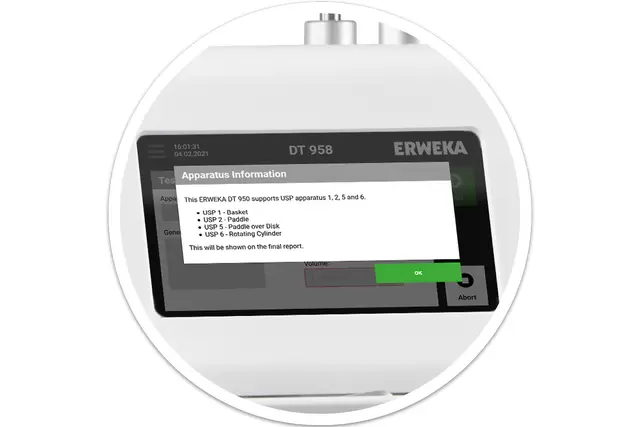

The touch interface of the DT 950 centers the user’s attention on the most important task to be performed with the DT 950: dissolution testing. The central component is the TestAssist, an intelligent assistant with real-time feasibility checks, which provides support and ensures that the parameters entered conform to USP / EP / JP. This makes dissolution testing easy and safe.

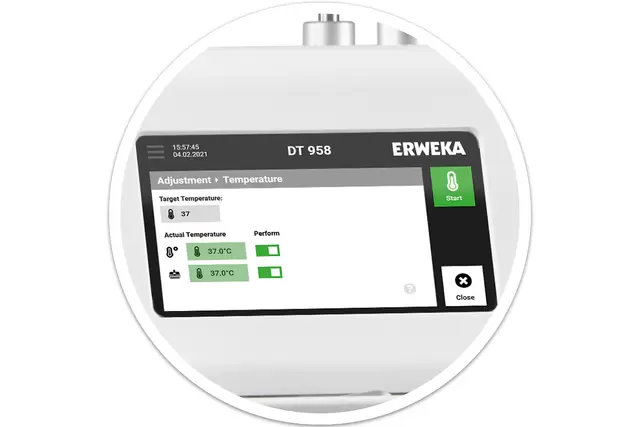

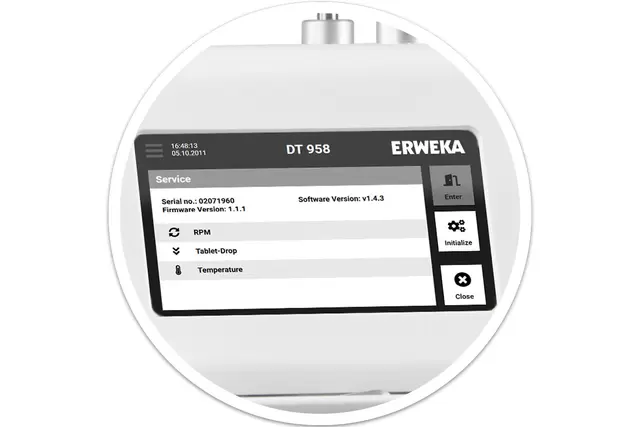

In addition to the TestAssist, all other features, such as the control panel, the qualification menu or the service menu, are designed to connect users and hardware as quickly as possible.

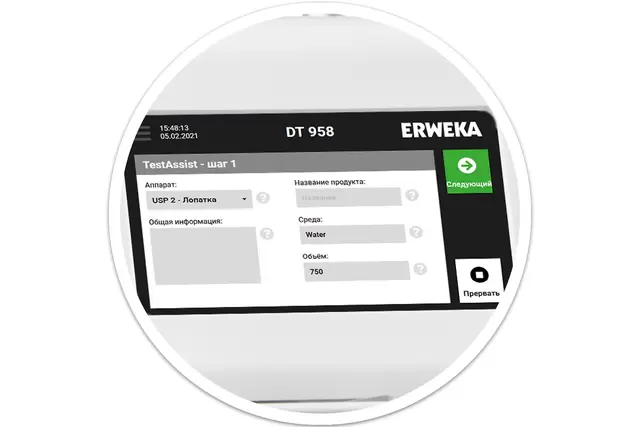

Dissolution Testing in 3 Simple Steps TestAssist
TestAssist – Dissolution Testing Easier Than Ever
The touch interface of the DT 950 centers the user’s attention on the most important task to be performed with the DT 950: dissolution testing. The central component is the TestAssist, an intelligent assistant with real-time feasibility checks, which provides support and ensures that the parameters entered conform to USP / EP / JP. This makes dissolution testing easy and safe.
In addition to the TestAssist, all other features, such as the control panel, the qualification menu or the service menu, are designed to connect users and hardware as quickly as possible.
Digital Dissolution Tester DT 950 Series Unlimited Upgradeability – At Any Time
Our world is constantly changing – that’s why ERWEKA has developed a dissolution tester that is already well equipped for the challenges of tomorrow. After the initial purchase, the DT 950 can also be upgraded further – including from 6 to 7 or 8 test stations, with an automatic tablet drop or an automatic sampling station. The high degree of modularity makes it possible to quickly turn a 6-station stand-alone DT 956, for example, into the heart of a complete dissolution HPLC On-/ Offline System with 8 test stations and Disso.NET 4 software. This means that the DT 950 remains flexible throughout its entire life cycle. After all, who knows what challenges await in a few years’ time?
DT 950 Series Base Device
- Extension to up to 8 test stations

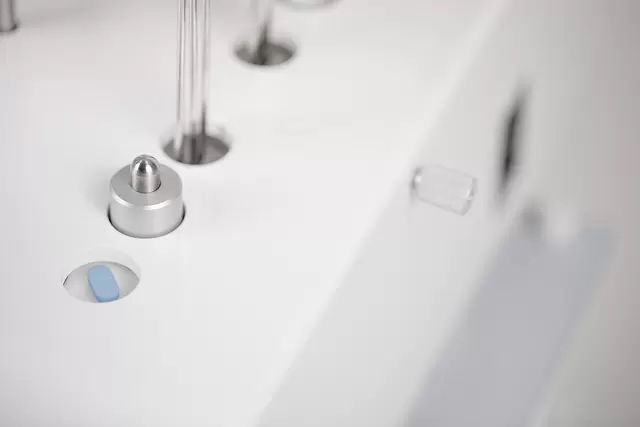

- Automatic tablet drop
- USP methods 1, 2, 5 and 6
- Automatic sampling station (low-head or high-head)
- 100% USP / EP / JP conform dissolution testing
- User management, method memory & temperature measurement for each vessel, FTP data export (e.g. for LIMS), updateable via USB
Dissolution Offline System
- Automatic sample collection with our FRL sample collector
- IPC or PVP pump
- Control via PC with Disso.NET 4, Audit Trail and MySQL database
- 21 CFR part 11 compliant
- 100% USP / EP / JP conform dissolution testing
- User management, method memory & temperature measurement for each vessel, FTP data export (e.g. for LIMS), updateable via USB
Dissolution Online System
- Automatic UV/Vis analysis with spectrophotometer
- Control via PC with Disso.NET 4, Audit Trail and MySQL database
- IPC or PVP pump
- 21 CFR part 11 compliant
- Direct data evaluation in the software
- 100% USP/EP/JP-konforme Dissolution-Tests
- Benutzerverwaltung, Methodenspeicher & Temperaturmessung für jedes Gefäß, FTP-Datenexport (z.B. für LIMS), updatefähig über USB
Dissolution On-/ Offline System
- Dissolution HPLC On-/Offline System or Dissolution On-/Offline System with UV/Vis
- Control via PC with Disso.NET 4, Audit Trail and SQL database
- 21 CFR part 11 compliant
- Automatic HPLC or UV-Vis analysis with sample collector
- With HPLC: Automatic hand-off of the sample to the HPLC analysis
- 100% USP/EP/JP-konforme Dissolution-Tests
- Benutzerverwaltung, Methodenspeicher & Temperaturmessung für jedes Gefäß, FTP-Datenexport (z.B. für LIMS), updatefähig über USB
Not Only on a Large Scale, but Also on a Smaller One Further Improved
Flexible Device for Numerous Applications Product Highlights
Tailored to Your Needs Options
Digital Dissolution Tester DT 950 Series Technical Data
| Weight | 42 kg |
| Dimensions (H x W x D) | 850 x 650 x 650 mm |
| Voltage | 115/230 V; 50/60 Hz |
| Speed | 20-250 U/min |
| Vessel volume | 400 ml / 1000 ml / 2000 ml |
| Interfaces | 1x RS-232, 2x USB, 2x Ethernet/RJ45 |
| Test stations (DT 956) | 6 in 2 rows |
| Test stations (DT 957) | 7 in 2 rows |
| Test stations (DT 958) | 8 in 2 rows |
| USP methods | USP 1 / USP 2 / USP 5 / USP 6 |
| Fuses | 2 A |
| Protection class | I/EN 61140 |
| Protection type | IP 21/IEC 529 |
| Operation | Touchscreen 7″, 800×480 Pixel |
| Sampling positions | High-head / Low-head / Cleaning mode |
| Ambient temperature during operation | +10 °C to +30 °C (ambient temperature min. -5 °C below set temperature) |
| Storage & Transport temp. | +5 °C to +40 °C |
| Relative humidity | 25-80 % non condensing |
