DT 9510 Series

The ERWEKA DT 9510 series is the “big brother” of the DT 950 series of digital dissolution testers.

Controlled by the same integrated PC, all components of the DT 9510 are designed for reliable, high-volume digital dissolution testing: The test stations (up to 14) are driven by a single, powerful motor and the large water bath keeps the temperature stable due to the thermal inertia of the water. This ensures that parallel testing of two batches of samples can be performed under exactly the same conditions, making the comparison between the two as reliable as possible and 100% USP / EP compliant.

With the new optional AirLift system, the dissolution head of the DT 9510 can be raised and lowered by simply pressing two buttons. In addition, the DT 9510 series has the same features as its smaller sibling – digital dissolution testing is done using the latest version of the TestAssist testing tool, and samples can be automatically dropped into the vessel.



100% USP / EP / JP Compliant	USP Methods 1, 2, 5 and 6
Intuitive Touch Interface	Upgradeable at Any Time





Digital Dissolution Tester DT 9510 Series Key Features





Digital Embedded Technology	Modern User Interface With TestAssist
The digital embedded PC technology offers all the advantages and unlimited possibilities of modern software programming and makes both the DT 950 and DT 9510 more future-proof than ever before. In the first step, this means simple network printing and a modern user interface. In the future, further functions will be added to the DT 950 and DT 9510 series, allowing it to constantly adapt to user requirements and future Industry 4.0 developments.	The modern user interface keeps the user focused on the most important function of the DT 950 and DT 9510: the dissolution test. TestAssist, the intelligent guide for dissolution tests DirectHelp, direct on-screen help at the touch of a button Multilingual operation in English, French, Spanish, Russian, Chinese and German
Upgrade Your DT	AirLift System
The hardware of the DT 950 and DT 9510 series enables a step-by-step upgrade from a manual dissolution tester to a semi-automatic online, offline or on-/ offline system. Upgrade to up to 14 test stations Optional, automatic tablet drop ASS-9 automatic sampling station	With the DT 9510, ERWEKA is introducing the AirLift system. The AirLift makes it easy to raise and lower the large dissolution head of the DT 9510. In addition to raising and lowering the head, the AirLift is also extremely safe to use thanks to its two-hand safety system. With one hand, the operator presses one of the two buttons on the right-hand side to select either the downward or upward movement. With the other hand, the operator confirms the selection by pulling the unlocking lever directly in front of the touch screen. As soon as one of the two buttons is released, the AirLift stops immediately. This is highly intuitive without compromising the operator’s safety.

























• Extension to up to 8 test stations
• Automatic tablet drop
• USP methods 1, 2, 5 and 6
• Automatic sampling station (low-head or high-head)
• 100% USP / EP / JP conform dissolution testing
• User management, method memory & temperature measurement for each vessel, FTP data export (e.g. for LIMS), updateable via USB











• Automatic sample collection with our FRL sample collector
• IPC or PVP pump

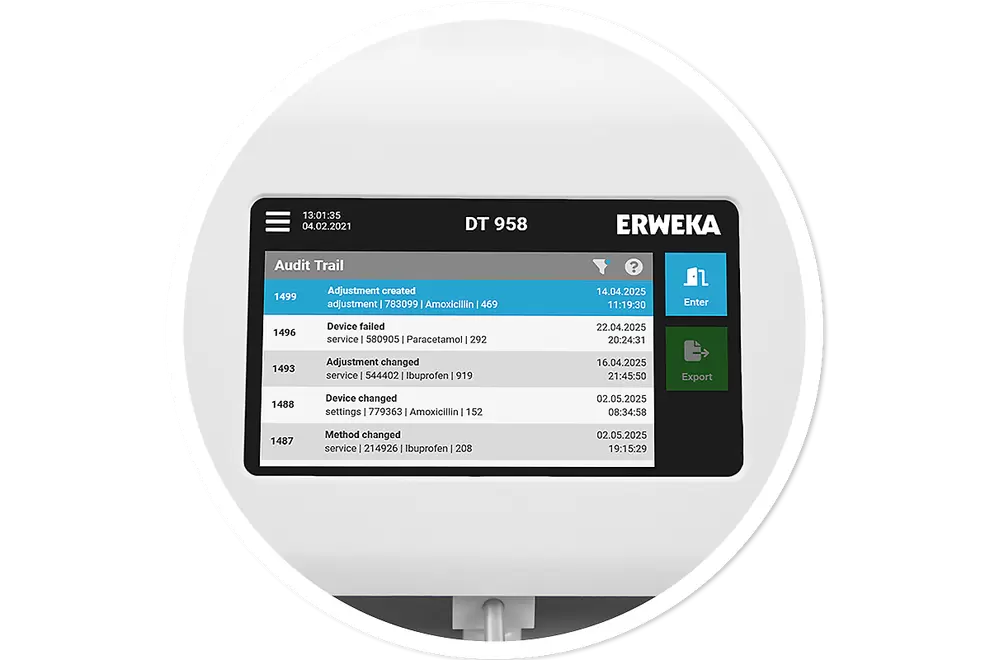

• Control via PC with Disso.NET 4, Audit Trail and MySQL database
• 21 CFR part 11 compliant
• 100% USP / EP / JP conform dissolution testing
• User management, method memory & temperature measurement for each vessel, FTP data export (e.g. for LIMS), updateable via USB









• Automatic UV/Vis analysis with spectrophotometer
• Control via PC with Disso.NET 4, Audit Trail and MySQL database
• IPC or PVP pump
• 21 CFR part 11 compliant
• Direct data evaluation in the software
• 100% USP/EP/JP-konforme Dissolution-Tests
• Benutzerverwaltung, Methodenspeicher & Temperaturmessung für jedes Gefäß, FTP-Datenexport (z.B. für LIMS), updatefähig über USB









• Dissolution HPLC On-/Offline System or Dissolution On-/Offline System with UV/Vis
• Control via PC with Disso.NET 4, Audit Trail and SQL database
• 21 CFR part 11 compliant
• Automatic HPLC or UV-Vis analysis with sample collector
• With HPLC: Automatic hand-off of the sample to the HPLC analysis
• 100% USP / EP / JP conform dissolution testing
• User management, method memory & temperature measurement for each vessel, FTP data export (e.g. for LIMS), updateable via USB















Flexible Device for Numerous Applications Product Highlights

100% USP / EP / JP Compliant Like all ERWEKA products, the DT 950 / DT 9510 series is 100% USP / EP / JP compliant.	High-Head & Low-Head Mode For easy access to the vessels and simple manual sampling	USP Methods 1, 2, 5 and 6 Use of a variety of attachments for different USP methods due to the standardized shaft design
Easy Cleaning Easy cleaning of the waterbath and set-up area without requalification – bath can be completely emptied with the new water outlet	External Heater The external flow-through heater reduces the influence of external vibrations and ensures a constant temperature	Simple Operation 7-Inch Touch Display









Technical Data

Weight	110 kg
Dimensions (H x W x D)	850 x 1062 x 650 mm
Voltage	115/230 V; 50/60 Hz
Speed	20-250 U/min
Vessel volume	400 ml / 1000 ml / 2000 ml
Interfaces	1x RS-232, 2x USB, 2x Ethernet/RJ45
Test stations (DT 9512)	12 in 2 rows
Test stations (DT 9513)	13 in 2 rows
Test stations (DT 9514)	14 in 2 rows
USP methods	USP 1 / USP 2 / USP 5 / USP 6
Fuses	2 A
Protection class	I/EN 61140
Protection type	IP 21/IEC 529
Operation	Touchscreen 7″, 800×480 Pixel
Sampling positions	High-head / Low-head / Cleaning mode
Ambient temperature during operation	+10 °C to +30 °C (ambient temperature min. -5 °C below set temperature)
Storage & Transport temp.	+5 °C to +40 °C
Relative humidity	25-80 % non condensing
