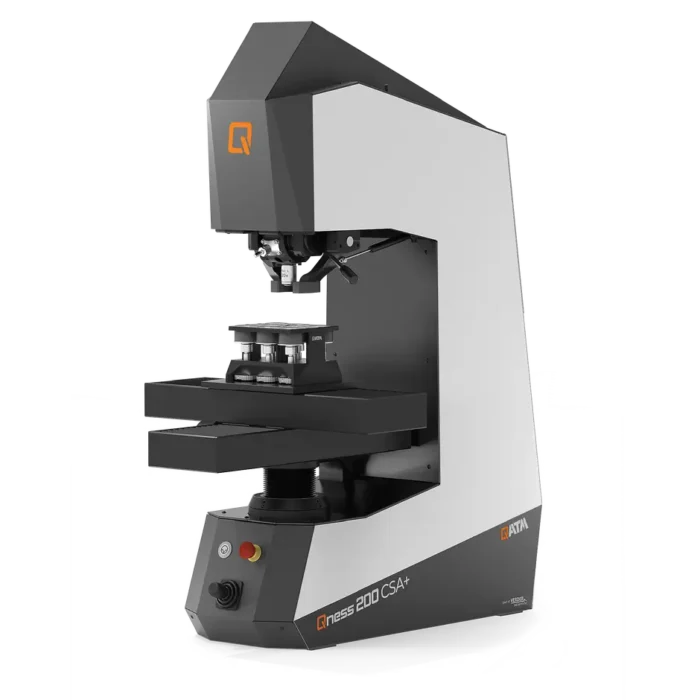

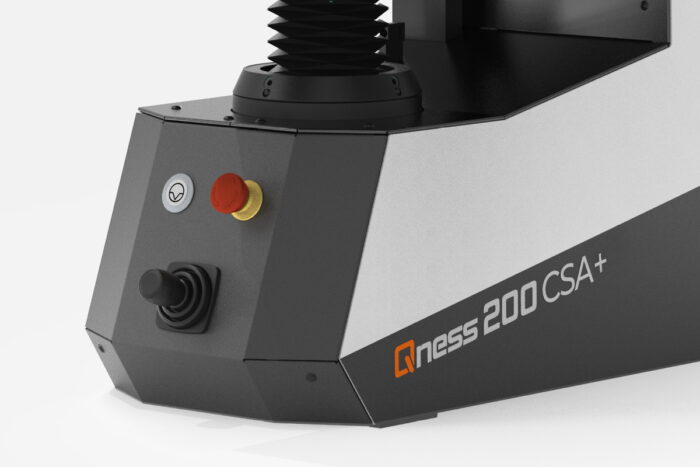

Qness 200 CSA+

Highly automated, precise and reliable

During the development of the Qness 200 units, particular attention was paid to the following things: Maximum performance with minimum effort.

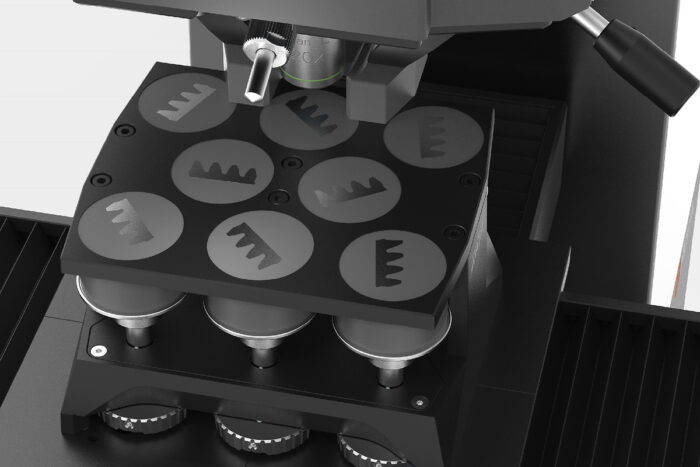

A fully automatic XY slide will guarantee high precision hardness testing. It is ideal for fully automatic repeated tests and progression tests. Its optical system with color camera provides reproducible and reliable results every time.

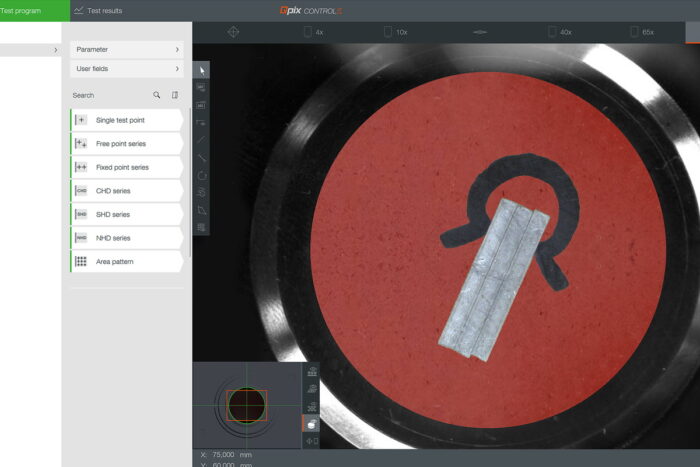

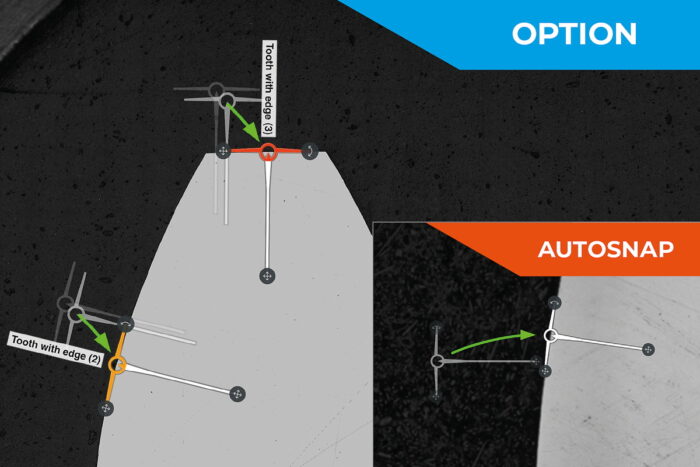

Operation via an external PC system is carried out based on the user-friendly Qpix Control 2 hardness testing software, providing benefits such as automatic height adjustment, contactless exploration, or CAD compatibility.

Product Advantages

Large test force range (0,5kg – 187,5kg)
Automatic 3-axis control
5-position tool changer
Robust, welded steel frame
Test table 180 x 200 mm

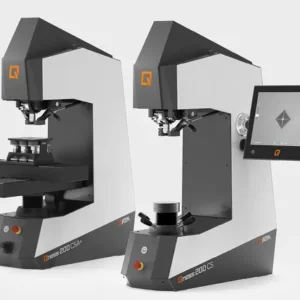

Compact Design - Latest technology

Test force ranges 0.5 kg to 187.5 kg
Two machine versions to serve all applications and test piece sizes
Direct depth measurement system with a resolution of 0.05 μm
Robust, welded steel frame and covers made of sheet steel

Compact Design - Latest technology

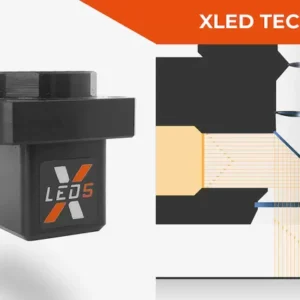

Xled Brinell Evaluation Lenses

XLED illumination modules revolutionize the analysis of Brinell indentations. Due to beading on commercially available lenses, soft Brinell indentations in particular can be subject to imprecise gauging results. In contrast, XLED lenses guarantee precise and repeatable measurements, regardless of material type and hardness, due to direct and wide-extension illumination.

Xled Brinell Evaluation Lenses

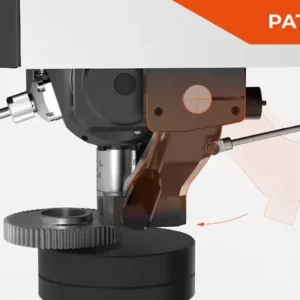

Swiveling Downholder

No long tool changeovers for inaccessible test positions. The downholder can be swiveled in and out via manual action. Furthermore, the clamping elements can be changed easily and adapted to suit the customer’s component.

Swiveling Downholder

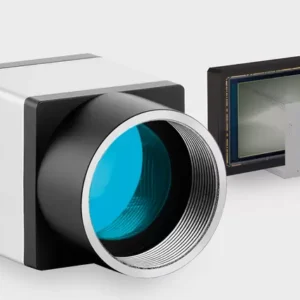

Ethernet industrial color camera

High-quality CMOS 5-megapixel cameras with Ethernet data transfer define the current industrial standard. Unlike other camera systems, a far higher transmission stability is possible here. Additionally, the PC and hardness testing device can be set up remotely at great distances from each other. This is ideal in manufacturing environments in which the control infrastructure is installed in external switch cabinets.

Ethernet industrial color camera

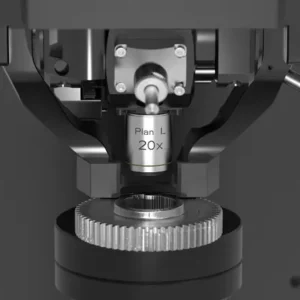

Optimized test head design

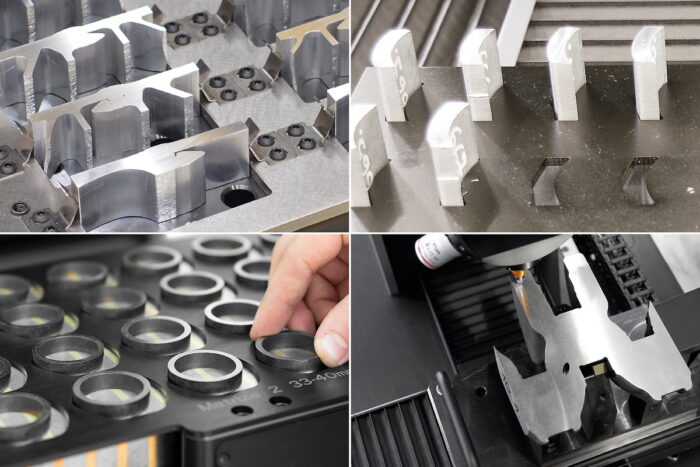

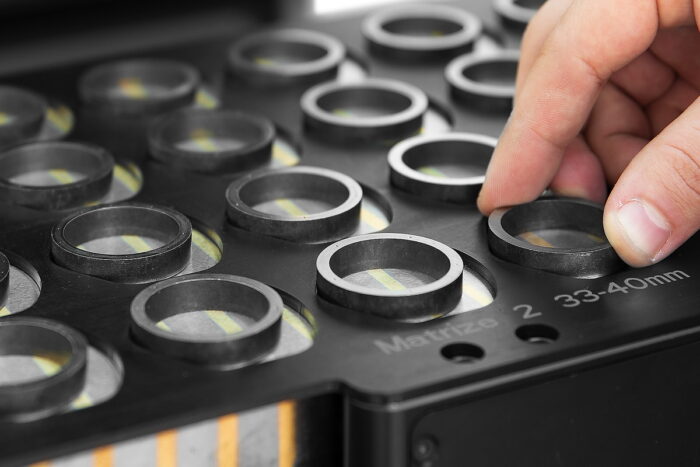

A range of clamping and holding elements can be configured to suit tooling requirements. The optional transparent collision guard can protect tools on the device from damage while ensuring an unrestricted view of the test cell interior.

Optimized test head design

Test force range	0.5 - 187.5 kg (4.9 - 1839 N)
Tool positions	5 (toolchanger)
Software	Qpix Control 2
Height adjustment	motorized
Test height	140 mm
Throat depth	238 mm
Test table	180 x 200 mm
Traverse path	X 220 / Y 220 mm
Max. workpiece weight	"unlimited"
Weight of basic device	174 kg
Test sequence	fully automated / electronic force application
Camera system / Image transfer	5 MP ethernet industrial standard
Operating system / Hard drive	Windows 10 IoT / 128 GB SSD
Ports	1x USB (Front) 4x USB, 2x RJ45 (Ethernet), 1x DisplayPort, 1x RS232, 1x HDMI
Lenses	XLED 2, XLED 5, 5x, 10x, 20x, 50x, 100x
Field of view (acc. to equip)	0.113 x 0.084 mm (100x) to 4.24 x 3.18 mm (XLED2)
Additional options	QATM designer pedestal, collision protection, cross laser, test anvils,prisms, data connections, barcode/QR code reader etc.
